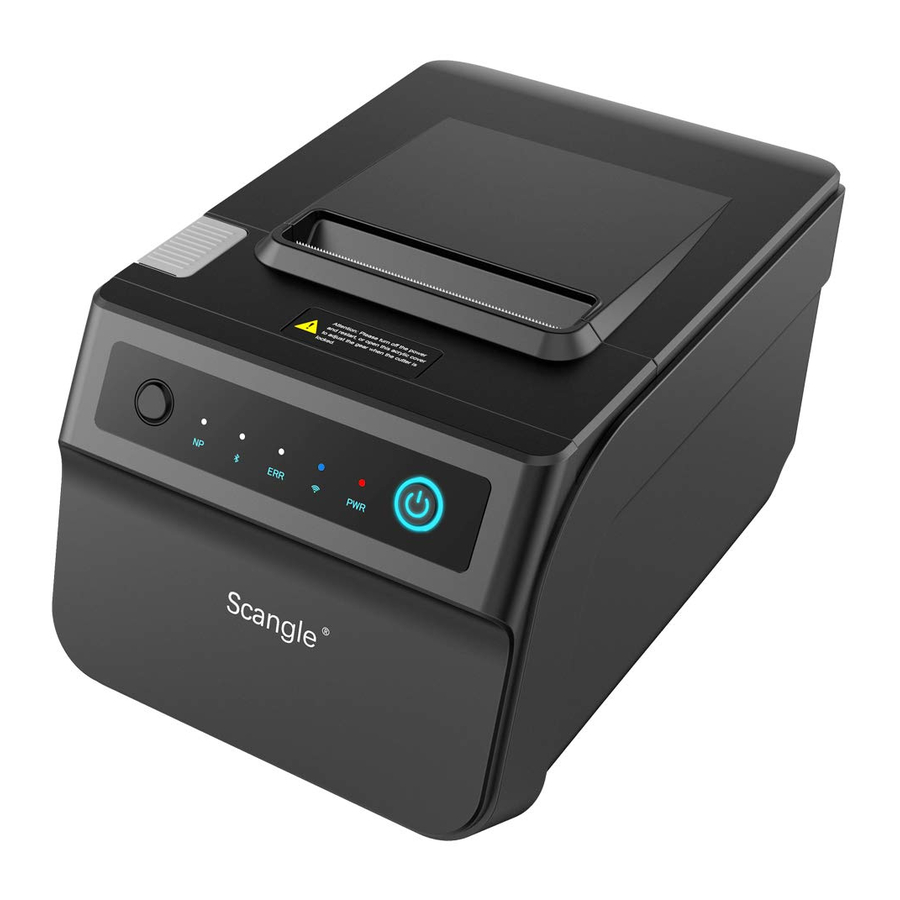

Thermal Receipt Printer
Instruction Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Scangle SGT-88IV
- Page 1 Thermal Receipt Printer Instruction Manual Scangle T: +86-(0)755-23113053 Whatsapp: +86-18688707296 F: +86-(0)755-29485274 Skype: scanglepos Mobile: +86-18688707296 Web: www.scangle.com E-mail: sales@scangle.com Web: www.scangle-pos.com WeChat Number: pos1261095770 Factory Address: 3F, Building A Shenli Industrial Park, Qinghua Road, Longhua District, Shenzhen City, China. 518109...
-
Page 2: Table Of Contents
....................19 Windows CE SDK, Windows 10, Windows 7, Windows 8Windows XP/ VISTA/ 7/ 8/ Driver Chapter 9 How to test the communication ports with SGT-88IV Driver ..........19 8.1/10 Linux, Android OS and Mac Chapter 10 Test with the communication ports for print test page ............20... -
Page 3: Chapter 2. Printer Setup And Operation
1. Load the paper roll as shown in the image below: SGT-88IV features NV bitmap download Flash 576 pixels. SGT-88IV Printer support auto-cut the extra paper after you load paper. ***Read the manual carefully before usage. Chapter 2. Printer Setup and Operating 2.1 Contents in the Package... -
Page 4: Connect Cable
2.3.2 Connect to Cash Drawer Connect cash drawer cable to cash drawer port which is behind the printer 2.3 Connect Cable SGT-88IV printer comes with the USB cable in addition to the selected interface cable upon purchasing. Cash Drawer Use 12-24V/1A power supply cash drawer,which is also compatible with printer.The improper cash drawer will cause... -
Page 5: Chapter 3. Printer Management
3.3 Printer Maintenance POWER BUTTON Maintaining the printer regularly is a necessary step to sustain the printer quality as the residual paper wool got collected through the thermal slice. Power light-Light appears when connected to the power supply. Maintaining the Printer with the following steps: 1. -
Page 6: Chapter 4 Sgt-88Iv Driver Setup Guide
Then click “Next” ( see the following picture). Click “Ok”, and the Printing Drive is installed on your computer. SGT-88IV Ethernet Interface Setup Tool Manual Check the printer IP address and Ethernet ID address Check the IP address and Ethernet ID address in the power-on self-test page. - Page 7 2.The uniqueness of the printer Ethernet ID address:All the Ethernet ID addresses of printers connected with the network must be unique that is the Printer Ethernet ID addresses must be different from the PC Ethernet ID addresses.If the Printer has the same Ethernet ID address as the PC, the printer can't connect to the network or print properly.
-
Page 8: Chapter 6. Sgt-88Iv Ethernet Interface Printer Setup Tool Instructor
6.2 Using Ethernet port to revise the IP address SGT-88IV Ethernet Interface Printer Setup Tool Instructor Select“Ethernet” on picture 1，the default IP “192.168.1.87”，click “test”，check if the communication is normal, if it is, it will show “OK”，if not, it will show “ERROR”，if error happens, please check if the Note: it is suitable only for Win2000/WinXP/Win2003/WinVista /Win7/Win8/8.1/10... - Page 9 8.After revising the IP address and ID address, users can print the windows testing page through the new IP port. a."Windows" →"Printer and Fax"→"SGT-88IV Printer Property→ "Ports". See the following picture. Then click "Next>". See the following picture. b.Click "Add Port" → Standard TCP/IP Port→"New Port".See the following picture.
-
Page 10: Chapter 7 Wifi Router Setup Guide
Then click "setting…", see the following picture. See the above picture, under the IP port name, "Protocol" → "Raw"→ set "Port Number " as 9100→ then click "OK". See the following picture. e.If the printers can print the windows power-on self-test properly, printer is connected with the PC correctly and this Ethernet port is working. -
Page 11: How To Connect Wifi Printer
8. How to connect Bluetooth printer. Bluetooth support Both Android and iOS. a. For android device. Open wifi settings of android device, to find “Scangle printer”bluetooth name of Printer Put password: 0000. b. For IOS device. Open WIFI settings of iOS device, then open your POS or square software or App to find bluetooth name”... -
Page 12: Chapter 10 Test With The Communication Ports For Print Test Page
Find the SGT-88IV properties window (see the following picture). Choose the corresponding serial port. For example “com1:Serial Port”, then click “Configure Port…” to set the serial port, Bits per second must be the same with the baud rate of the printer. Click “Ok”... -
Page 13: Test With Usb Communication Port For The Print Test Page
Then choose “General” (see the following picture) Then click “Print Test Page”. If the printer can print test page normally, the printer and your PC is set Then click “Print Test Page”. If the printer can print test page normally, the printer and your PC is set correctly and this communication port is working. - Page 14 Then choose “New Port...” (see the following picture). Click “Next” (see the following picture) Click “Next” (see the following picture) Click “Finish”. TCP/IP standard printing communication port is added completely. Input “192.168.1.87” after “ Printer Name or IP Address”. Click “Next”, (see the following picture)
-
Page 15: Chapter 11 General Setting
11.1 Cutter and Cash Drawer Settings If you need buzzer prompt before or after printing, please select Printing Properties\Printing References\Device settings,Choose “Apply” →”OK” finish setting. as follows: 1.Choose “property” of SGT-88iv → Choose “General” → Choose “Printing References”(See the following picture) -
Page 16: How To Add Nv Logo
11.3 How to add NV LOGO . 11.4 Communication port Add LOGO Communication port: driver, serial port, network port, USB port； 1.Add the logo file 2.Download Driver:click on the drop box shows all installed printers. Serial port: point drop box shows all COM ports that have been assigned to the device. Network port: click on the right side bottom of the search, can detect the printerconnected to all printers IP host through the network port, appears in the drop-down box . -
Page 17: Select Module
Ine code：48/40 （Bytes） NOTE: Below will prompt the currently selected port, click on the button of Check Port will command the printer to print a string of text,please check printer output to determine is OK.After OK,enter para The last one will automatically print：when out of paper, printer automatic reprint the last one. setting. -
Page 18: Bluetooth
WiFi module PCB of the printer, according to the router set the wireless mode to click on the corresp NOTE: -onding model, and fill in the network name, key password, authentication type, encryption algorithm. Enable the black label pattern and disable the black label pattern are both settings take effect the Set wireless IP need to restart the printer. -
Page 19: Chapter 12 Safety Warning
Safety Warning: In order to operate our printer correctly and prevent any danger or damage, please be sure to follow instructions while operating our products: Warning Infringing the instructions below my cause severe injury or death. Do not simultaneously connect power When detected suspicious smells, smokes plugs of different products on one power orsound,please shut off the power at once and... - Page 20 Do not overly bend or place heavy load on the power soft wire as it may cause fire. Use only supplied adaptors. Do not take apart, repair or transform the Don't touch the thermal head with hand. products. That may cause burn or influence of Use only approved accessories or it printing quality.
