CAREboy Instruction Manual
Multifunctional cordless waxer and cleaner

Advertisement

loading

Related Manuals for Scheucher CAREboy

Summary of Contents for Scheucher CAREboy

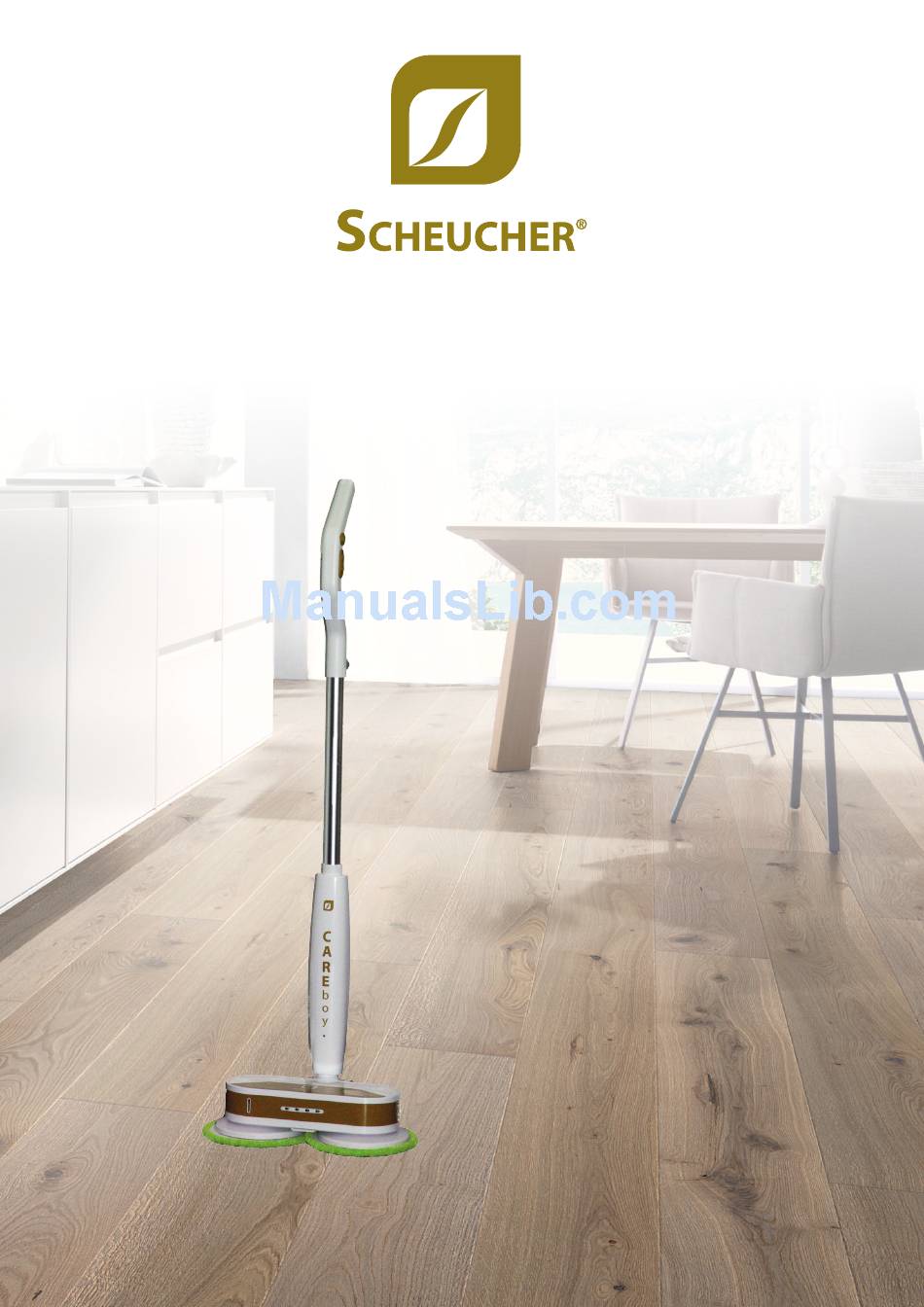

  • Page 1 CAREboy Instruction Manual Multifunctional cordless waxer and cleaner...

  • Page 2: Schematic Drawing

    PRODUCT AND PARTS SCHEMATIC DRAWING Handle Battery Spray button Charging indicator Moping | waxing switch Push to open Plastic cover LED-illumination Rotary plate Water level display Nozzle Moping | waxing pads (2 pcs. blue, 2 pcs. green) Aluminium alloy tube Power adapter...

  • Page 3: Specification

    SPECIFICATION SCHEUCHER CAREBOY Rated voltage 14.4 V Rated power 60 W Noise 60 dB Battery capacity 4000 mAh Charging time 3 hours Run time > 30 min. Water tank capacity 330 ml. Dimensions 130 x 40 x 9,5 cm Weight 3,7 kg We reserve the right to continuously change the product design and improve the product technology without notice.
  • Page 4 ASSEMBLY INSTRUCTIONS Install the handle 1.1. Connect the terminal of the handle to the port which is on the top of alu- minum alloy tube (see picture 1). Pic 1 1.2. Put the aluminum alloy tube into the bottom of handle. Rotate the aluminum alloy tube until it gets locked in the handle (See picture 2) Pic 2 Install the main body...

  • Page 5: Operating Instructions

    4.6. Only use clean pads for PARQUET CARE. 4.7. Please empty the tank, if you do not want to use your CAREboy for an extended period of time, fill in water, clean the nozzle with a few sprays and then empty the water.
  • Page 6 First, clean the floor with a vacuum cleaner to remove coarse dirt. Fill PARQUET CLEANER in the tank and clean the parquet floor by slowly moving CAREboy back and forth. Spray the cleaner as needed on the floor. Work in partial surfaces. Due to the high absorption...
  • Page 7 Clean the floor as described before. Empty the tank and fill in PARKETT CARE care oil into the tank. Replace the pads and use the green care pads. Spray PARQUET CARE on the floor and polish it at high speed by slowly moving the CAREboy back and forth. Work in partial areas and spray it onto the floor as needed.
