Summary of Contents for Mobatime NMI

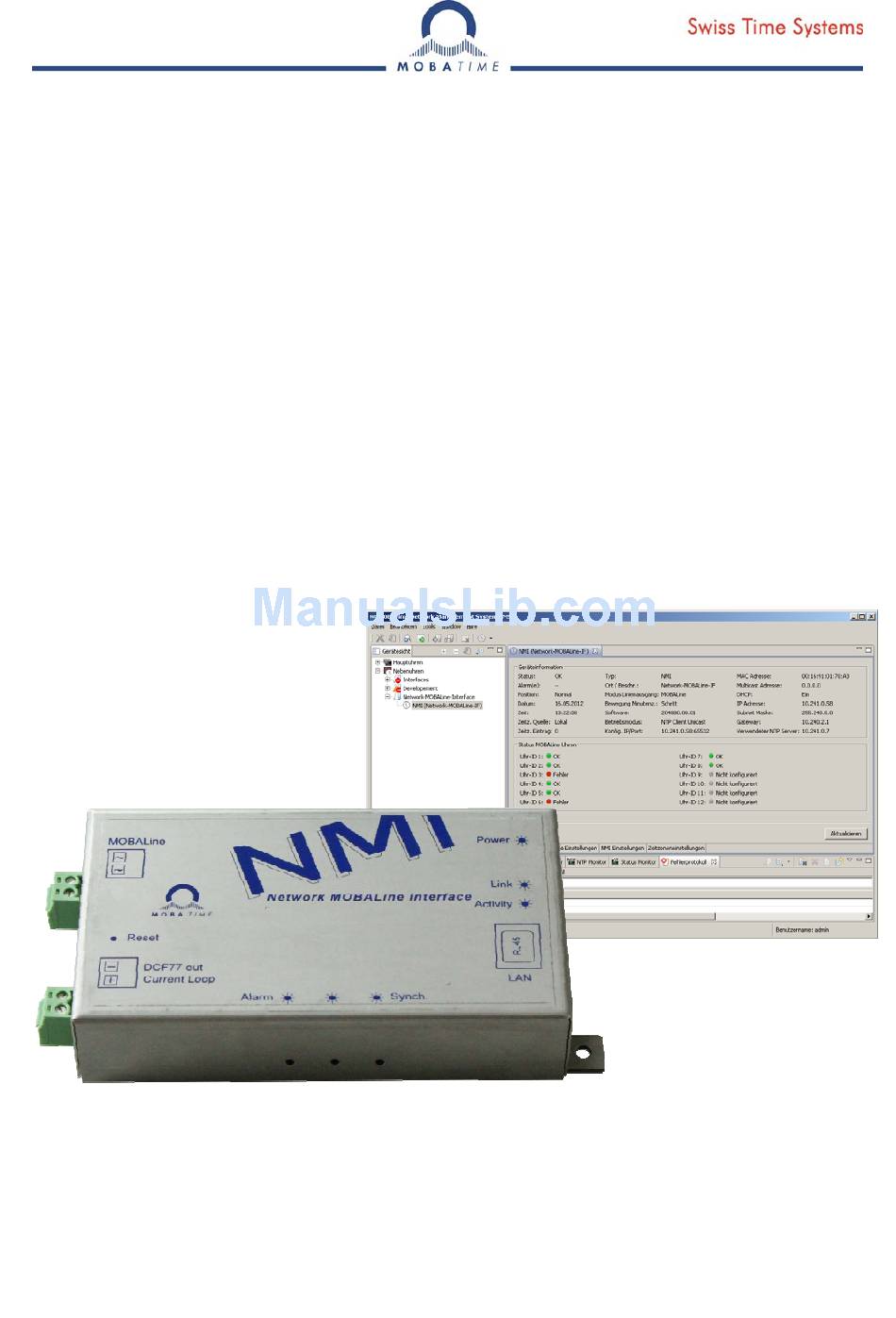

- Page 1 MOUNTING AND INSTRUCTION MANUAL NMI – Network MOBALine Interface Please study these instructions prior to installation. © MOBATIME BE-800916.03...
- Page 2 Certification of the Producer STANDARDS The Network MOBALine Interface NMI was developed and produced in accordance with the EU guidelines: 2004 / 108 / EG 96 / 48 / EG References to the Instruction Manual The information in this Instruction Manual can be changed at any time without notice.
-
Page 3: Table Of Contents
7.9.1 NTP client unicast ........................12 7.9.2 NTP client multicast ........................12 7.10 MOBA-NMS (MOBATime Network Management System) ..............13 Update ................................. 14 Bootloader update ........................... 15 Factory settings ............................16 ... -
Page 4: Safety
NTP (Ethernet) and MOBALine. The interface receives the current time information from NTP and provides it to terminal devices using MOBALine. A detailed function description can be found in chapter 3.3 Function description. The technical data can be found in chapter 12 Technical data. © MOBATIME 4 / 24 800916.03... -
Page 5: Observe Operating Safety
Please observe the electromagnetic compatibility! This device complies with the requirements of the EMC directives 2004/108/EC and 96/48/EC Caution! © MOBATIME 5 / 24 800916.03... -
Page 6: Maintenance
Return your device to your supplier who will dispose of it correctly. Packaging Your device is packaged to protect it from damages during transport. Packaging is made of materials that can be disposed of in an environmentally friendly manner and properly recycled. © MOBATIME 6 / 24 800916.03... -
Page 7: General Information - Introduction
The TREND clocks can report their correct functionality back to the NMI. The state of monitored clocks can be checked with MOBA-NMS. The power supply is carried out via PoE (Power over Ethernet). The NMI reports to the switch as a class 2 device. -
Page 8: Configuration, Displays And Connections
Configuration, displays and connections Configuration The NMI can be fully controlled and configured with MOBA-NMS. In addition, it is pos- sible to give out parameters through DHCP or SNMP. More detailed information about the configuration with MOBA-NMS, DHCP and SNMP can be found in the document BE-800793. -
Page 9: Operation Modes / Synchronization
The NTP server addresses must be configured as a DHCP option by the network ad- ministrator. If an address is sent to the NMI, the latter will request NTP and time zone packages from the former. The request interval can be configured using the software MOBA-NMS. -
Page 10: Time Signal Outputs
TREND clock manual (BE- 800913). Mounting and commissioning In order to mount the NMI and to launch it for the first time, the following process can be used: 1. Mount NMI to desired spot 2. Connect Ethernet cable with PoE supply 3. -
Page 11: Operating Behavior
Operating behavior Power supply The NMI can be supplied by PoE (Power over Ethernet) from a switch. The PoE per- formance class is class 2. As an alternative to the PoE switch, a PoE injector or midspan can be used. -
Page 12: Snmp
The NMI is synchronized to UTC (coordinated world time). In order to calculate and display the local time, the NMI requires additional information in the shape of a time zone entry. The NMI can save 1 time zone entry which can be edited over the network using the PC tool MOBA-NMS. -
Page 13: Moba-Nms (Mobatime Network Management System)
Further information, manuals and the software itself can be found on our website http://www.mobatime.com. If desired, it can also be sent out on a USB stick (must be ordered separately). In the register card “NMI Settings”, the various NMI parameters can be edited. © MOBATIME 13 / 24... -
Page 14: Update
Firmware update Bootloader update The newest versions of the firmware and bootloader are available at www.mobatime.com Customer Area Attention: Product Resources in the respective product folder. If the delivered device contains newer software than displayed in this manual, please check the settings. -
Page 15: Bootloader Update
In case of a bootloader alarm, the selection field for the firmware (application) is deac- tivated and only made available after a successful bootloader update: Important: The bootloader file must be a .zip file. © MOBATIME 15 / 24 800916.03... -
Page 16: Factory Settings
Factory settings The NMI is delivered with the following standard configuration. This can be recreated on the device (see chapter 4.2). Factory settings: Name (20 digits) Network-MBL-IF IP mode IPv4 and IPv6 on DHCP IPv4 IPv4 IP address 1.255.255.253 IPv4 subnet mask 255.255.255.0... -
Page 17: Time Zone Table
Sydney, Canberra, Mel- Sun. Oct. (02.00) Sun. Apr. (03:00) bourne, Tasmania: Hobart UTC (GMT) UTC (GMT) Honiara (Solomon Is.), Noumea (New Caledonia), Auckland, Wellington Last Sun. Sep. (02:00) Sun. Apr. (03:00) Majuro (Marshall Is.), , Anadyr © MOBATIME 17 / 24 800916.03... - Page 18 As usual, the time table is adapted each year. You can download the newest time table from our Notice: homepage: www.mobatime.com Downloads Moba-Software Time Zone Table. If the delivered device contains a newer version as showed in this manual, it’s recommended to check the time zone entries.
-
Page 19: Measurements
Measurements All specifications in mm © MOBATIME 19 / 24 800916.03... -
Page 20: Technical Data
<+/-2 s after 24 h IP 30 Protection class -20 °C … +60 °C Temperature area measurements (l x w x d): 130 x 63 x 22.5 mm Housing clips for wall mounting 180 g Weight © MOBATIME 20 / 24 800916.03... - Page 21 © MOBATIME 21 / 24 800916.03...
- Page 22 © MOBATIME 22 / 24 800916.03...
- Page 23 © MOBATIME 23 / 24 800916.03...
- Page 24 © MOBATIME BE-800916.03...
