These instructions contain all the necessary fitting and operating instructions for your electric shower.
Care taken during the installation will provide a long, trouble free life from your shower.
INSTRUCTION GUIDE AND USER MANUAL
INSTANTANEOUS ELECTRIC WATER HEATER - MANUAL
By
AQUA PRO 9.5 KW.
AQUA FULL PRO FLEX 9.5 KW.
Advertisement
Table of Contents
Related Manuals for AQUAS AQUA FULL PRO 9.5 KW
Summary of Contents for AQUAS AQUA FULL PRO 9.5 KW

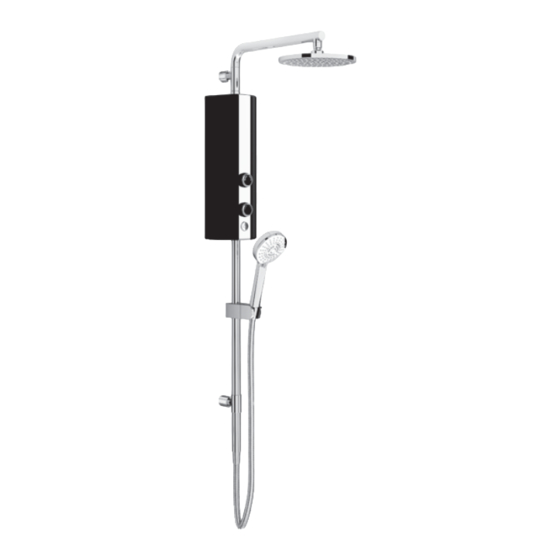

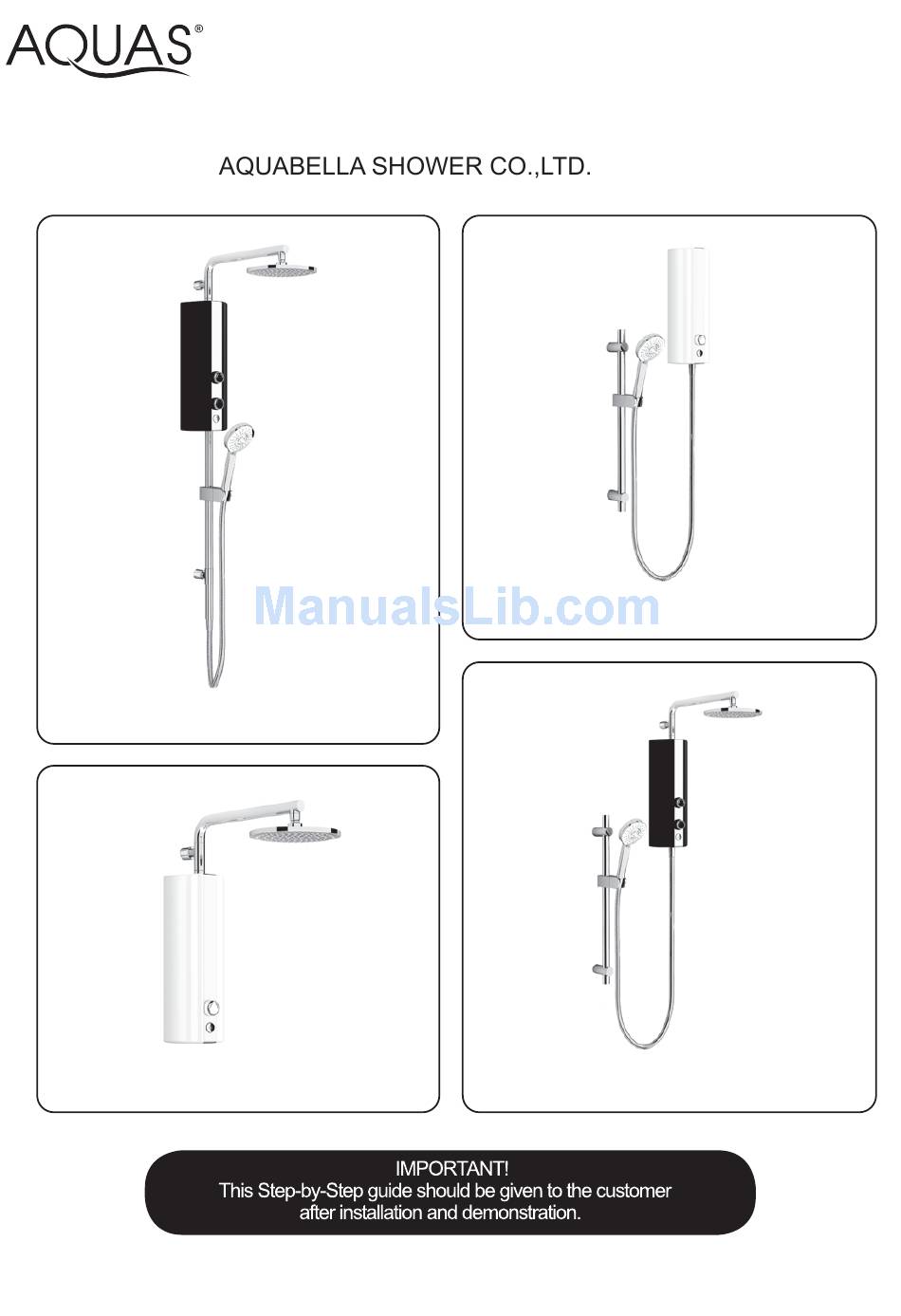

- Page 1 INSTRUCTION GUIDE AND USER MANUAL INSTANTANEOUS ELECTRIC WATER HEATER - MANUAL AQUA PRO 9.5 KW. AQUA FULL PRO 9.5 KW. AQUA TOP 9.5 KW. AQUA FULL PRO FLEX 9.5 KW. These instructions contain all the necessary fitting and operating instructions for your electric shower.
- Page 2 Page 2 PLEASE READ THIS IMPORTANT SAFETY INFORMATION...
- Page 3 Page 3 IMPORTANT GENERAL ADVICE TO SHOWER UNIT USERS...
- Page 4 Page 4 GENERAL LAYOUT OF A SHOWER INSTALLATION DOUBLE POLE SWITCH CEILING MOUNTED CEILING JOISTS HOSE RETAINING RING BATHROOM SPILL OVER LEVEL FLOOR...
- Page 5 Page 5 RECOMMENDED INSTALLATION DIMENSIONS AQUA FULL PRO 9.5 KW. AQUA FULL PRO FLEX 9.5 KW.
- Page 6 Page 6 RECOMMENDED INSTALLATION DIMENSIONS AQUA TOP 9.5 KW. AQUA PRO 9.5 KW.
- Page 7 Page 7 AQUA FULL PRO 9.5 KW.
- Page 8 Page 8 AQUA TOP 9.5 KW.
- Page 9 Page 9 AQUA PRO 9.5 KW.
- Page 10 Page 10...
- Page 11 Page 11...
- Page 12 Page 12 PLUMBLING CONNECTIONS Top fixing position arrow depict water and electrical entry points.
- Page 13 Page 13 PLUMBLING CONNECTIONS...
-
Page 14: Electrical Connections
Page 14 ELECTRICAL CONNECTIONS... -
Page 15: Electrical Wiring
Page 15 ELECTRICAL WIRING... - Page 16 Page 16 FITTING THE BACK COVER INTO POSITION When fitting the cover, it is important to align the divertor spindle and volume control spindle inside the heater. DIVERTOR HANDLE ( UPPER HANDLE ) Make sure that the Divertor spindle and the raised button on the divertor handle are in the 12 O'clock position before fitting the cover.
- Page 17 Page 17 COMMISSIONING THE SHOWER HEATER IMPORTANT NOTE FOR THE INSTALLER 1. Before installation, rotate the volume control handle clockwise until resistance is felt. Connect the water and electricity supply. 2. Turn on the water and electricity, before fitting the front cover. Push the on/off button, to check water flow and if there is any leakage...
-
Page 18: Operating The Shower
Page 18 OPERATING THE SHOWER 1. Switch on electrical supply - pull cord or wall mounted switch. 2. Press the ON / Off Button to start the flow of water. 3. Turn the divertor handle to select the showering function you require Left for Hand-shower –... - Page 19 Page 19 MAINTENANCE – CLEANING THE FILTER STEP 1 Remove front cover assembly, loosen these two screws, the decor cover can be removed. STEP 2 Use flat-head screw driver to remove filter, clean it, and refit. STEP 3 Clean the filter and refit.
- Page 20 Limescale remover and rinse thoroughly before use. Ai0051 Your AQUAS Branded heaters are supplied by Aquabella Shower Co.,Ltd. in Thailand. For information or service assistance , please contact the installer or the local UK distributor from where the heater was purchased.
