- Page 1 Revision Date: Rev: Document Number: 07/11/2017 MAN – FD932DVD-BLU-2 (VER X) Page 1 of 27 Installation and Operation Manual FD932DVD-BLU-2 FD932DVD-BLU-2 VER HDSDI Blu-ray/DVD/CD/MP3 Player © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com...
-
Page 2: Specifications
Revision Date: Rev: Document Number: 07/11/2017 MAN – FD932DVD-BLU-2 (VER X) Page 2 of 27 Specifications Disc Player FD932DVD-BLU-2 FD932DVD-BLU-2 VER HDSDI Technology Blu-ray / DVD Blu-ray / DVD NTSC Supported Formats 1080P/1080i/720p/480p/480i 1080p/1080i/720p (59.94/60 Hz) PAL Supported Formats 1080p/1080i/720p/576p/576i... - Page 3 Revision Date: Rev: Document Number: 07/11/2017 MAN – FD932DVD-BLU-2 (VER X) Page 3 of 27 Connectivity PRODUCT INPUTS OUTPUTS COMMUNICATION FD932DVD- ✓ BLU-2 FD932DVD- ✓ BLU-2 VER HDSDI * = NTSC or PAL (Depending on the Disc) Blu-ray playback through HDMI requires a HDCP compatible monitor.
-
Page 4: Table Of Contents
Revision Date: Rev: Document Number: 07/11/2017 MAN – FD932DVD-BLU-2 (VER X) Page 4 of 27 Table of Contents General Information ....................5 Features ........................5 Front View ........................5 Discs Supported ......................6 Installation Instructions ..................... 7 Rear Panel Output ...................... 8 Assembly of Connector Spring Latch .............. -
Page 5: General Information

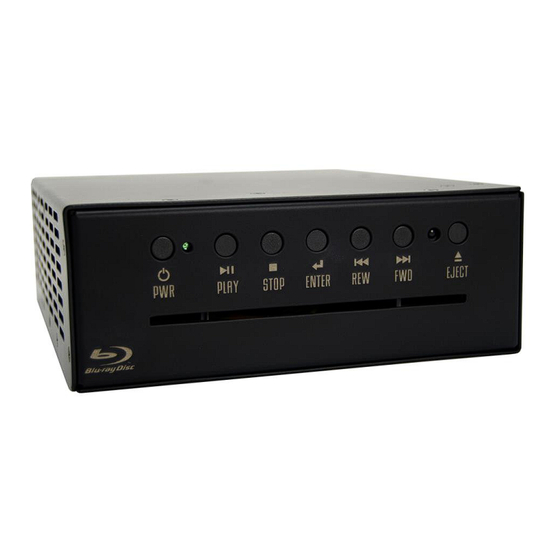

MAN – FD932DVD-BLU-2 (VER X) Page 5 of 27 General Information The FD932DVD-BLU-2 (VER HDSDI) player is a combo Blu-ray/DVD player that allows playback up to 1080P/60Hz. This is a slot load disc player which allows for mounting in various angles within the aircraft. -
Page 6: Discs Supported
Revision Date: Rev: Document Number: 07/11/2017 MAN – FD932DVD-BLU-2 (VER X) Page 6 of 27 Ventilation Slots and openings in the player are provided for ventilation, to ensure correct operation of the product. These openings protect the unit from overheating and must not be blocked or covered. -
Page 7: Installation Instructions
The FD932DVD-BLU-2 player also includes a strain relief bracket which is used to secure the HDMI cable in place with a 3/16” cable tie. NOTE: Care should be taken to ensure the units are not installed in an area with poor ventilation, or in an area with excessive heat. -
Page 8: Rear Panel Output
Rear Panel Output/Mechanicals 1. VIDEO OUTPUT HDMI Video output to HD monitor with HDMI connector (FD932DVD-BLU-2) SDI Video output to HD monitor or switch with BNC Connector (FD932DVD-BLU-2 VER HDSDI) 2. POWER/GROUND INPUT & AUDIO OUT, IR Extension, CAN BUS, RS-485 3. -
Page 9: Assembly Of Connector Spring Latch
Revision Date: Rev: Document Number: 07/11/2017 MAN – FD932DVD-BLU-2 (VER X) Page 9 of 27 Assembly of Connector Spring Latch (WPI Interconnect Products P/N 17-529) © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 10: Video Wiring Suggestions
Revision Date: Rev: Document Number: 07/11/2017 MAN – FD932DVD-BLU-2 (VER X) Page 10 of 27 Video Wiring Suggestions Avoid routing video wiring parallel to: • AC wiring • Strobe wiring • DC motor supply cables • Inverter cabling • Or any other potential noise source. -
Page 11: Audio Wiring
Right + and Right – connect to the receiving equipment’s Right channel input. The shield will be connected to the fuselage at one place only. NOTE: The FD932DVD-BLU-2 (VER HDSDI) has high impedance balanced outputs instead of the more popular low impedance inputs. This is usually not a problem. External audio level pads may be installed at the installer’s discretion. -
Page 12: Power And Ground Wiring
Revision Date: Rev: Document Number: 07/11/2017 MAN – FD932DVD-BLU-2 (VER X) Page 12 of 27 Power and Ground Wiring The rated current of the equipment and associated voltage drop should be taken into consideration when selecting wire gauge. The following example is based on an install with a 28VDC power system, 1.5-amp equipment load and a total of 50 feet of wire... -
Page 13: Hdmi
NOTE: On the following Pinout page, Pin 14, 15, 16 are reserved for CAN BUS integration. The FD932DVD-BLU-2 (VER HDSDI) is only intended to easily integrate with the FDS Avionics Select CMS. If more information regarding the CAN BUS integration with this device is required, please contact FDS Avionics Technical Support at 470-239-7421. -
Page 14: Power/Video
Revision Date: Rev: Document Number: 07/11/2017 MAN – FD932DVD-BLU-2 (VER X) Page 14 of 27 Power/Video P1 (DB-25 Connector –Supplied with Contacts & Hood) Connector P/N: DB-F25H/or Equivalent Crimp Contacts P/N: M39029/63-368 or Equivalent Number Description 28 VDC Power Input... -
Page 15: Rs485 Controls
All controls available on the front panel and all controls on the Blu-ray remote control are supported. Please refer to the DB25 connector diagram in the FD932DVD-BLU-2 VER HDSDI manual for connection information. RS485 Port Configuration: The RS-485 port is standard 9600 bauds, no parity, 8 data bits, 1 stop bit, and no flow control. -
Page 16: Remote Control
Revision Date: Rev: Document Number: 07/11/2017 MAN – FD932DVD-BLU-2 (VER X) Page 16 of 27 RS485 Commands Cont’d PA Commands: “PA ON” will enable PA interrupt. “PA OFF” will disable PA interrupt. NOTE: “PA ON” command must be received every 9 seconds or interrupt will time out. -
Page 17: Rs485 Commands
Revision Date: Rev: Document Number: 07/11/2017 MAN – FD932DVD-BLU-2 (VER X) Page 17 of 27 Remote Control Available Commands Image for RS485 Control Reference with command number layover for available commands. Buttons without numerical Actual Remote for button reference overlays in the above image do not have available RS485 Commands. -
Page 18: Infrared Control
Page 18 of 27 Infrared Control The FD932DVD-BLU-2 (VER HDSDI) has the ability to use an infrared external eye, which is supplied by FDS Avionics Corp. The following guidelines should be met when using the external IR eye to insure correct and optimal operation. -
Page 19: Operating Instructions
Revision Date: Rev: Document Number: 07/11/2017 MAN – FD932DVD-BLU-2 (VER X) Page 19 of 27 Operating Instructions Using Front panel and Remote Control Basic Playback Playback 1. Press the PWR button on the front panel to turn 1. Press PLAY >to resume normal playback. -
Page 20: Operating With Remote
Revision Date: Rev: Document Number: 07/11/2017 MAN – FD932DVD-BLU-2 (VER X) Page 20 of 27 Operating with the Remote 60º Distance: Approximately 7m (23 feet) from 30º 30º The front of the remote sensor. Angle: Approximately 30° in each direction of the remote sensor. -
Page 21: Special Features
Revision Date: Rev: Document Number: 07/11/2017 MAN – FD932DVD-BLU-2 (VER X) Page 21 of 27 IMPORTANT NOTICE: THE FOLLOWING FUNCTIONS ARE APPLICABLE ONLY TO BD DISCS. IF OTHER DISC FORMATS ARE PLAYED, SCREEN DISPLAY AND OPERATION WILL BE DIFFERENT. Special Features of Blu-ray Discs... -
Page 22: Region Codes
1. The first method uses the supplied firmware discs which will change the player’s firmware. This will allow the region code change to persist through a power cycle. FDS Avionics recommends loading the appropriate firmware based on country where the Blu-ray discs are purchased. -
Page 23: Technical Drawing
Revision Date: Rev: Document Number: 07/11/2017 MAN – FD932DVD-BLU-2 (VER X) Page 23 of 27 Technical Drawing © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... - Page 24 Revision Date: Rev: Document Number: 07/11/2017 MAN – FD932DVD-BLU-2 (VER X) Page 24 of 27 Technical Drawing © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com...
-
Page 25: Technical Support/Airworthiness
MAN – FD932DVD-BLU-2 (VER X) Page 25 of 27 Technical Support Should you have any questions concerning this product or other FDS Avionics Corp. products, please contact our Service and Support representatives at 470-239-7421. FDS Avionics Corp. 6435 Shiloh Road... -
Page 26: Warranty
Limited Warranty All FDS Avionics Corp. products are warranted to be free from material or manufacturing defects for a period of 24 months from the date of shipment for General Aviation customers or 12 months from the date of shipment for Government/Special Mission customers. -
Page 27: Log Of Revisions
Revision Date: Rev: Document Number: 07/11/2017 MAN – FD932DVD-BLU-2 (VER X) Page 27 of 27 Revisions Log Date Page Description 09/21/2012 Initial Release Updated 485 commands, updated region changing 7/30/2013 16,21 section 9/24/2015 New Format, Warranty 7/11/2017 New Format, new Company Name, Warranty ©...
