- Page 1 NITROGEN OPERATING INSTRUCTIONS NITROGEN INFLATION SYSTEM NG-4, NG-6, NG-12, NG-18 READ INSTRUCTIONS THOROUGHLY BEFORE OPERATING 800.223.4540 3451 S. 40th Street www.tsissg.com Phoenix, AZ 85040 info@tsissg.com 602.437.5020 Fax 602.437.5025 MADE IN USA Sept 10, 2013...
-
Page 2: Safety Instructions
Maximum air supply to Inflation unit is 150 PSI. Overview: The manufacturer’s recommended operating temperature for running this unit is 32°F to +140°F. NG-4 SET-UP INSTRUCTIONS Use Teflon Tape or other suitable pipe fitting sealer Connect air line. The recommended air supply is a 1/2”... - Page 3 NG-6, NG-12, NG-18 SET-UP INSTRUCTIONS Use Teflon Tape or other suitable pipe fitting sealer Fasten Nitrogen Unit and Tank to a permanent location. Connect air line. The recommended air supply is a 1/2” line. Fasten a fitting capable of providing 1/2" of air flow onto the air inlet supply valve.
-
Page 4: Operating Instructions

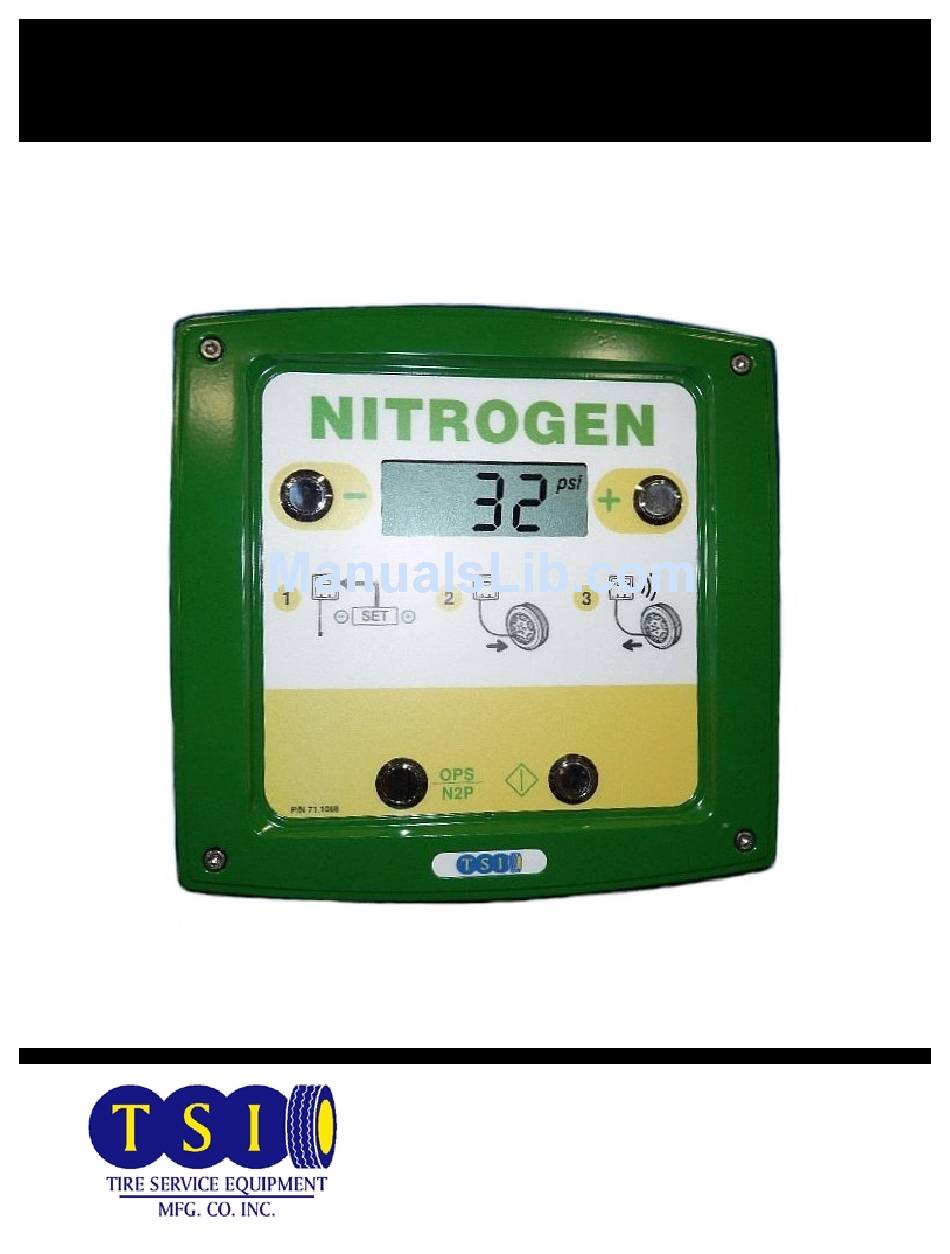

OPERATING INSTRUCTIONS CAUTION: Operation of this machine for use other than purging and inflating tires is strictly prohibited. DO NOT exceed the tire manufacturers recommended air pressure ratings. Digital Tire Inflator Decrease Value Increase Value Nitrogen Purge Start / Reset (OPS / N2P) Temp Save Restart... - Page 5 POINTS OF INTEREST WHILE USING THE DIGITAL TIRE INFLATOR Most tire centers use the default settings while only adjusting the PSI setting. This means the OPS set at “0” and the N2P set at “1” do not change. TSI highly recommends not changing the Over Pressure Setting (OPS) from “0”. This is an advanced feature not recommended for use by most standard users.
- Page 6 The previous steps are a basic overview to operate TSI Nitrogen units. The following will explain more in-depth functions or features each unit goes through during the process of purging air from tires and inflating them with nitrogen. Purging Air (Fig. 8) As the unit purges air from tires there’s a bar graph indicator showing air is being purged.
- Page 7 Some Tips: When the Digital Tire Inflator is powered down it resets to the default settings of 32 PSI, an OPS setting of “0” and the N2P setting of “1”. Only inflate a tire to the manufactures recommended pressure rating for that tire. Purging air from commercial truck tires can be time consuming.
- Page 8 www.tsissg.com NITROGEN INFLATION SYSTEM 800.223.4540 3451 S. 40th Street www.tsissg.com Phoenix, AZ 85040 info@tsissg.com 602.437.5020 Fax 602.437.5025 MADE IN USA...
