Summary of Contents for Polsen PCR-65

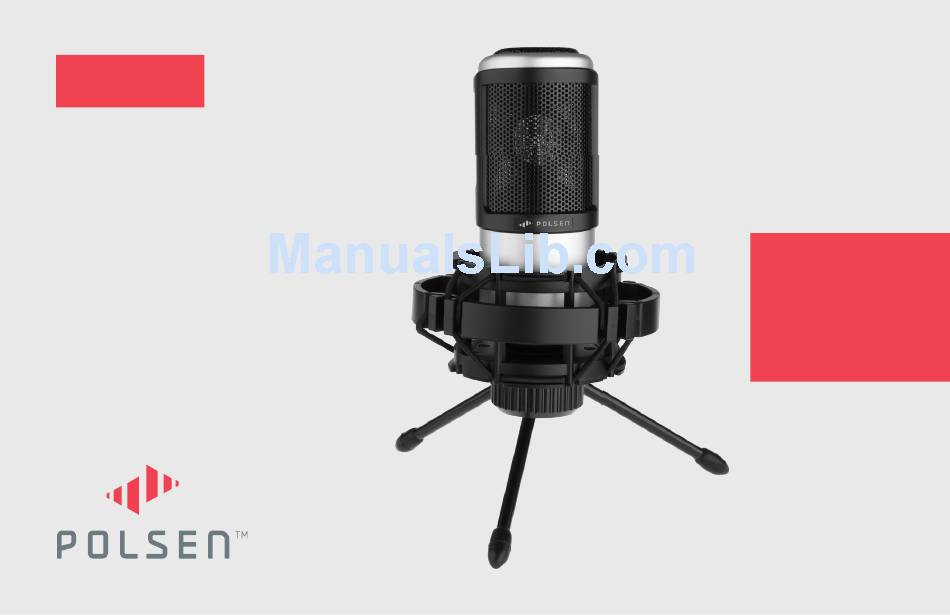

- Page 1 PCR-65 SIDE-ADDRESS PRODUCT RECORDING MANUAL MICROPHONE...
- Page 2 The microphone’s high sensitivity ensures that it will capture the entire spectrum of voices or instruments with detailed accuracy. The PCR-65 is constructed with a metal housing for durability and comes with a custom shock mount and desktop tripod.
- Page 3 OV E R V I E W Microphone Shock mount Locking knob Locking ring Desktop tripod User manual...
- Page 4 P R E C AU T I O N S • Please read and follow these instructions and keep this manual in a safe place. • Keep this product away from water and flammable gases or liquids. • Do not attempt to disassemble or repair this product yourself. •...
- Page 5 M O U N T I N G T H E M I C R O P H O N E 1. Screw the shock mount onto the threaded post of a mic stand or the included desktop tripod. 2. Once secure, remove the locking ring on the bottom of the shock mount, and place the base of the microphone through mounting hole.
- Page 6 1. Turn the speaker volume down, and use an XLR cable to connect the microphone to a preamplifier, mixing board, or recorder. Note: Recording directly into a computer requires an XLR-to-USB adapter such as the Polsen XLR-USB-48. 2. Turn the phantom power on.
- Page 7 S P E C I F I C AT I O N S T R A N S D U C E R T Y P E Back electret condenser M A X I N P U T S P L 125 dB P O L A R PAT T E R N Cardioid P O W E R R E Q U I R E M E N T 12 to 52 V phantom power D I M E N S I O N S H e i g h t : 5.7 in.
- Page 8 To obtain warranty coverage, contact the Polsen Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Polsen along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
