ETTI E055 User Manual

Attentions :

1. Avoid in contact with flammable, alkaline and acidic substances.
2. Avoid direct contact with water.
3. Do not reverse the polarity of the electrical supply input, it may damage the device.
4. Keep the product away from magnetic field such as iron, nichrome, battery and motor should not be
placed within 25mm. This is to assure the measuring accuracy of the device.
5. Extra attention: Any signal made by wireless or telecom device during analyzing process may cause
discrepancy to the sample result.
Specifications :
1. Range of auxiliary voltage: 5V – 15V
2. Range of allowed analyzing voltage: 0V – 60V
3. Maximum testing current: 250A
4. Net weight: about 30g
5. Size: 50 x 30 x 11mm

Characteristics :

This device specializes in testing the output performance of the power cell as well as the rotational
speed of the brushless motor. It can perform real time monitoring, sampling, recording and analyzing.
With the help of the analyzing software, users can observe the change in output electric current,
voltage, rotational speed of the motor in a certain time interval, so that they can assess the cell capacity
and motor combinations and hence make evaluation. Owing to its small size and light weight, users can
obtain a live and actual sample data in its voyage, in order to choose the best cell and motor combination.
The device can work stably and shows a clear and accurate result. It is mainly used for RC Plane, boat
and car and scientific research of power cell monitor, analysis and configuration.

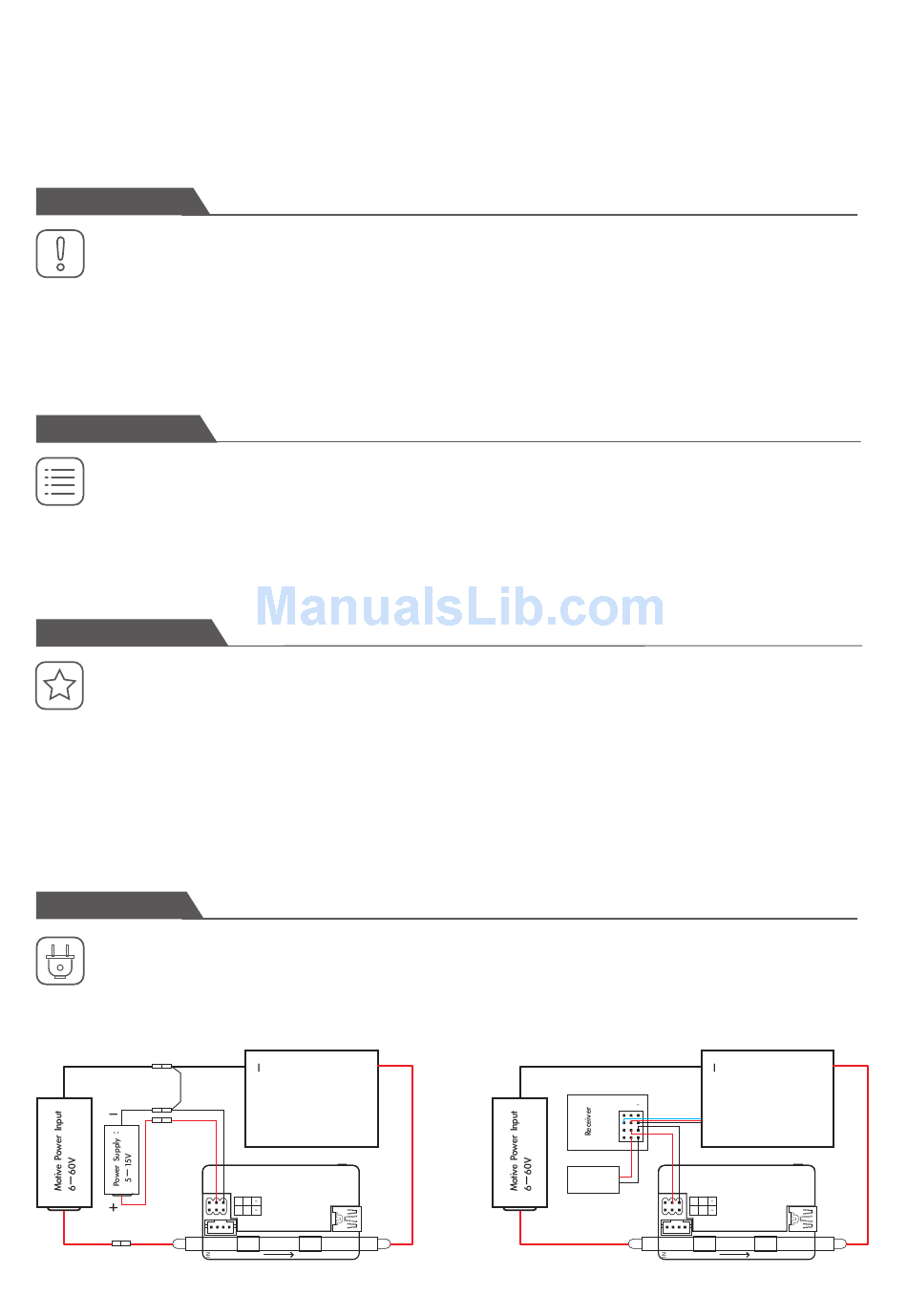

Connections :

Assemble the device on the equipment that is going to be checked, connect it in between the electrical
supply and the equipment. (Please follow the label on the device for the input and output direction,
reverse connection of the polarity may cause permanent damage to the device.)
A.
－
＋
ETTI
60V 250A Power Analyzer
＋
Power Output Device
USB
+
Power Input (5-15V)
S +
RPM Sensor Input
Display Slot
Power Analyzer(60V) ETTI
The Power Analyzer package includes:
1. Power Analyzer
2. LCD Operation Panel
3. USB data wire
4. 4pin display wire
5. software CD
B.
－
Ch1
Ch2
Ch3
Batt
BEC
or
Battery
＋
01
Power Output Device
S +
+
Power Input (5-15V)
S +
RPM Sensor Input
Display Slot
Power Analyzer(60V) ETTI
＋
USB
