Sign HX-P450A User Manual

Colorful bluetooth speaker
Hide thumbs
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Download this manual
Shenzhen Tongke Electronics Co., Ltd
www.sztongke.com
Add: The Second Industrial Zone, Phoenix Village, Fuyong Town, Shenzhen, China 518103
Tel: 86 755 3385 6685 Fax: 86 755 33893336

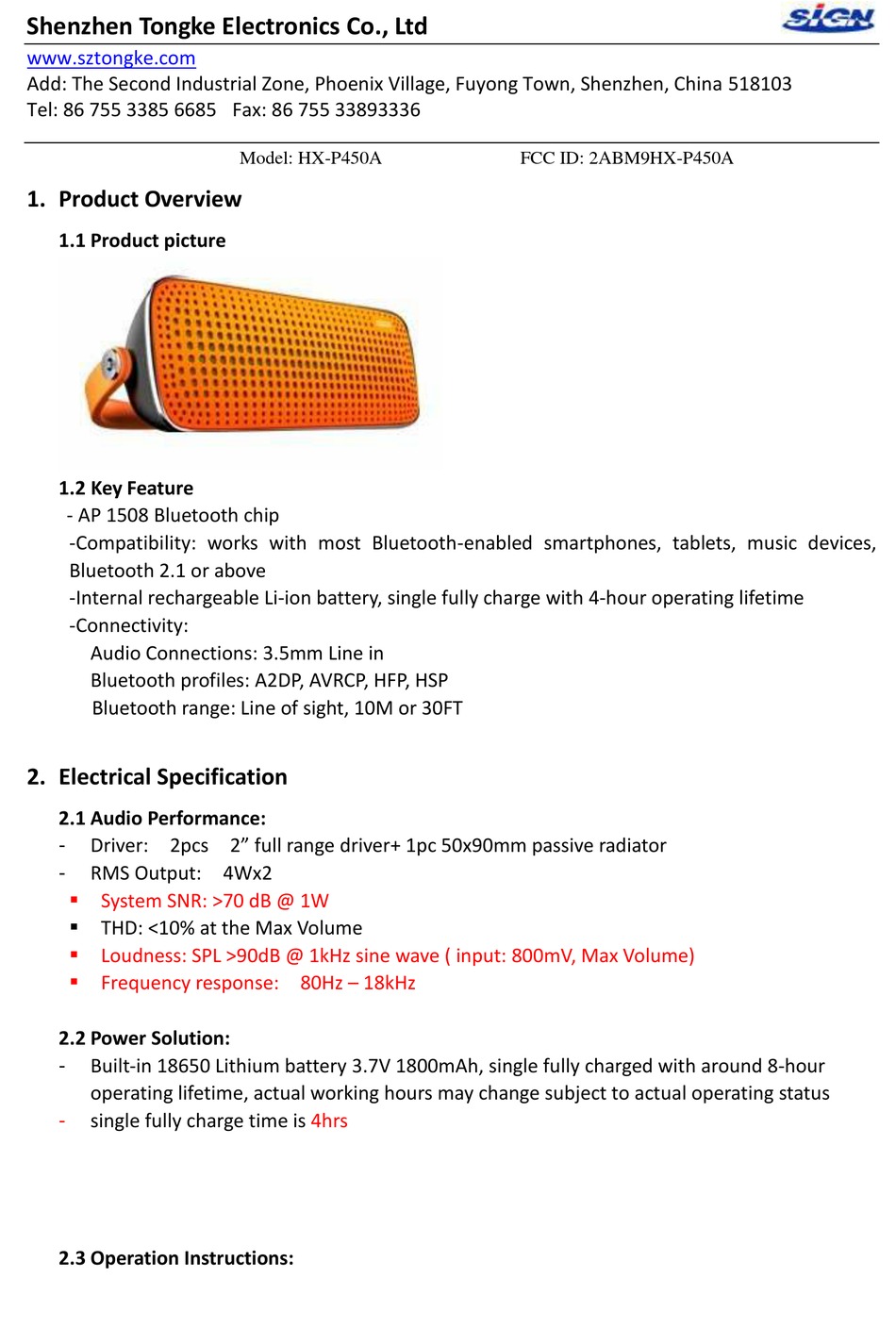

1. Product Overview

1.1 Product picture
1.2 Key Feature
- AP 1508 Bluetooth chip
-Compatibility: works with most Bluetooth-enabled smartphones, tablets, music devices,
Bluetooth 2.1 or above
-Internal rechargeable Li-ion battery, single fully charge with 4-hour operating lifetime
-Connectivity:
Audio Connections: 3.5mm Line in
Bluetooth profiles: A2DP, AVRCP, HFP, HSP
Bluetooth range: Line of sight, 10M or 30FT

2. Electrical Specification

2.1 Audio Performance:

Driver: 2pcs 2" full range driver+ 1pc 50x90mm passive radiator
-
RMS Output: 4Wx2
-
 System SNR: >70 dB @ 1W
 THD: <10% at the Max Volume
 Loudness: SPL >90dB @ 1kHz sine wave ( input: 800mV, Max Volume)
 Frequency response: 80Hz – 18kHz

2.2 Power Solution:

-
Built-in 18650 Lithium battery 3.7V 1800mAh, single fully charged with around 8-hour
operating lifetime, actual working hours may change subject to actual operating status
-
single fully charge time is

2.3 Operation Instructions:

Model: HX-P450A
4hrs
FCC ID: 2ABM9HX-P450A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HX-P450A and is the answer not in the manual?

Questions and answers

Related Manuals for Sign HX-P450A

Summary of Contents for Sign HX-P450A

  • Page 1: Product Overview

    Shenzhen Tongke Electronics Co., Ltd www.sztongke.com Add: The Second Industrial Zone, Phoenix Village, Fuyong Town, Shenzhen, China 518103 Tel: 86 755 3385 6685 Fax: 86 755 33893336 Model: HX-P450A FCC ID: 2ABM9HX-P450A 1. Product Overview 1.1 Product picture 1.2 Key Feature...
  • Page 2 Shenzhen Tongke Electronics Co., Ltd www.sztongke.com Add: The Second Industrial Zone, Phoenix Village, Fuyong Town, Shenzhen, China 518103 Tel: 86 755 3385 6685 Fax: 86 755 33893336 1. AUX-IN 2. Charging indication Led 3. Micro USB port:Charging port only,not transfer data with PC. 4.
  • Page 3 Shenzhen Tongke Electronics Co., Ltd www.sztongke.com Add: The Second Industrial Zone, Phoenix Village, Fuyong Town, Shenzhen, China 518103 Tel: 86 755 3385 6685 Fax: 86 755 33893336 11. Mode indication Led 2.4 Light Indication: 1. Charging LED, charging---solid red, fully charged-LED off Low battery, when the battery capacity below 10%, slow flash for low battery warning 2.
  • Page 4 Shenzhen Tongke Electronics Co., Ltd www.sztongke.com Add: The Second Industrial Zone, Phoenix Village, Fuyong Town, Shenzhen, China 518103 Tel: 86 755 3385 6685 Fax: 86 755 33893336 5. Reliability 5.1 General Operating Temperature: 0 - 40 ºC 5.2 General Humidity test: 90% (Operating @ 40 ºC) 5.3 General storage temperature: -10 - 50 ºC 5.4 Heat Storage test: 98.5 hours with Temp Cycling 5.5 Vibration test: 0.75 mm, 13Hz to 25Hz, 3 axis, 30 mins...

  • Page 5: Fcc Statement

    FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
