Elite Acoustics M2-6 User Manual

Live-performance studio monitor with 4 channels, mixer, effects, and bluetooth
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Elite Acoustics Engineering
M2-6 Live-Performance Studio Monitor
with 4 Channels, Mixer, Effects,
and Bluetooth
®
User's Manual

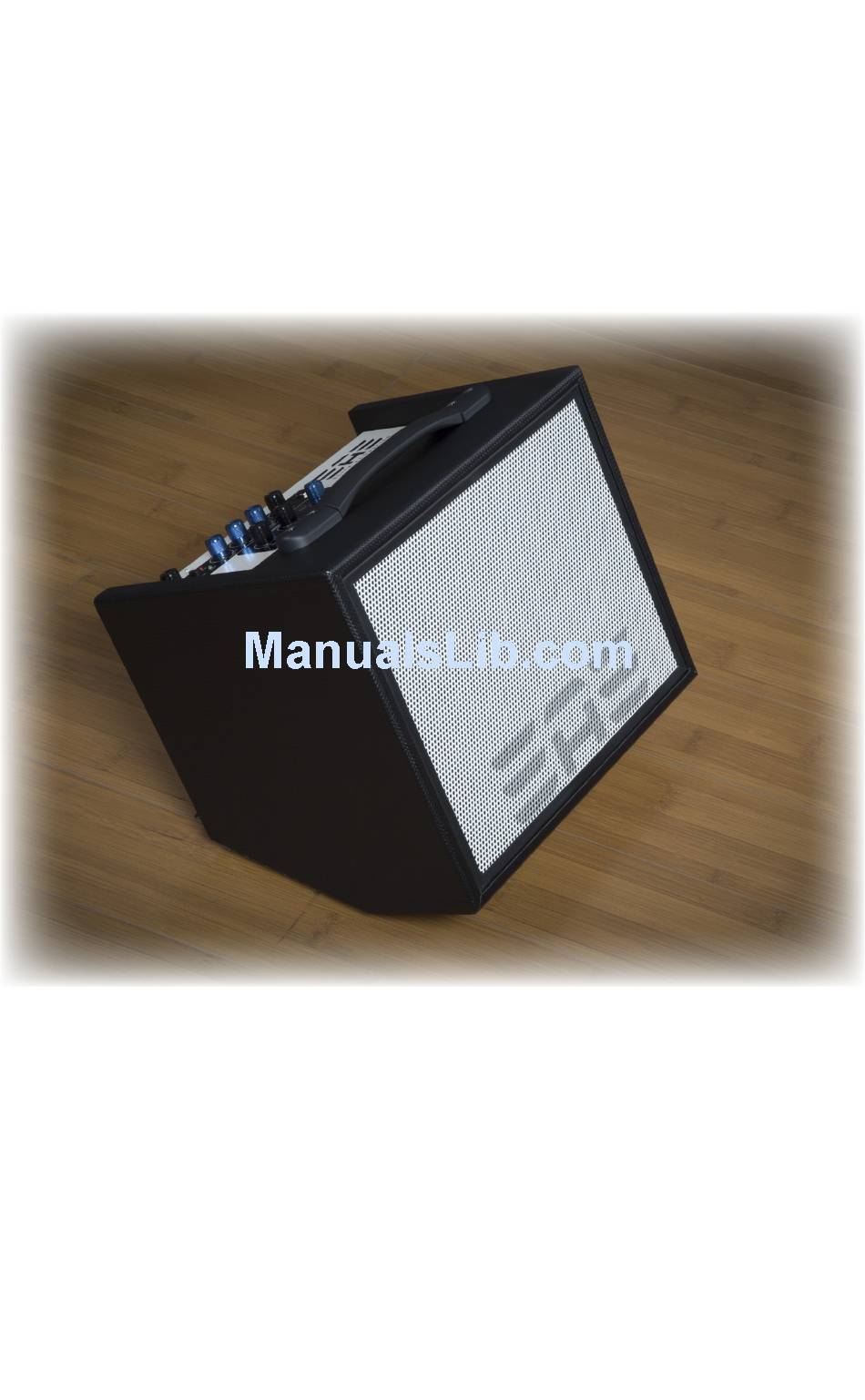

Elite Acoustics' M2-6 Live-Performance Studio Monitor with Mixer, Effects, and
Bluetooth® features an ergonomically sculpted cabinet for inclined-horizontal or
vertical placement; 6-1/2 inch woofer for superior bass response along with a 1 inch
silk-dome tweeter to deliver maximum clarity. M2-6 offers 4 input channels and 16
Digital Effects with a high-efficiency Class D bi-amp. The Master Section contains
a 3-band EQ, Monitor Volume and stereo AUX input with level control. Selectable
Direct Out or Main Outputs are provided for seamless system expansion.
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks
by Elite Acoustics Engineering, Inc is under license
NOTE: Due to continuous development and improvements of our products, features and specifications are subject to
change without notice. All weights and measures are approximate.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2-6 and is the answer not in the manual?

Questions and answers

Related Manuals for Elite Acoustics M2-6

Summary of Contents for Elite Acoustics M2-6

  • Page 1 Bluetooth® features an ergonomically sculpted cabinet for inclined-horizontal or vertical placement; 6-1/2 inch woofer for superior bass response along with a 1 inch silk-dome tweeter to deliver maximum clarity. M2-6 offers 4 input channels and 16 Digital Effects with a high-efficiency Class D bi-amp. The Master Section contains a 3-band EQ, Monitor Volume and stereo AUX input with level control.

  • Page 2: What Is In The Box

    WHAT IS IN THE BOX Your M2-6 package contains the following: (1) Speaker (1) Quick Start Guide (1) 12V AC Power Supply Adapter (1) Registration Card (1) 12V DC Car Battery Supply Adapter (1) Speaker Handle Grip Refer to Page 2 and 4, for the following Controls QUICK START Check that the Battery Switch [49] is set to the “Connect”...

  • Page 3: Top Panel

    Signal AUX In Monitor Level High Level E L I T E A C O U S T I C S Clip M2-6 - Live-Performance Monitor RATE R1 R2 Flange with 4 Channels, Mixer, Effects, and Bluetooth ® Signal Mute...

  • Page 4: Rear Panel Controls

    REAR PANEL CONTROLS Channel 1 [14] Gain: Apply gain for level control [15] Mute: Mute Channel [16] EFX/AUX Send Level: Adjust the level to “send” out [17] EFX/AUX select: select whether you are sending to internal EFX or external AUX bus [18] PAD: fixed attenuation for “hot”...

  • Page 5: Rear Panel

    - Keep unit in a cool, dry place away from extreme temperature - Do not service, modify, or replace the battery E L I T E A C O U S T I C S - If battery fails to charge, contact Elite Acoustics www.EliteAcoustics.com Instrument Line Mic 1...
  • Page 6 - Do not service, modify, or replace the battery will play the Right Channel. If stereo imaging - If the battery fails to charge, contact Elite Acoustics Battery Switch - Connect - to enable battery power is not desired, simply engage the Mono button...

  • Page 7: For Maximum Battery Life

    Doing so after a long period of time will damage the battery • Keep unit in a cool, dry place away from extreme temperatures • Do not service, modify, or replace the battery • If the battery fails to charge, contact Elite Acoustics Designs Charge...

  • Page 8: Bluetooth Function

    BLUETOOTH® FUNCTION Turn Bluetooth® function ON/OFF; Press the MODE button and hold for approximately 5 seconds Both LEDs will flash at the same time Pair device to the speaker system While both LED’s are flashing, quickly tap the MODE button once Both Flashing LED: indicate Bluetooth is ready to be paired ®...

  • Page 9: Effects Table

    EFFECTS TABLE Effect Rate/Decay Bright Cavern Variable Decay 300mS to 3 Seconds Dark Cavern Variable Decay 300mS to 3 Seconds Bright Hall Variable Decay 300mS to 3 Seconds Dark Hall Variable Decay 300mS to 3 Seconds Bright Room Variable Decay 300mS to 3 Seconds Dark Room Variable Decay 300mS to 3 Seconds Bright Plate...

  • Page 10: Block Diagram

    Block Diagram CHAN 1 LEDs MUTE SIGNAL PEAK LINE LEVEL PHASE 3 BAND EQ NOTCH INSTRUMENT FX send MUTE LEDs MUTE SIGNAL PEAK CHAN 2 LEVEL AMPLITUDE LINE FX send MUTE CHAN 3/4 LEVEL FX send AUX IN LEVEL BLUE TOOTH RETURN...
  • Page 11 DIR OUT R FX LEFT OUTPUT DIR 1/2 or MAIN SELECT LEVEL RIGHT OUTPUT LEDs SIGNAL CLIP LEFT CHAN ONLY TWEETER 3 BAND EQ MONO FX MIX WOOFER 16 FX MONITOR RIGHT OUTPUT FX bypass LED FX bypass FX bypass FOOTSWITCH AUX SEND...

  • Page 12: This Device Complies With Part 15 Of The Fcc Rules. Operation Is Subject To The Following Two Conditions

    Elite Acoustics Engineering Inc. warrants this product to be free of defects in material and workmanship (excluding battery) for a period of 1 year from the date of original retail purchase. Elite Acoustics Engineering Inc. warrants the Speaker’s Battery for 90 days from the date of original retail purchase.
