Glenayre Tsunami series Installation And Maintenance Manual

Wireless fast ethernet bridges (5.3 and 5.8 ghz, unii/le-lan) tsunami series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

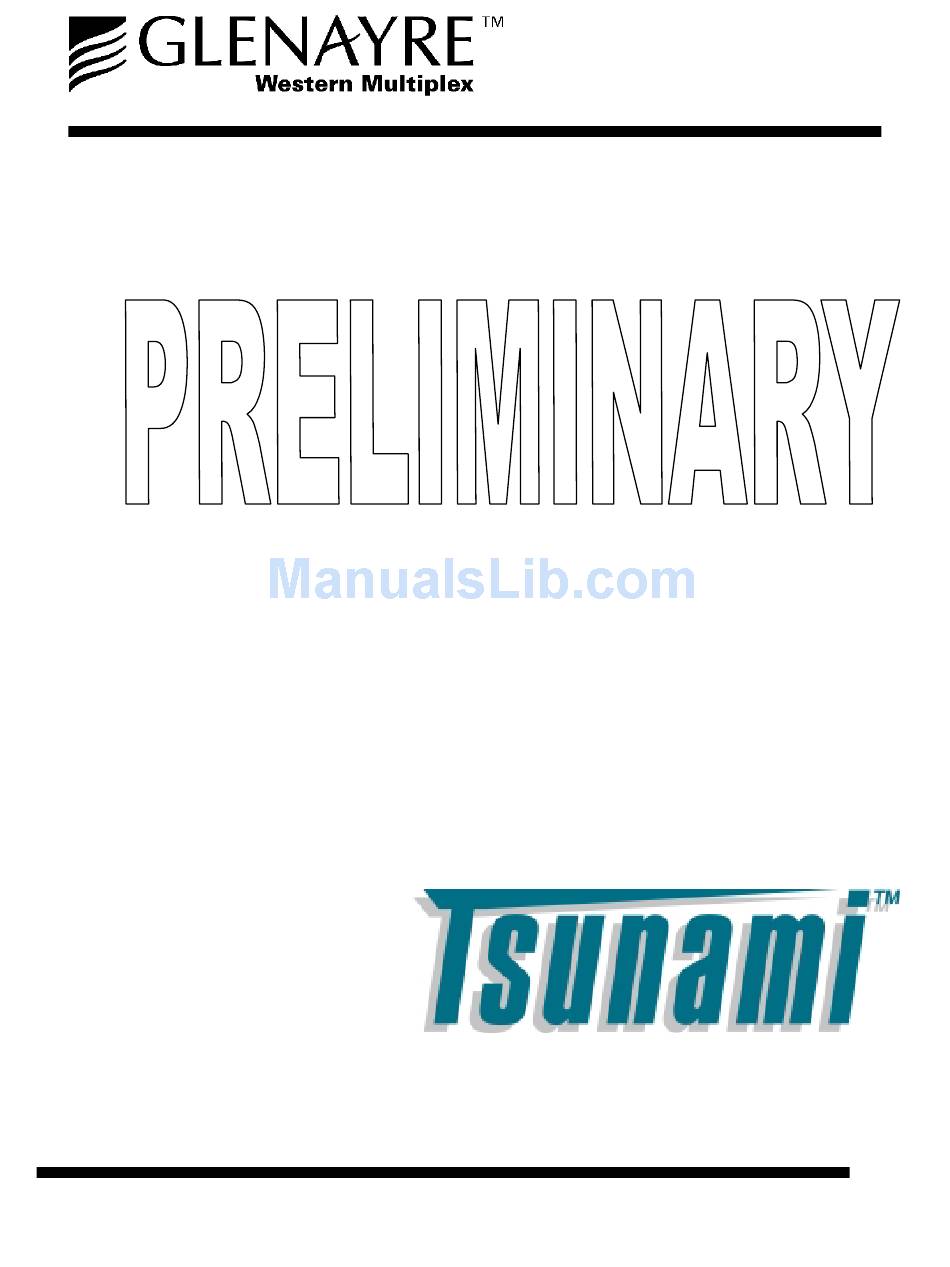

INSTALLATION AND
MAINTENANCE MANUAL
WIRELESS
FAST ETHERNETBRIDGES
(5.3 AND 5.8 GHz, UNII/LE-LAN)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tsunami series and is the answer not in the manual?

Questions and answers

Summary of Contents for Glenayre Tsunami series

  • Page 1 INSTALLATION AND MAINTENANCE MANUAL WIRELESS FAST ETHERNETBRIDGES (5.3 AND 5.8 GHz, UNII/LE-LAN)
  • Page 3 J U N E 1 9 9 9 Installation and Maintenance Manual Copyright © 1999 by Glenayre Western Multiplex. All rights reserved. No part of this manual may be reproduced without prior written permission from Glenayre Western Multiplex. The information contained in this manual is subject to change without notice. Glenayre...
  • Page 4 I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y S P R E A D S P E C T R U M R A D I O S J U N E 1 9 9 9 This page intentionally left blank...
  • Page 5 Shielded cables and I/O cords must be used for this equipment to comply with the relevant FCC regulations. Changes or modifications not expressly approved in writing by Glenayre Western Multiplex may void the user's authority to operate this equipment. This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 6 I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y S P R E A D S P E C T R U M R A D I O S J U N E 1 9 9 9 This page intentionally left blank...
  • Page 7 J U N E 1 9 9 9 WARRANTY GENERAL TERMS Glenayre Western Multiplex shall at its cost, ship the repaired All Definitions contained in Glenayre Western Multiplex's item or replacement to any destination within the United States Conditions of Sale (Glenayre Western Multiplex document number of America by carrier and method of delivery chosen by CS96-8), apply to the Warranty.
  • Page 8 INCLUDING ANY WARRANTIES OF FITNESS FOR A PURPOSE AND OF MERCHANTABILITY ARE PARTICULAR PURPOSE AND OF MERCHANTABILITY. EXCLUDED TO THE FULLEST EXTENT PERMITTED 6.2 GLENAYRE WESTERN MULTIPLEX SHALL NOT BE BY LAW. LIABLE IN TORT, INCLUDING LIABILITY IN 6.2 GLENAYRE WESTERN MULTIPLEX'S LIABILITY FOR...
  • Page 9 Glenayre Western Multiplex and provided to the Glenayre Western Multiplex. Customer; If a Customer fails to pay an Invoice when due, Glenayre Western "Shipping Date" means the actual date on which the Equipment Multiplex may, without prejudice to am other remedy, postpone...
  • Page 10 Equipment. liquidation are taken against the Customer; 10.3 Glenayre Western Multiplex reserves the right to charge a fee for the Customer makes an assignment for the benefit of returned equipment under Subparagraph 10.2(b) with the amount creditors or commits an act of bankruptcy or insolvency;...

  • Page 11: Table Of Contents

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Table of Contents...
  • Page 12 I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.11...
  • Page 13 I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Figures...

  • Page 15: How To Use This Manual

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 1.

  • Page 16: Icons

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Icons...

  • Page 17: Product Description

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 2.

  • Page 18: Specifications

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Specifications...

  • Page 19: Antenna / Antenna Coupling Unit

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 2.2.2...

  • Page 20: System (Single Hop Performance)

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 2.2.4...
  • Page 21 I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 System...

  • Page 22: Digital Line Interface

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 2.2.5...

  • Page 23: Auxiliary Connections

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 2.2.6...

  • Page 24: Temperature And Environment

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 2.2.7...

  • Page 25: Regulatory Information

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 2.2.9...

  • Page 26: Front Panel Description

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Front Panel Description...

  • Page 27: Test Points / Power Indicator

    The Tsunami system requires professional installation. Transmitted output power limits may apply when using this radio. Consult FCC, IC, Glenayre Western Multiplex or other regulatory authorities for limits which may apply. See Section 3.13.1 for details on setting output power.

  • Page 28: Alarm And Status Indicators

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 2.3.3...

  • Page 29: Controls

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 2.3.4...

  • Page 30: Connections

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 2.3.5...
  • Page 31 I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 AUXILIARY CONNECTIONS...

  • Page 32: Rear Panel Description

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Rear Panel Description...

  • Page 33: Installation Accessories

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Installation Accessories...

  • Page 35: Installation & Adjustments

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.

  • Page 36: Packing Items Identification

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Packing Items Identification...

  • Page 37: Before Installation Task List

    - Frequency plan determination - Power supply planning - Antenna (and accessories) purchase Only directional antennas should be used with Tsunami radios. These are typically flat panel or solid parabolic antennas. Glenayre Western Multiplex recommends maximum beamwidth of 10 degrees for directional systems.

  • Page 38: Line-Of-Sight And Path Clearance Guidelines

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.3.2...

  • Page 39: Rsl Calculation And Link Budget

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.3.3...

  • Page 40: Fade Margin Calculation

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.3.4...

  • Page 41: Availability Calculation

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.3.5...

  • Page 42: Frequency Plan Determination

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.3.6...

  • Page 43: Power Supply Planning

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.3.7...

  • Page 44: Antenna Planning

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.3.8...

  • Page 45: Tools Required

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Tools Required...

  • Page 46: Frequency Channel Plans

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Frequency Channel Plans...

  • Page 47: Mounting The Tsunami

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Mounting the Tsunami...

  • Page 48: Power Connection And Wiring

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Power Connection and Wiring...

  • Page 49: Dc Power Wiring

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.7.1...

  • Page 50: Figure 3-3: Negative Voltage Dc Connection

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Figure 3-3: Negative Voltage DC Connection...

  • Page 51: Ac Power Connection

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.7.2...

  • Page 52: Antenna Connection

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Antenna Connection...

  • Page 53: Transmission Line Connection

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Transmission Line Connection...

  • Page 54: Antenna Installation & Alignment

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.10 Antenna Installation &...
  • Page 55 I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 If a heading marker cannot be set sufficiently far away (for example when on a city building roof or...

  • Page 56: Figure 3-6: Typical Rsl Voltage Versus Received Signal Level (Rsl)

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Antenna alignment should enable the RSL to be peaked to the...

  • Page 57: Ethernet Interface Connection

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.11 Ethernet Interface Connection...

  • Page 58: System Turn-Up To Service

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.12 System Turn-up to Service...
  • Page 59 Isotropic Radiated Power (EIRP) limits which dictate the maximum output power that the Tsunami radio can transmit given the transmission line loss and the gain of the antenna. Consult with appropriate government agencies or Glenayre Western Multiplex if there is any question regarding maximum output power allowed.

  • Page 60: Figure 3-7: Typical Rf Output Power Versus Pwr Voltage

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Figure 3-7: Typical RF Output Power versus PWR Voltage...
  • Page 61 I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 For precision measurement of transmit output power, it is best...
  • Page 62 I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 - Antenna feed (coaxial/connector) problem...

  • Page 63: Table 3-C: Transmitter Output Power Adjustment

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 TRANSMITTER POWER (dBm)

  • Page 64: Output Power Adjustment

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.13 Output Power Adjustment...

  • Page 65: Additional Connections

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.14 Additional Connections...

  • Page 66: Figure 3-8: Vf Port Connection

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Dialing a...

  • Page 67: Alarm Connections

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.14.2...

  • Page 68: Table 3-E: Alarm Interface Connections

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 PIN 1...

  • Page 69: Config Port Operation

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.14.3...

  • Page 70: Figure 3-10: Rs-232 Config Port Connections

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.14.3.1...

  • Page 71: Aux Data (Digital Service Channel) Connection

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 3.14.4...
  • Page 72 I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Your Notes on the Tsunami Radio...

  • Page 73: Troubleshooting

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 4.

  • Page 74: Changing Frequency Plans

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Changing Frequency Plans...

  • Page 75: Using A Spare Terminal

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Using a Spare Terminal...

  • Page 76: Technical Support

    Customers are encouraged to troubleshoot the radio and link in accordance with the latter part of this section in this manual before contacting Glenayre Western Multiplex. Glenayre Western Multiplex also has a limited supply of Tsunami radios that can be loaned to out-of-service customers for installation while units are being repaired.

  • Page 77: Repair Policy

    Regardless, proper and adequate packaging must be used for shipments to protect the radio(s) from damage. Glenayre Western Multiplex can not be held responsible for any repairs due to inadequately packed materials. Damage caused by improper packing will likely result in higher repair costs and delays (refer to the Warranty section at the beginning of this manual).

  • Page 78: Front Panel Status Leds

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Front Panel Status LEDs...

  • Page 79: Rf Link Alarm

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 4.6.1...
  • Page 80 I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 If only one end has low RSL, this could be caused by low transmit output power from the opposite...

  • Page 81: Radio Fail Alarm

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 4.6.5...

  • Page 82: Far End Alarm

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 4.6.6...

  • Page 83: Errors In The Data Stream

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Errors in the Data Stream...

  • Page 84: Interference Countermeasures

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Interference Countermeasures...
  • Page 85 I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Antenna Polarization...

  • Page 86: Use Of A Spectrum Analyzer To Evaluate Potential Interference

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 4.8.1...

  • Page 87: Back-To-Back Testing

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Back-to-Back Testing...

  • Page 88: Figure 4-1: Back-To-Back Test Configuration

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Tsunami...

  • Page 89: Link Testing

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 4.10 LINK Testing...
  • Page 90 I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Your Notes on the Tsunami Radio...

  • Page 91: Appendices

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 5.

  • Page 92: Appendixb - Configuration Port

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Appendix B –...

  • Page 93: Appendixc - Rear Panel Data Connectors

    I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 AppendixC - Rear Panel Data Connectors...
  • Page 94 I N S T A L L A T I O N A N D M A I N T E N A N C E M A N U A L T s u n a m i F A M I L Y F A S T E T H E R N E T W I R E L E S S B R I D G E S J U N E 1 9 9 9 Your Notes on the Tsunami Radio...
  • Page 95 Index AC................................3-17 Accessories ..............................2-17 Alarm connections .............................3-33 Alarms................................3-28 Alignment, antenna ............................3-21 Antenna........................2-3, 3-3, 3-22, 3-28, 4-13 Antenna connection............................3-18 Antenna installation ...........................3-20 Antenna planning ............................3-10 Availability calculation ..........................3-7 Bit Error Rate...............................3-7 Buffer ..............................2-6, 5-1 Calculations ..............................3-5 Caution.................................1-2 Channel plan ..............................3-12 Coaxial cable..............................3-19 Collisions ..............................2-12 Connections ......................
  • Page 96 Power connection............................3-17 Power connection, DC ..........................3-15 Power supply planning..........................3-9 Professional installation ..........................iii, 1-1 Rear panel ............................2-16, 5-3 Receive signal level ............2-11, 2-13, 3-3, 3-5, 3-20, 3-21, 3-22, 3-27, 4-14 Receiver ...............................2-3 Regulatory.............................. iii, 2-9 REN ................................3-31 Repair................................4-5 RS-232 ........................... 2-15, 3-35, 3-36, 3-37 RSL ................................3-21 Shipping ..............................2-17, 3-1 Spares................................4-3...
  • Page 97 For ISO Purposes - Last Page of this Manual...
