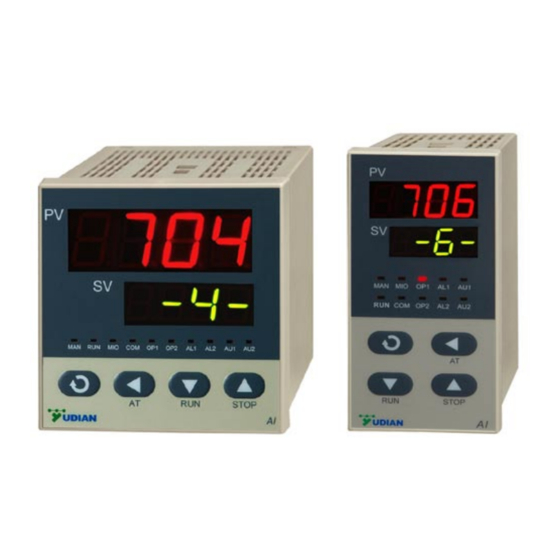

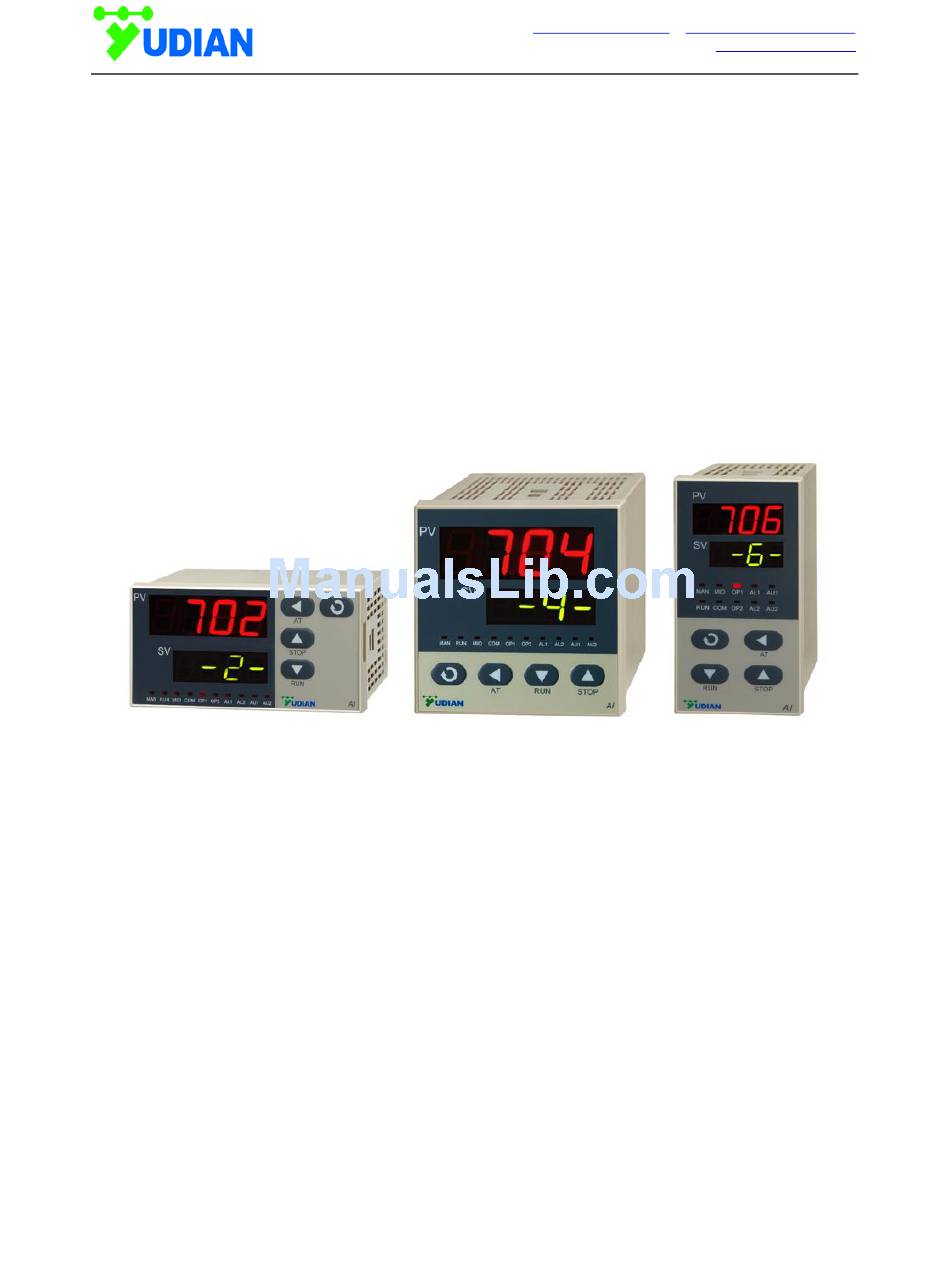

AI-702M/704M/706M
HIGH PERFORMANCE INTELLIGENT
MULTI-CHANNEL INDICATORS
Operation Instruction Version 7.7
(Ideal for measurement, indication, alarm, calculation and retransmission of
temperature, pressure, flow, level, humidity etc.)
Advertisement
Table of Contents
Summary of Contents for Udian AI-702M
- Page 1 Yudian (H.K.) Automation Technology Co. Ltd. Website: http://www.yudian.us http://www.yudian.com.hk Email: sales@yudian.com.hk Tel: +852-2770 8785 Fax: +852-2770 8796 AI-702M/704M/706M HIGH PERFORMANCE INTELLIGENT MULTI-CHANNEL INDICATORS Operation Instruction Version 7.7 (Ideal for measurement, indication, alarm, calculation and retransmission of temperature, pressure, flow, level, humidity etc.)
- Page 2 Tel: +852-2770 8785 Fax: +852-2770 8796 SUMMARY AI-702M, AI-704M and AI-706M multi-channel indicators provide 1-2, 1-4, 1-6 channels of independent process indications, and are ideal for the measurement, indication, alarm, calculation and retransmission of temperature, pressure, flow, level and humidity etc.
-
Page 3: Ordering Code
Tel: +852-2770 8785 Fax: +852-2770 8796 ORDERING CODE Designed with modular principle, AI-702M/704M/706M can be equipped with 6 modules on 6 sockets: M1, M2(MIO), M3(OUTP), ALM, AUX, and COMM. M1, M2 and M3 can be equipped with various input modules, each of which has 1or 2 analog input channels. ALM, AUX and M3(OUTP) can be equipped with relay output module, each of which has 1 or 2 alarm output channels. - Page 4 Yudian (H.K.) Automation Technology Co. Ltd. Website: http://www.yudian.us http://www.yudian.com.hk Email: sales@yudian.com.hk Tel: +852-2770 8785 Fax: +852-2770 8796 2 channel voltage inputs of 0-1V, 0-3V, √ √ √ 0-5V or 1-5V etc. 2 channel current inputs of 0-12mA, √ √ √ 4-20mA, 0-20mA etc.
-
Page 5: Technical Specification
Yudian (H.K.) Automation Technology Co. Ltd. Website: http://www.yudian.us http://www.yudian.com.hk Email: sales@yudian.com.hk Tel: +852-2770 8785 Fax: +852-2770 8796 TECHNICAL SPECIFICATION Input: Thermocouples: (with J1 module) K, S, R, E, J, T, B, N and WRe5-WRe26 Two-wire RTDs: (with J2 module that supports 2 inputs) PT100, Cu50, 0~80 ohm, 0~400 ohm Three-wire RTDs: (with J0 module that supports 1 inputs) PT100, Cu50, 0~80 ohm, 0~400 ohm... - Page 6 Yudian (H.K.) Automation Technology Co. Ltd. Website: http://www.yudian.us http://www.yudian.com.hk Email: sales@yudian.com.hk Tel: +852-2770 8785 Fax: +852-2770 8796 ● Temperature drift : ≤0.01%FS/ (typical 50ppm/ ) Electromagnetic compatibility: IEC61000-4-4, ±4KV/5KHz; IEC61000-4-5, 4KV Isolation withstanding voltage: Between power, relay contact and signal terminals ≥ 2300VDC; Between isolated eletroweak signal terminals ≥...
-
Page 7: Terminal Layout And Wiring
J2 module should be installed and resistance of each wire should be less than 2ohm. AI-702M/704M/706M can measure the lead wire resistance of two-wire method and save it to parameter “Sc”. However, the lead wire resistance changes as the temperature changes. If the lead wires has the same... -
Page 8: Basic Operation Description
Yudian (H.K.) Automation Technology Co. Ltd. Website: http://www.yudian.us http://www.yudian.com.hk Email: sales@yudian.com.hk Tel: +852-2770 8785 Fax: +852-2770 8796 required, it should be equipped with extra 24V power supply and J4 current module. FRONT PANEL AND OPERATIONS ○ Upper display window ① ○... - Page 9 Yudian (H.K.) Automation Technology Co. Ltd. Website: http://www.yudian.us http://www.yudian.com.hk Email: sales@yudian.com.hk Tel: +852-2770 8785 Fax: +852-2770 8796 Wait until “A” disappears, and then removes the short wire, and set “Loc” to 0 or 1. Now, the instrument comes back to normal measurement display mode, and the setting of parameter “Sc”...
-
Page 10: Parameter Description
Tel: +852-2770 8785 Fax: +852-2770 8796 PARAMETER DESCRIPTION *x refers to channel number, can be 1~2, 1~4, 1~6 for AI-702M, 704M and 706M respectively. Parameter Name Remarks Setting range x channel high alarm on when PVx (the present value of x channel)>H.ALx;... - Page 11 Yudian (H.K.) Automation Technology Co. Ltd. Website: http://www.yudian.us http://www.yudian.com.hk Email: sales@yudian.com.hk Tel: +852-2770 8785 Fax: +852-2770 8796 dIPx is set to select display resolution for channel x. Linear input: display resolution of dIP=0,1,2,3 are 0, 0.0, 0.00 and 0.000 Decimal point dIPx Thermocouple or RTD inputs: when dIP=0, the display position...
- Page 12 Yudian (H.K.) Automation Technology Co. Ltd. Website: http://www.yudian.us http://www.yudian.com.hk Email: sales@yudian.com.hk Tel: +852-2770 8785 Fax: +852-2770 8796 From right side to left side, the first, second digit of AOP respectively indicate the alarm output assignment of H.AL, L.AL, as below: _______ _______ ALPx =...
- Page 13 E=0, Normal; E=1, Set M2(MIO) and M3(OUPT) support single channel input only. For example, to set a AI-702M with 2 inputs, fast cyclic display, channel 1 input from three-wire RTD (J0 module on M1 socket), channel 2 input from thermocouple (J1...
- Page 14 Yudian (H.K.) Automation Technology Co. Ltd. Website: http://www.yudian.us http://www.yudian.com.hk Email: sales@yudian.com.hk Tel: +852-2770 8785 Fax: +852-2770 8796 Low limit of retransmission 0~110 When OUTP works as re-transmitter, OPL/OPH define the current low/high limit of re-transmisson. The unit is 0.1mA. For example, to transmit the channel 1 input 0~600 into 4~20mA output, the parameters should be set as below: High limit of...
- Page 15 Yudian (H.K.) Automation Technology Co. Ltd. Website: http://www.yudian.us http://www.yudian.com.hk Email: sales@yudian.com.hk Tel: +852-2770 8785 Fax: +852-2770 8796...
