Summary of Contents for Mixtile H17A

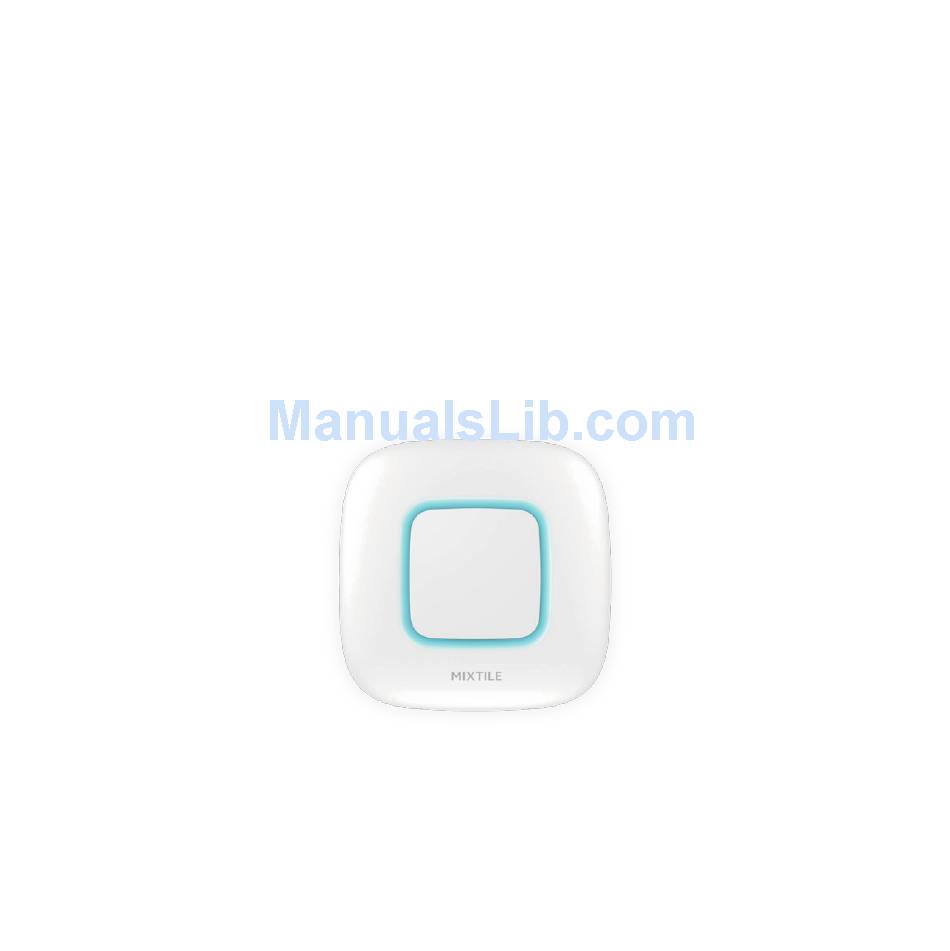

- Page 1 Mixtile Hub User Manual Home Automation Server Model: H17A MHV001...
-
Page 2: Table Of Contents
5.1 Assemble the Power Adapter ................. 9 5.2 Simple Setup ......................10 6. Getting Started ..................12 6.1 Download Mixtile App ................... 12 6.2 Create Account/Login (Optional) ................12 6.3 Add Mixtile Hub ....................12 7. Basic Operations ..................13 7.1 Boot the Hub ...................... -
Page 3: Preface
1. Preface Thank you for purchasing Focalcrest Mixtile Hub, the home automation server. In order to use your hub safely and effectively, please read this User Manual thoroughly before use and follow the instructions provided. Please keep this User Manual for future reference. -
Page 4: Safety Instructions
2. Safety Instructions Warning: These safety instructions provide important safety information and should be observed at all times. Please read them before using the product. General Safety • This product is designed to be used in dry indoor places. It is not water proof, please keep it away from rain or water. -
Page 5: Cleaning And Maintenance
Cleaning and Maintenance It is recommended that you clean the hub by wiping it gently using a soft and dry cloth. Do not use water, chemical substances or detergents. These may cause discoloration or corrosion to the product’s exterior, and may cause a fire or electric shock. -
Page 6: About Mixtile Hub
3. About Mixtile Hub 3.1 Overview Mixtile Hub is a home automation server that can connect to various smart home devices from different brands. It enables you to control and monitor your home within one app and automates your smart home devices to meet your desired scenarios. - Page 7 • App Control Simply adding your smart home devices to Mixtile App, you are able to control and monitor your home anywhere in the world, within one app. • High Security Mixtile Hub protects your data with multiple layers of security, and can automatically identify safe or risky device and alert you if necessary.
-
Page 8: Specification
3.2 Specification Model H17A Processor Allwinner H3 Communication IEEE 802.11b/g/n; 2.4GHz Wi-Fi Compliant ZigBee, Z-Wave Storage 8GB eMMC Memory 1GB DDR3 1333MHz Built-in Speaker 1.5W/8ohm Built-in Battery 2500mAh Rechargeable Lithium-ion Battery Adapter Input: AC 100-240V; 50/60Hz; 0.6A Output: 5V/2.5A Network Connection 2.4G Wi-Fi/Ethernet... -
Page 9: Parts And Functions
4. Parts and Functions Top View Status Light Back View Ethernet Port Power Port HDMI Port Reset Button USB Port Parts Functions Reset Button 1. Reset the network. See 7. Basic Operations. 2. Restore to factory settings. See 7. Basic Operations. Power Port The supplied power adapter converts AC power to DC power for use with this port. - Page 10 2. The device works normally. Spinning blue The device is ready for setup. Blink blue 5 times Identify Mixtile Hub. Spinning green Mixtile Hub is searching for sensors. Solid yellow 1. Network disconnected. 2. Sensors disconnected. Breathing yellow Sensors are low battery.
-
Page 11: Before Use
5. Before Use 5.1 Assemble the Power Adapter Before use, you need connect the AC adapter with the plug to assemble a ready to use power adapter. » Properly align the key in the plug and the slot in the AC Adapter, and finger- tighten the plug and AC Adapter to hold the adapter firmly in place. -
Page 12: Simple Setup
Hub. Warning: Only use the adapter and its accessary provided. Connect to the Internet Mixtile Hub can be connected to the internet through Wi-Fi or an active Ethernet Cable. a) Wi-Fi Connection » Follow the instructions in Mixtile App to complete the connection. - Page 13 b) Ethernet Cable Network Connection » Insert an active Ethernet Cable into the Ethernet port of the hub. Connect to TV (Optional) When the hub is connected to TV, you will be able to see the hub status on the TV.
-
Page 14: Getting Started
6.3 Add Mixtile Hub Follow the instructions on the app to add Mixtile Hub. A pairing code is required. You can find the code on the label pasted on the hub. Note: The first person who adds the hub will be assigned as the owner of the... -
Page 15: Basic Operations
7. Basic Operations 7.1 Boot the Hub The hub is about to work when it is plugged into the outlet. 7.2 Shut down the Hub The hub stops working when it is unplugged. Note: When the hub is unplugged, the built-in battery doesn’t work as well. During power outage, you need keep the hub plugged in, so that the built-in battery can power the hub automatically. -
Page 16: Legal Compliance
8. Legal Compliance Disposal Instructions This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recy- cling of waste electrical and electronic equipment. -
Page 17: Fcc Statement
FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 18 If you do not agree to such terms, you may not install, download, or otherwise use the open source software. A document containing the complete and current list of FOSS packages used in Mixtile Hub software can be found here:...
-
Page 19: Warranty And Service
Focalcrest reserves the right of final decision in all warranty cases. Focalcrest may interpret and revise the content of this warranty terms. 9.2 Service If you have any question, please contact us through www.mixtile.com. If it becomes necessary to return the device for repair, contact your local distributor for more information. - Page 20 Focalcrest ___________________________________________________________ For more information, please visit www.mixtile.com...
