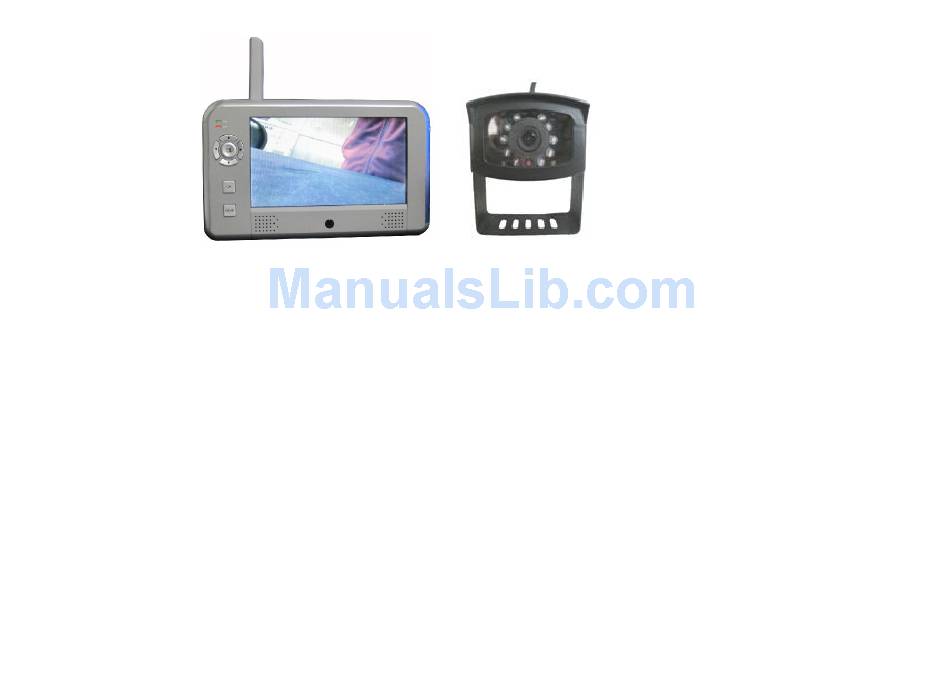

Luda Elektronik TractorCam S CRV8-M701R Operation Manual

TractorCam S Operation flow
Key Features & Functionality
•support up to 200 meter of Secured video transmissions
•Wireless Monitor with 7" LCD screen, support Video display from rear-view camera up
to VGA@25FPS (Single Camera); or QVGA@20fps (Multiple Camera)
•Support up to 4 camera connection, with Rear-camera fixed at CH1
•Wireless monitor support CH auto-switch functions, with a signal trigger cable connect
from the monitor to the power switch of the rear-gear warning light; whenever the rear-
gear is selected, wireless monitor will auto-switch to CH1 for rear-viewing, and switch
back to previous selected CH when R-gear is no longer selected.
•Camera Support DC Power input from 12~48V, and Monitor Support DC Power input
from 6~48V so this system can be installed to any type of car battery.
•Individual Camera Brightness Setting is available to suit different user installation
environment
•Video from each connected cameras can be display in the monitor in normal mode or
Mirror mode (The "M" Sign will be display in the screen) individually.
•Monitor support IR remote controller for easy operation.
