- Page 1 User Manual 5 Port HDR HDMI Switcher Model NO:HDSW0015M1...
- Page 2 Introduction Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Our series of converters, switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.
- Page 3 INTRODUCITON Feature： Five HDMI Inputs switch to one HDMI Output Support 4K@60Hz UHD signal input and output. Support Remote control and HDMI auto switch. LED Status Light shows clearly the working state. In 4K@60Hz HDMI UHD resolution, HDMI Input and Output distance can be up to 5m using the AWG26 standard HDMI Cable.

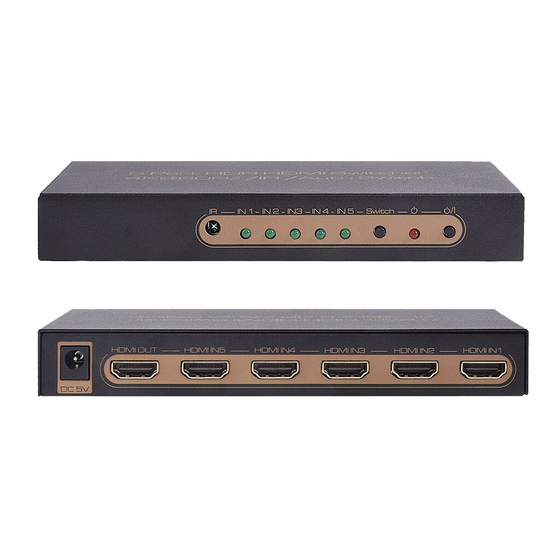

- Page 4 I： Remote IR Window Port. Picture 1.1 Rear Panel Showing A: HDMI Input One, Two, Three, Four, Five Port B: HDMI Output Port C: 5V DC Port Remote Button Function Showing...
- Page 5 “OFF” ：Standby Button, when device is working normally, it will go to Standby status if you press the button and also the Standby Led Status Light will go bright; “ON” ：Start Button, when device is Standby status, it will go to working normally if you press the button and also the Standby Led Status Light will go off;...
- Page 6 To connect the DC5V power adaptor with the DC5V port of the device. Then press again the Switch Button at device or press the 1,2,3,4,5 button at remote, it can choose the input channel that you want. Spec: HDSW0015M1 HDMI Resolution…………...24/50/60fs/2160P/1080P/1080i/720p/576p/576i/480P/480i Deep Color …………24/30/36bit/1080P/1080i/720p/576p/576i/480P/480i,24bit/2160P HDMI In/Out Supported Audio Format…………………………………………………………...
- Page 7 Notes: Pls use the machine as the instruction listed to keep the long use lifetime of the machine. 1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment. 2. All parts will be free from the strong shake, hit, fall. 3.
- Page 8 connected. 3、Check the system connection quality. 4、Check if the line is all good quality. 5、Check the cable quality. 1、To try again to connect the cable to be free from the Obscure Picture unsuccessful connection. 2、HDMI Cable Quality 1、Please confirm the setting position of audio mode No sound switch 1、Pls check if the film that stops the current has been...
