Subaru LEGACY 2003 Service Manual page 5

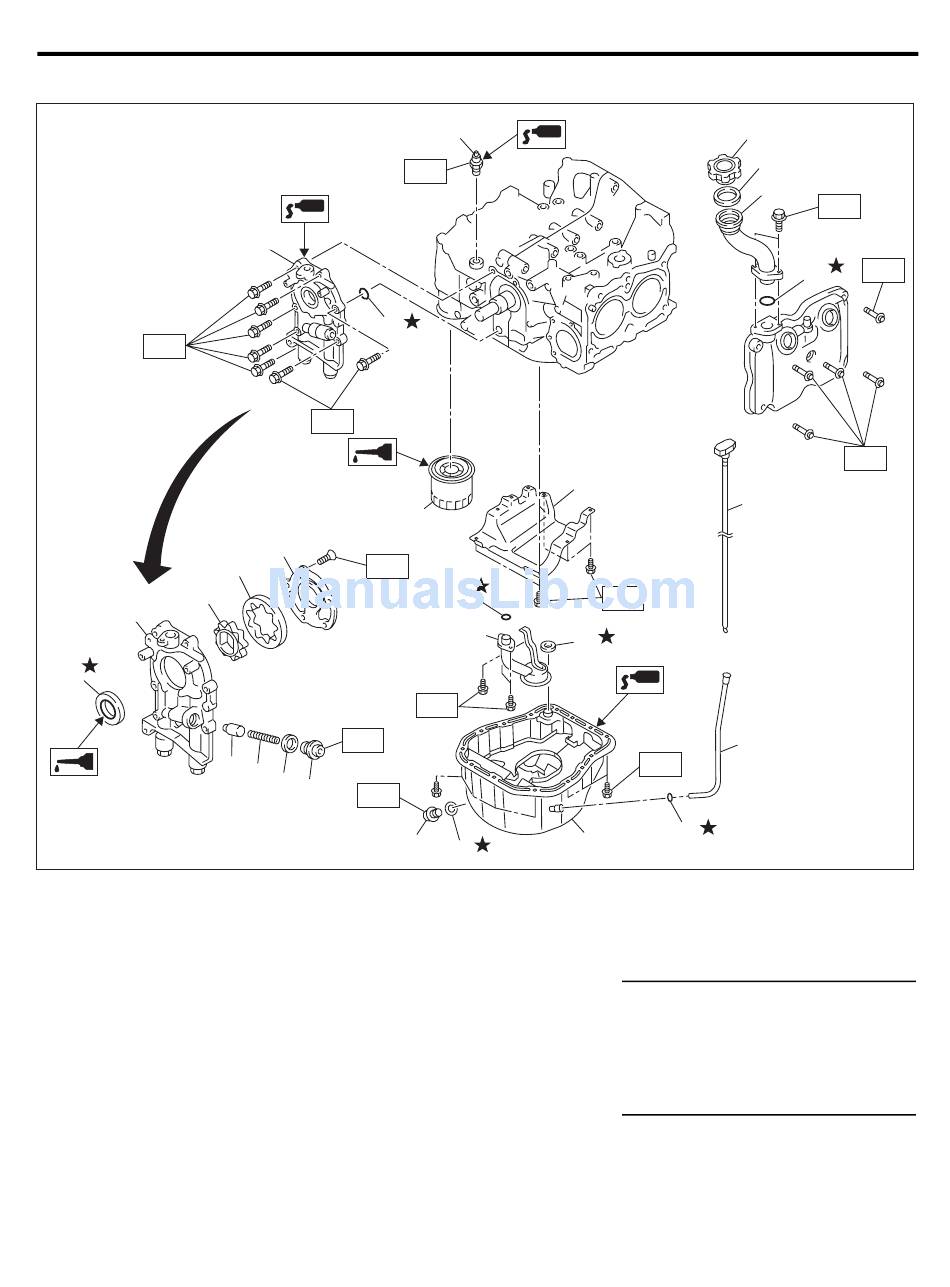

B: COMPONENT
T2
( 7 )
( 6 )
( 5 )
(1) Plug
(2) Gasket
(3) Relief valve spring
(4) Relief valve
(5) Oil seal
(6) Oil pump case
(7) Inner rotor
(8) Outer rotor
(9) Oil pump cover
(10) Oil filter
(11) O-ring
(12) Oil pump ASSY
GENERAL DESCRIPTION
(12)
(11)
T2
( 9 )
T1
( 8 )
T5
( 4 )
( 3 )
( 2 )
( 1 )
T5
(13) Oil pressure switch
(14) Oil filler duct
(15) O-ring
(16) Oil filler cap
(17) O-ring
(18) Baffle plate
(19) O-ring
(20) Oil strainer
(21) Oil level gauge guide
(22) O-ring
(23) Oil pan
(24) Oil level gauge
(13)
T4
(18)
(10)
(19)
(20)
(27)
T3
(23)
(25)
(26)
LU(H4SO)-3
(16)
(15)
(14)
(24)
T2
(21)
T1
(22)
(25) Drain plug
(26) Metal gasket
(27) Gasket
Tightening torque: N·m (kgf-m, ft-lb)
T1: 5 (0.5, 3.6)
T2: 6.4 (0.65, 4.7)
T3: 10 (1.0, 7.2)
T4: 25 (2.5, 18.1)
T5: 44 (4.5, 33)
LUBRICATION
T2
T1
(17)
T1
LU-00168
