AEG LAVAMAT68480FL User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

LAVAMAT68480FL
USER
MANUAL
EN

User Manual

Washing Machine

Advertisement

Table of Contents
loading

Related Manuals for AEG LAVAMAT68480FL

Summary of Contents for AEG LAVAMAT68480FL

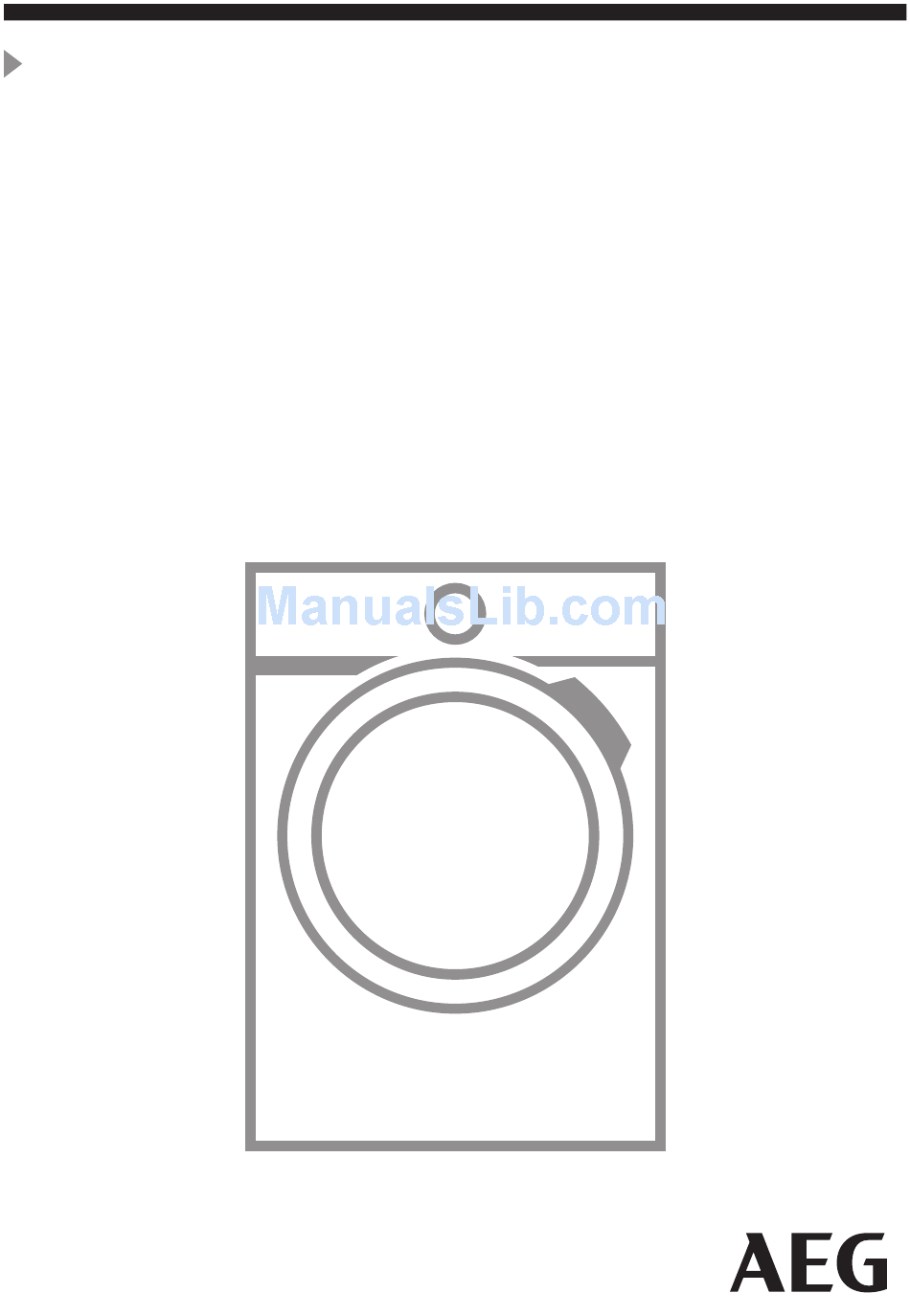

  • Page 1: User Manual

    LAVAMAT68480FL User Manual Washing Machine USER MANUAL...

  • Page 2: Table Of Contents

    14. TECHNICAL DATA....................23 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
  • Page 3 ENGLISH manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. 1.1 Children and vulnerable people safety This appliance can be used by children aged from 8 •...

  • Page 4: Safety Instructions

    If the mains power supply cable is damaged, it must • be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard. Before any maintenance operation, deactivate the • appliance and disconnect the mains plug from the socket.
  • Page 5 ENGLISH • This appliance complies with the • Make sure that all metal objects are E.E.C. Directives. removed from the laundry. • Do not wash fabrics which are heavily 2.3 Water connection soiled with oil, grease or other greasy substances. It can damage rubber •...

  • Page 6: Product Description

    3. PRODUCT DESCRIPTION 3.1 Appliance overview Worktop Detergent dispenser Control panel Door handle Rating plate Drain pump filter Feet for levelling the appliance 3.2 Fixing plate kit To limit vibration we recommend placing a waterproof wooden panel, at least 15 (4055171146) mm thick, under the appliance.

  • Page 7: Control Panel

    ENGLISH 4. CONTROL PANEL 4.1 Control panel description Cotton Prewash Cotton Eco 1400 Synthetics Quick 1200 Delicates Super Quick Wool/Handwash 30 Min - 3Kg Finish In Rinse Only Mix 20° Drain & Spin Easy Iron On/Off On/Off button (On/Off) Start/Pause touchpad (Start/Pause) Programme selection touchpad Finish In touchpad (Finish In) (Programmes)

  • Page 8: Programme Chart

    5. PROGRAMME CHART Programme Maximum load Programme description Temperature range Maximum spin (Type of load and soil level) speed Cotton 8 kg White cotton and coloured cotton. Normal soil 90°C - Cold 1400 rpm and light soil. 8 kg White cotton and fast-coloured cotton.
  • Page 9 ENGLISH Programme options compatibility Programme ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ Cotton ■ ■ ■ ■ ■ ■ ■ ■ ■ Cotton Eco ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ Synthetics ■ ■ ■...

  • Page 10: Consumption Values

    6. CONSUMPTION VALUES Stated values are obtained in laboratory conditions with relevant stand- ards. Different causes can change the data: the quantity and type of laundry and ambient temperature. Water pressure, the supply voltage and the temperature of inlet water may also affect the washing pro- gramme duration.

  • Page 11: Options

    ENGLISH Off Mode (W) Left On Mode (W) 0.48 0.48 The information given in the chart above is compliant with the EU Commission regulation 1015/2010 implementing directive 2009/125/EC . 7. OPTIONS 7.1 Temp. Use this option for heavy soil. When you set this option the programme With this option you can change the duration increases.

  • Page 12: Settings

    7.8 Finish In 7.9 Extra Rinse With this option you can set the number With this option you can add some rinses of hours in which you would like your to a washing programme. washing programme to be completed.

  • Page 13: Daily Use

    ENGLISH 10. DAILY USE 10.2 Using detergent and WARNING! additives Refer to Safety chapters. 1. Measure out the detergent and the 10.1 Loading the laundry fabric conditioner. 2. Put the detergent and the fabric 1. Open the appliance door conditioner into the compartments. 2.

  • Page 14: Setting A Programme

    10.4 Liquid or powder detergent When you set a prewash option, put the detergent for prewash phase directly into the drum. • Position A for powder detergent (factory setting). • Position B for liquid detergent. When you use the liquid detergent: •...

  • Page 15: Starting A Programme

    ENGLISH 10.7 Starting a programme indicator of button Start/Pause flashes. without the Finish In option b. Touch the button until the Touch the button Start/Pause . indicator above this button goes • The indicator of the button Start/ off. Pause stops to flash and stays on. Touch the button Start/Pause •...

  • Page 16: Hints And Tips

    1. Touch the button Start/Pause to Draining the water: pause the appliance. 1. To drain the water. 2. Wait until the indicator goes off. • Touch the button Start/Pause . 3. You can open the door. The appliance drains the water 4.

  • Page 17: Care And Cleaning

    ENGLISH • Be careful with the curtains. Remove • Obey the instructions that you find on the hooks and put the curtains in a the on packaging of these products. washing bag or pillowcase. • Use the correct products for the type •...

  • Page 18: Maintenance Wash

    Regularly examine the drum to prevent • Select the cotton programme with the limescale and rust particles. highest temperature with a small quantity of detergent. To remove rust particles use only special products for washing machines. Do this 12.4 Door seal separately from the laundry wash.
  • Page 19 ENGLISH 12.6 Cleaning the drain filter Do not clean the drain filter if the water in the appliance is hot. Regularly check the drain pump filter and make sure that it is clean. Repeat the steps 2 and 3 until the water stops flowing out.
  • Page 20 Always keep a rag nearby to Make sure that the impeller dry up any water spillage. of the pump can rotate. If it does not rotate, contact the Authorised Service Centre. Make sure also that you tighten the filter correctly to prevent leakages.

  • Page 21: Troubleshooting

    ENGLISH 12.8 Emergency drain 0° C, remove the remaining water from the inlet hose and the drain pump. Because of a malfunction, the appliance 1. Disconnect the mains plug from the cannot drain the water. mains socket. If this occurs, do steps (1) through (8) of 2.
  • Page 22 WARNING! contact the Authorised Service Deactivate the appliance Centre. before you do the checks. 13.2 Possible failures Problem Possible solution • Make sure that the mains plug is connected to the mains socket. • Make sure that the appliance door is closed.

  • Page 23: Technical Data

    ENGLISH Problem Possible solution • Make sure that the couplings of the water hoses are tight and there is not water leakages. There is water on the • Make sure that the water inlet hose and the drain hose have floor.

  • Page 24: Environmental Concerns

    Level of protection against ingress of solid particles IPX4 and moisture ensured by the protective cover, ex- cept where the low voltage equipment has no pro- tection against moisture Water supply pressure Minimum 0,5 bar (0,05 MPa) Maximum 8 bar (0,8 MPa)
  • Page 25 ENGLISH...
  • Page 26 www.aeg.com...
  • Page 27 ENGLISH...
  • Page 28 www.aeg.com/shop...
