*71378*
71378
EDA/HEDA Mount
L Screw pack information is on page 4.
Improper installation or regulation may result in personal injury or property damage.
An auxiliary stop is recommended at the hold-open point or where the door cannot swing 180º.
EDA (see page 2)
Right Hand
Door
Customer Service
1-877-671-7011
www.allegion.com/us
1250 Series

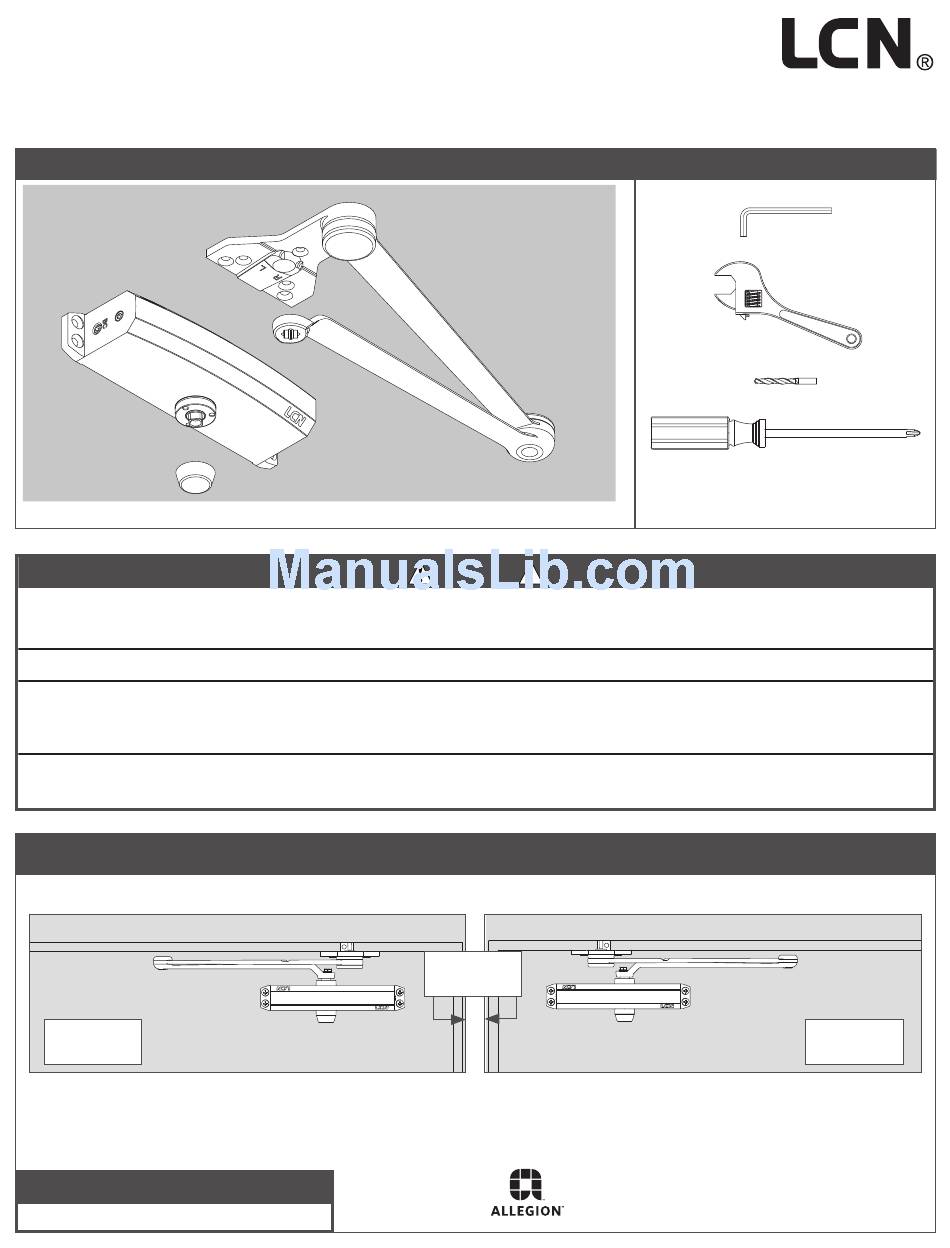

PARTS
Follow all instructions carefully.
For questions, call LCN at 877 - 671 - 7011
Hold open arms must not be installed on fire rated doors.
Opening the regulation valves too far may result in the closer leaking oil!
This may result in closer and property damage, and personal injury.
FOLLOW ALL INSTRUCTIONS CAREFULLY.
DO NOT USE THE CLOSER AS A DOOR STOP!
Choose Installation Type
CAUTION
Hinge Edge
of Door
1
Installation Instructions
TOOLS
B\cx" or 4mm Hex Wrench
Adjustable wrench
Z\," Drill Bit
Phillips Head Screwdriver
L Hold Open wrench info is on page 4.
Left Hand
Door
© Allegion 2017
Printed in China
71378 Rev. 07/17-c
Patent Pending
Advertisement
Related Manuals for LCN 1250 Series
Summary of Contents for LCN 1250 Series
- Page 1 Improper installation or regulation may result in personal injury or property damage. Follow all instructions carefully. For questions, call LCN at 877 - 671 - 7011 Hold open arms must not be installed on fire rated doors. Opening the regulation valves too far may result in the closer leaking oil! This may result in closer and property damage, and personal injury.
- Page 2 Center Line of Center Line of Door Frame Stop Edge Optional Fifth Hinge/Pivot Hinge/Pivot hole spacer 1250 Series P.A Mount - EDA Arm © Allegion 2015 Printed in U.S.A. 71383 Rev. 01/15-a Frame Bottom Frame Lip Edge Separate Before Using...
- Page 3 Closer Valve Adjustment Check closing time, and adjust closer if needed. c. Latch Speed- this controls door speed during the last few degrees of door closing. CAUTION 3. Turn the valves clockwise to decrease door speed, and counterclockwise to increase door speed. The latch speed and Opening the regulation valves (described below) too main speed should be adjusted together.
-
Page 5: Servicio Al Cliente
La instalación o regulación incorrecta puede resultar en lesiones personales o daño a los bienes. Siga todas las instrucciones con atención. En caso de duda, llame a LCN al 877-671-7011 Los brazos para mantener abierto no deben instalarse en puertas con clasificación ignífuga. - Page 6 Espaciador del Línea central de la quinto orificio Línea central de la bisagra/del pivote bisagra/del pivote opcional 1250 Series P.A Mount - EDA Arm © Allegion 2015 Printed in U.S.A. 71383 Rev. 01/15-a Frame Bottom Frame Lip Edge Separate Before Using...
- Page 7 Ajuste de la válvula del mecanismo de cierre b. Velocidad principal: controla la velocidad de la puerta Compruebe el tiempo de cierre y ajuste el mecanismo de cierre durante la mayor parte del movimiento de cierre. de ser necesario. c. Velocidad del pasador: controla la velocidad de la puerta PRECAUCIÓN durante los últimos grados del cierre de la puerta.
-
Page 9: Service À La Clientèle
Une installation inadéquate ou le non-respect des règlements peut causer des blessures ou des dommages matériels. Suivez attentivement toutes les instructions. Pour toute question, appelez LCN au 877-671-7011. Les bras de retenue ne doivent pas être installés sur les portes coupe-feu. - Page 10 Door Frame Stop Edge Centre de la facultative pour Centre de la charnière/pivot cinquième trou charnière/pivot 1250 Series P.A Mount - EDA Arm © Allegion 2015 Printed in U.S.A. 71383 Rev. 01/15-a Frame Bottom Frame Lip Edge Separate Before Using...
- Page 11 Réglage de la soupape du dispositif de fermeture Vérifiez le temps de fermeture et réglez le dispositif de fermeture b. Vitesse principale - contrôle la vitesse de la porte durant au besoin. presque tout le mouvement de fermeture. c. Vitesse d’enclenchement - contrôle la vitesse de la porte MISE EN GARDE durant les derniers degrés de la fermeture.
