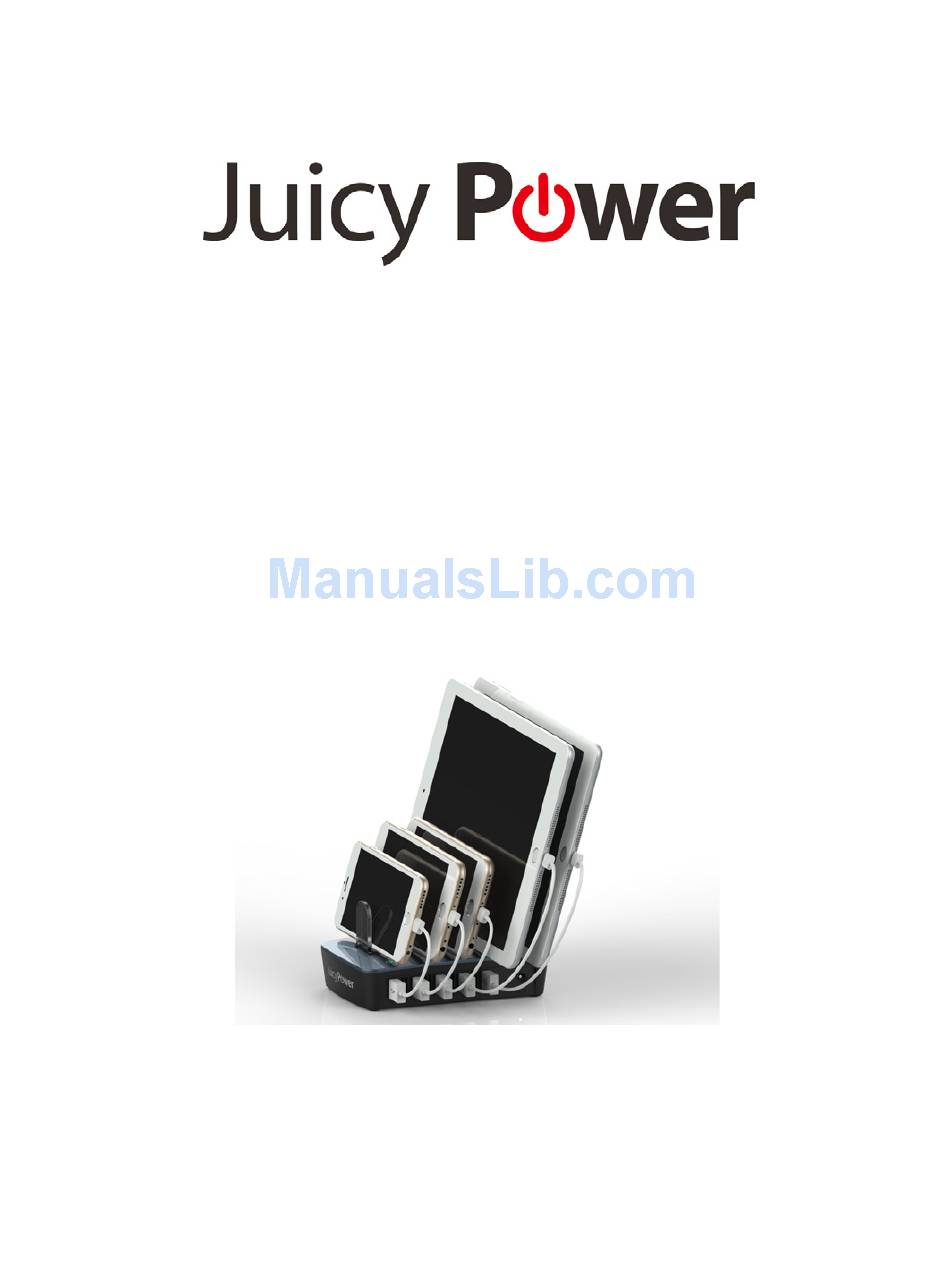

- Page 1 ® 5 Port USB Qualcomm Quick ™ Charge 2.0 technology rapid charging station User Reference Guide AP4-0011A...
- Page 2 Key Features & Benefits Minimize clutter and reduce workspace mess, charging up to 5 devices from a single outlet. Charge your device up to 75% faster than when ®...
-
Page 3: Specifications
Specifications 5 USB Charging Port 1st port: Port Quick Charge 2.0 /smart charging support 2nd to 5th port: Smart charging support Input AC 100-240V / 50-60HZ DC 5V/2.4A (Max) Each Port Output Quick Charge 2.0 Port 5V/9V/12V (Max.) Power DC 19V / 3.15A, 60W (Max.) Each Interval 0.75 inch Space... - Page 4 Product Layout ON / OFF Touch Button • Power Jack USB Charging Quick Charge 2.0 Support Port (x5) Figure 1: 5 Port USB Quick Charge 2.0 Rapid Charging Station ON / OFF Touch button: Press to turn on / off the charging station.
- Page 5 Out sid e Insid e Plu g d ia m e te r d iam et er le ng t h Neg at ive/ Posit ive (OD) (ID) 5.5(m m ) 2.5(m m ) 12(m m ) *Ce nt er pin fo r po sit ive vo lt ag e and t h e out e r sh ie ld for n eg at ive volta ge Table 1: Power Plug Specifications Figure 2: Power Supply &...
- Page 6 5. Press ON/OFF Touch button to power on the charger station,and verify the blue LED is lit. 6. Plug your USB cables into USB charging port to charge your USB-power devices. Application 5 Port USB Quick Charge 2.0 Rapid Charging Station is for home and business use.
-
Page 7: Troubleshooting
Troubleshooting If the charger station isn't functioning properly: Check that the charger station is plugged into a functioning wall socket. Check that the green LED on the power adapter is lit to ensure that it is receiving power. - Page 8 Warranty Statement This warranty covers the original purchaser and guarantees that the product be free of defects in materials or workmanship for one (1) year from the date of product purchase. Copyright Statement 5 Port USB Quick Charge 2.0 Rapid Charging Station is a trademark of AVLT-Power Inc.
