Summary of Contents for Radio Engineering Industries VR-6100D

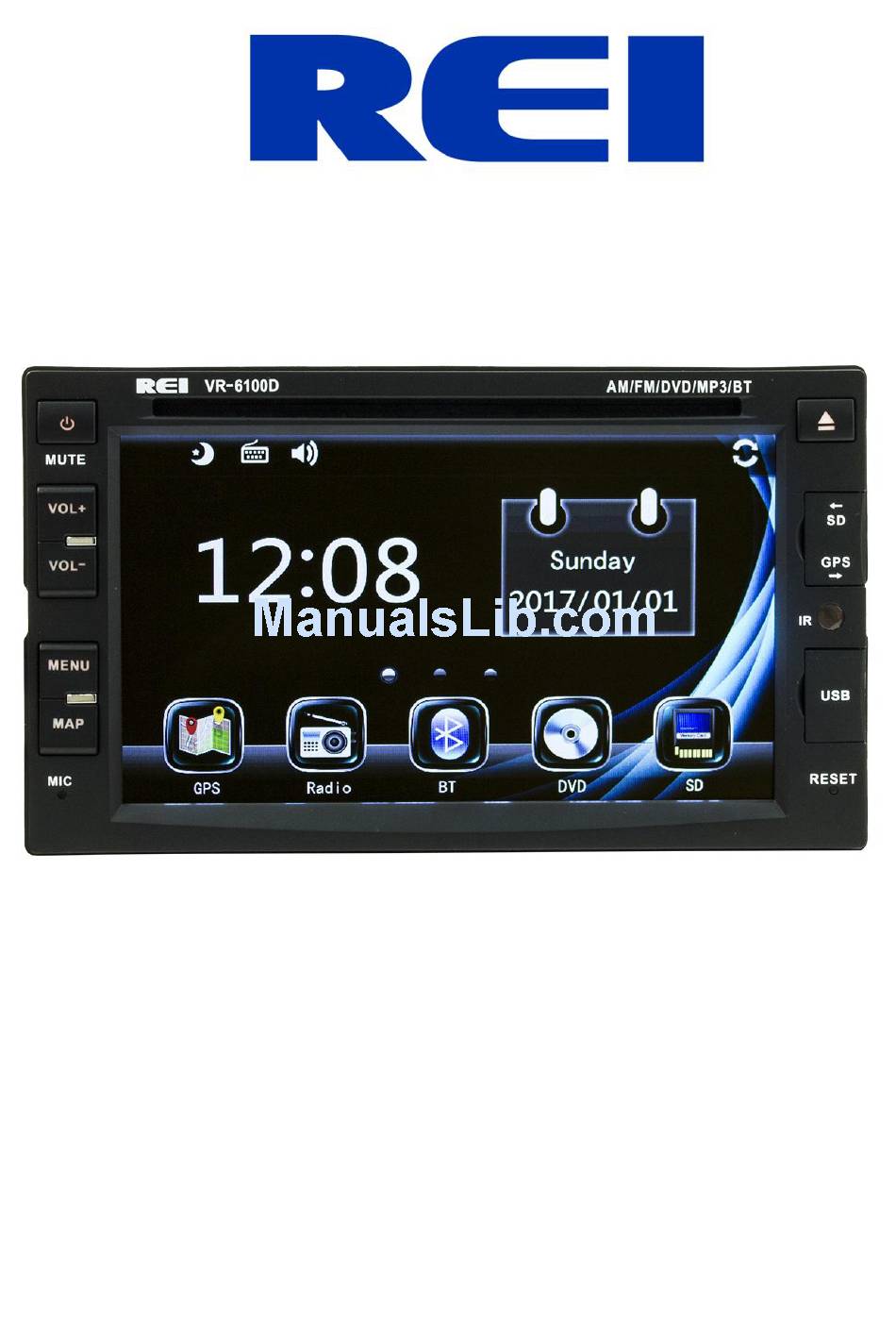

- Page 1 6.2” Touch Screen AM/FM Multimedia Receiver with CD/DVD, USB, Auxiliary A/V Inputs, & Bluetooth Audio Streaming ® Installation/ Operation Manual VR-6100D 50W x 4...
- Page 2 1-877-726-4617 Toll Free USA & CANADA IF ADDITIONAL INSTALLATION COMPONENTS ARE NECESSARY, CONTACT YOUR ** OEM /FACTORY WIRING HARNESS ADAPTERS ** ANTENNAS & ANTENNA ADAPTERS ** SPEAKERS & GRILLS Radio Engineering Industries, Inc. 6534 “L” Street Omaha, Nebraska 68117 (800)228-9275 www.radioeng.com Your player will play commercial DVDs with region code labels on them.
-
Page 3: Table Of Contents
CONTENTS Front controls and Indicators........................4 Home Screen............................5 Setup..............................6 Navigation Path............................7 Setting the Time............................10 Changing the Wallpaper ........................13 Connecting a Bluetooth® Device......................14 Bluetooth® Phone Operation........................15 Recent Calls............................16 Bluetooth® Setup..........................16 Phone book............................17 Bluetooth®... -
Page 4: Front Controls And Indicators
FRONT CONTROLS AND INDICATORS 1. Power/Source Button Press and HOLD the Power Button to turn the unit ON or OFF. Press this button to MUTE audio. 2. Volume Buttons Press to adjust the volume level Up or Down. 3. Menu/MAP Buttons Press MENU button to access the radio main screen. -
Page 5: Home Screen
HOME SCREEN From the HOME screen you can use the touch screen to change the source. To access the HOME screen, touch the HOME button in top left corner of the screen or press the MENU button. Touch either the Radio, BT Phone, Setup, DVD, A/V IN, USB1/2, SD, Rear View, or BT Music to change to the corresponding source. -
Page 6: Setup
SETUP Press the SETUP icon on the HOME page to access the Setup pages: Use the touch screen and swipe “up” to access page 2 as shown below: Use the arrows on the right side of the page to access the desired options. Page | 6... -
Page 7: Navigation Path
1) MAP, NAVIGATION PATH location, sets the location of the mapping software (Currently Reserved for future use) 2) BEEP ON/OFF Switches the clock display ON/OFF when is enabled video on the front panel. 3) BOOT LOGO SET The user can change the initial Boot-up logo screen. First enter 3368 in the screen below: Page | 7... - Page 8 Next, they can choose from a list of factory options, or select USER and choose a custom 800x480.bmp file to load using a uSD card. (Card Not Included) 4) EQ SET The Equalizer adjustment screen allows the user to easily adjust the audio system to meet the acoustical characteristics of the vehicle.
- Page 9 5) Backlight Set Allows the user to customize the backlight settings of the LCD screen. Page | 9...
-
Page 10: Setting The Time
6) Date and Time Touch above or below the highlighted area of the screen, then slide to move settings either up/down or use the arrows on the right. 7) Reverse Video Mirrored ON/OFF Mirrors the input image from the Back-up camera when triggered. 8) Mute When Reversing ON/OFF Mutes the SOURCE audio when the REVERSE input is triggered 9) BT Enable ON/OFF... - Page 11 11) Calibration Press the “check” icon to continue, the “X” to exit: Touch only the crosshairs as it changes locations to calibrate the touch screen controls. 12) System Info Displays the firmware on the Multimedia player. Version may vary. Page | 11...
- Page 12 GPS SIGNAL Use this ICON to display the current GPS status. If optional mapping mapping software is used (Currently Reserved for future use), the GPS icon allows for access to the software. Page | 12...
-
Page 13: Changing The Wallpaper
WALLPAPER Use this ICON to change the desired background image on the screen to change. If the user has a custom image, it must first be loaded onto a microSD card with a resolution of 720*480 and saved as a .BMP file. Then press the USER icon on the bottom of the page to access the custom image files on the card, and select from available images. -
Page 14: Connecting A Bluetooth® Device
3. Access the” Look for devices” feature of the Mobile device and begin searching. After searching, the Radio should appear in the list of devices as VR-6100D. Press to accept. 4. A prompt to bond should appear on your Mobile device. Press to accept and continue the process. -
Page 15: Bluetooth® Phone Operation
BLUETOOTH® PHONE OPERATION Use this ICON to access the built in Bluetooth. 1. Bluetooth® Status: Displays connection status of the Radio and the incoming or outgoing phone number. The connected Phone ID is also displayed. 2. Number keys: Touch 0-9,*, # to enter the phone number you wish to dial. 3. -
Page 16: Recent Calls
RECENT CALLS 1. Display a list of all RECEIVED calls. 2. Displays a list of all DIALED calls. 3. Displays a list of all MISSED calls. 4. Press to DELETE all calls in the logged calls list. BT SETUP Press UNLINK or LINK to connect or disconnect from a paired device ... -
Page 17: Phone Book
PASSKEY SETUP 1. Input 4 number: This is the customizable PASSKEY necessary to pair a Bluetooth® device. NOTE: If the number is changed, it does NOT affect previously paired devices. PHONEBOOK BUTTON Accessing the Phonebook menu, the user has the following options: 1. -
Page 18: Bluetooth® Audio Streaming
SEARCH Press the magnifier to search contacts BLUETOOTH® STREAMING AUDIO BUTTON The unit allows you to play back audio files from your mobile device using a Bluetooth® connection. The Radio can control a Bluetooth® audio player via Advanced Audio Distribution Profile (A2DP). Bluetooth® audio players (or Bluetooth®... - Page 19 While listening to audio the following functions are available: 1. PREVIOUS button: Touch to play the previous track. 2. PLAY/PAUSE button: Touch to pause playback. Touch again to resume playback. 3. NEXT button: Touch to play the next track. NOTE: When there is an incoming call, the song will be paused.
-
Page 20: Am/Fm Operation
AV IN OPERATION Select the AVIN icon to play Analog audio/Video when connected to the rear A/V input RCA’s. The unit can increase or decrease the volume of the connected device. All other controls are done on the connected device. AM/FM OPERATION Select the RADIO icon to use the built in AM/FM tuner. - Page 21 1. Home button: Press to return to the HOME screen. 2. Manual Tune DOWN button: Press to tune to lower radio frequencies. 3. Preset Memory/Recall buttons: Press momentarily to select the displayed preset station. Press and hold any button to preset the current station to the button being pressed.
-
Page 22: Usb/Microsd/Cd Media
USB1 (front) / USB2 (rear) / microSD / CD Media Operation Insert a USB/micro SD/ or CD into the radio and it will automatically switch to this input and begin playback of compatible media files. If in any other source, press the HOME button and change the source to USB1/USB2/SD to begin playback. - Page 23 If ID3 tag information is present, it will display automatically on the front LCD as shown below: 1. PLAY/PAUSE button: Touch to pause playback. Touch again to resume playback. 2. PREVIOUS button: Touch to skip to the previous track or chapter. 3.
-
Page 24: Dvd Operation
The file access button allows access to different file types: 15. Selects Folder View: Touch the icon to display the folder/file hierarchy. Touch the folder icon twice and the contents of the folder will be displayed. 16. Selects Available AUDIO Files: Touch the audio file icon to display the audio available files. - Page 25 To begin playback of a DVD, insert a Disc into the top disc slot, play should begin automatically. You cannot insert a disc if there is already a disc in the unit or if the Radio is off. A blank screen will be shown for playback control as shown below.
- Page 26 PAGE 2 of 2 Disc MENU button: Touch to access the disc MENU. 2. ZOOM In button: press to Zoom in by 2X, 3X, 4X, 1/ 2, 1/3 or 1/4. 3. ZOOM Out button: press to Zoom out by 2X, 3X, 4X, 1/ 2, 1/3 or 1/4. TITLE button: Touch to access the TTLE MENU when available.
-
Page 27: Back-Up Camera Operation
BACK-UP CAMERA OPERATION The Radio has rear Back-up camera input. You must install the Back-up camera Composite video out to the BROWN CAMERA RCA input of the Radio. The PINK “Back-up” trigger wire must then be connected to the +12V DC REVERSE GEAR lamp indicator lead of the vehicle. -
Page 28: Remote Control
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by REI is under license. DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. DivX Certified® to play DivX®... - Page 29 NUMBER (1-10) BUTTONS In radio mode, press number key 1-6 to store up to 6 radio stations. In DVD/USB/microSD mode, press any number 1-9 for the desire track. Press 10+ to increment the number by 10. SEEK+/- BUTTONS In radio mode, press and hold to SEEK stations. Press and release to manually tune stations. In DVD/USB/microSD mode, press and hold to advance x2, x4, x8, or x20.
-
Page 30: Troubleshooting
TROUBLE SHOOTING Problem Cause Solution Unit will not power on. No power to BATTERY wire or ACC wire, Check for both ACC & BATTERY voltage blown 10A main fuse. with Multi-meter, check all fuses. Cannot tune radio stations. The antenna cable is not connected. The Connect the antenna cable. -
Page 31: Radio Installation
RADIO INSTALLATION ISO INSTALLATION: For installations that do NOT require the use of the DIN collar. The radio has threaded holes in the chassis side panels for ISO mount applications. If necessary, four M5x10mm screws are included with the hardware pack to assist you. COLLAR INSTALLATION: RECOMMENDED CUTOUT DIMENSIONS Page | 31... - Page 32 Place the DIN collar into the dash opening. Bend the tabs outward as shown on the drawing below to lock into place. Pass the harnesses and antenna cable through the DIN collar, and connect to the back of the radio. Verify clearance; then gently insert the radio into the DIN Collar until both spring clips are locked into place.
-
Page 33: Radio Removal
For installations requiring additional support, install a rear support bracket as shown below: RADIO REMOVAL To remove the radio when installed using the DIN collar, remove the Face Plate is installed. Then insert the removal keys in both sides to release the lock clips. Page | 33... -
Page 34: Electrical Connections
ELECTRICAL CONNECTIONS NOTE: During Microphone operation, the front audio channels are” muted” to avoid microphone feedback in the drivers area. Power Speaker Harness Mic 1 Input (Primary) Mic 2 Input (Secondary) Mic 2 Volume control (Requires optional REI P/N 511615) A/V Harness **An optional USB Panel mount extension is available (P/N 512485), contact an REI sales representative for details... -
Page 35: Specifications
SPECIFICATIONS: General Specifications (10.0 –15.6V allowable) Operating Voltage Maximum Current Consumption 10A (15mA Standby) Handbrake Trigger Ground Backup Camera trigger 12V DC POWER OUTPUT Continuous Output (4Ω, 1kHz at 10% THD) 4 x 22 Watts Maximum Power Output 4 x 50 Watts Speaker Impedance 4-8 Ohms FM STEREO RADIO... - Page 36 L1 (1575.42MHz) MONITOR 6.2” Measured Diagonally (16:9 Widescreen) Screen Size Screen Type TFT LCD, LED Backlighting Resolution (800*480) * specifications and design are subject to change without notice. Radio Engineering Industries, Inc. radioeng.com Rev A.0 Date: 4-26-17 Page | 36...
