Fleetworks FLTW-7633 Installation Instructions

2013-Current RAM Truck Rear Vision
RCA and Factory Display Harnesses (Kit part number
FLTW-7633)
Kit Contents:
Chassis Harness
1 bubble bag containing:
Tailgate Handle Camera
1 bag containing:
8.4" Factory Touch Screen Jumper Harness
2 pieces ½" glued heat shrink tube
These instructions
Note: We strive to provide accurate and up-to-date installation instructions.
IMPORTANT: Verify kit contents are complete against list above before beginning installation.
Preparation
1. Ensure all lamps and accessories are OFF.
2. Ensure ignition switch is in the OFF position.
3. Loosen negative battery cable bolt. Remove
negative battery cable from terminal and position
away from battery
4. Wait one (1) minute prior to working on vehicle to
assure SIR roof rail airbag system has been disabled
for your safety
Install Camera into Tailgate
5. Lower Tailgate and (if equipped) remove plastic
Tailgate Protector.

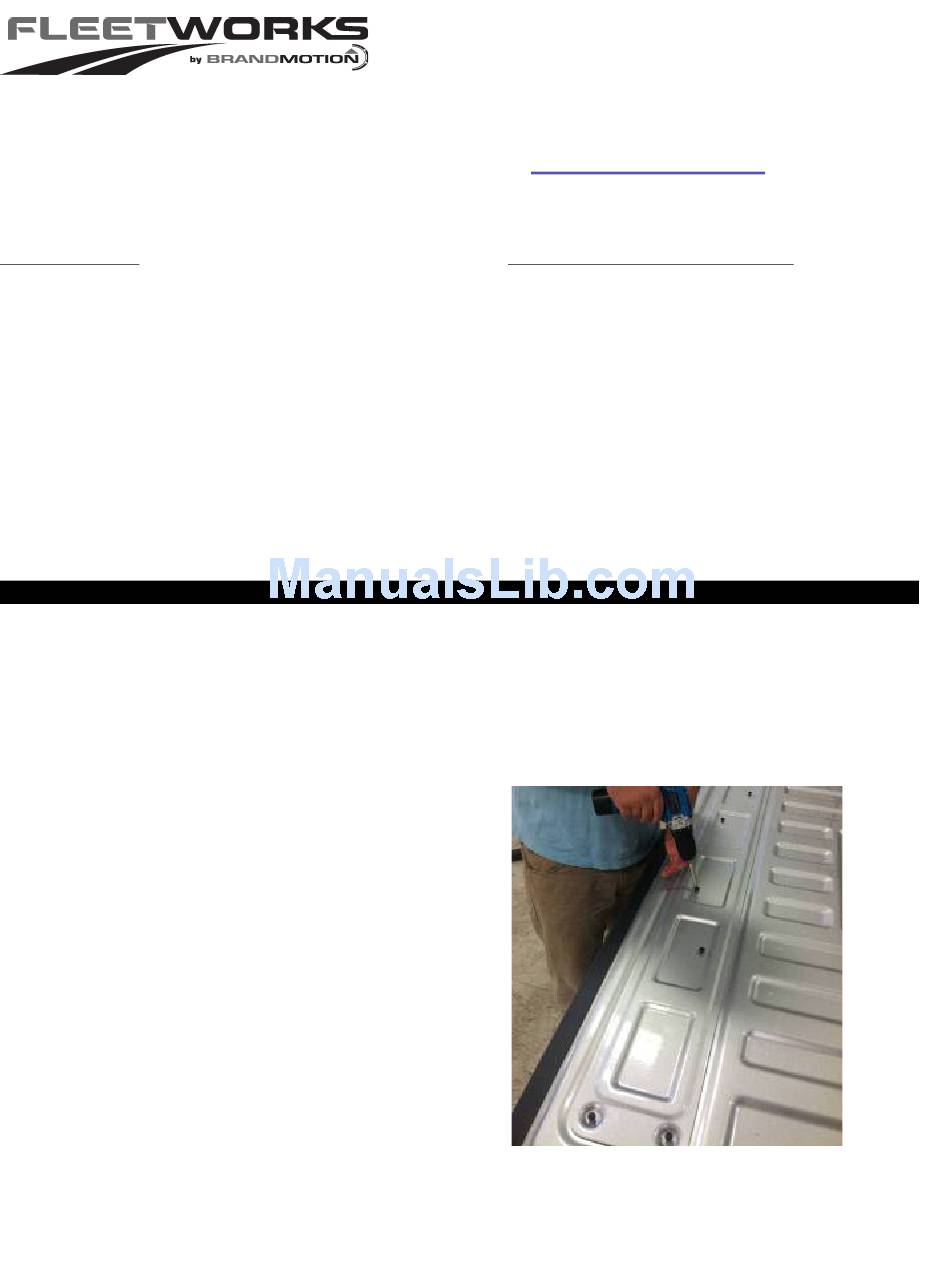

6. Remove the Tailgate Access Panel. (Figure 1)
I NSTALLATION I NSTRUCTIONS
Parkline Camera
Tools & Supplies Required:
Socket Wrench or Socket Driver
Plastic Trim Removal Tool
Phillips and Flat Blade Screwdrivers
Power Drill
Center Punch
Heat Shrink Tubing
Soldering Iron and Solder
Heat Gun
Corrosion Inhibitor
Wire Ties
Figure 1
with
(recommended)
(optional)
(recommended)
(recommended)
or Electrical Tape
or T-taps
