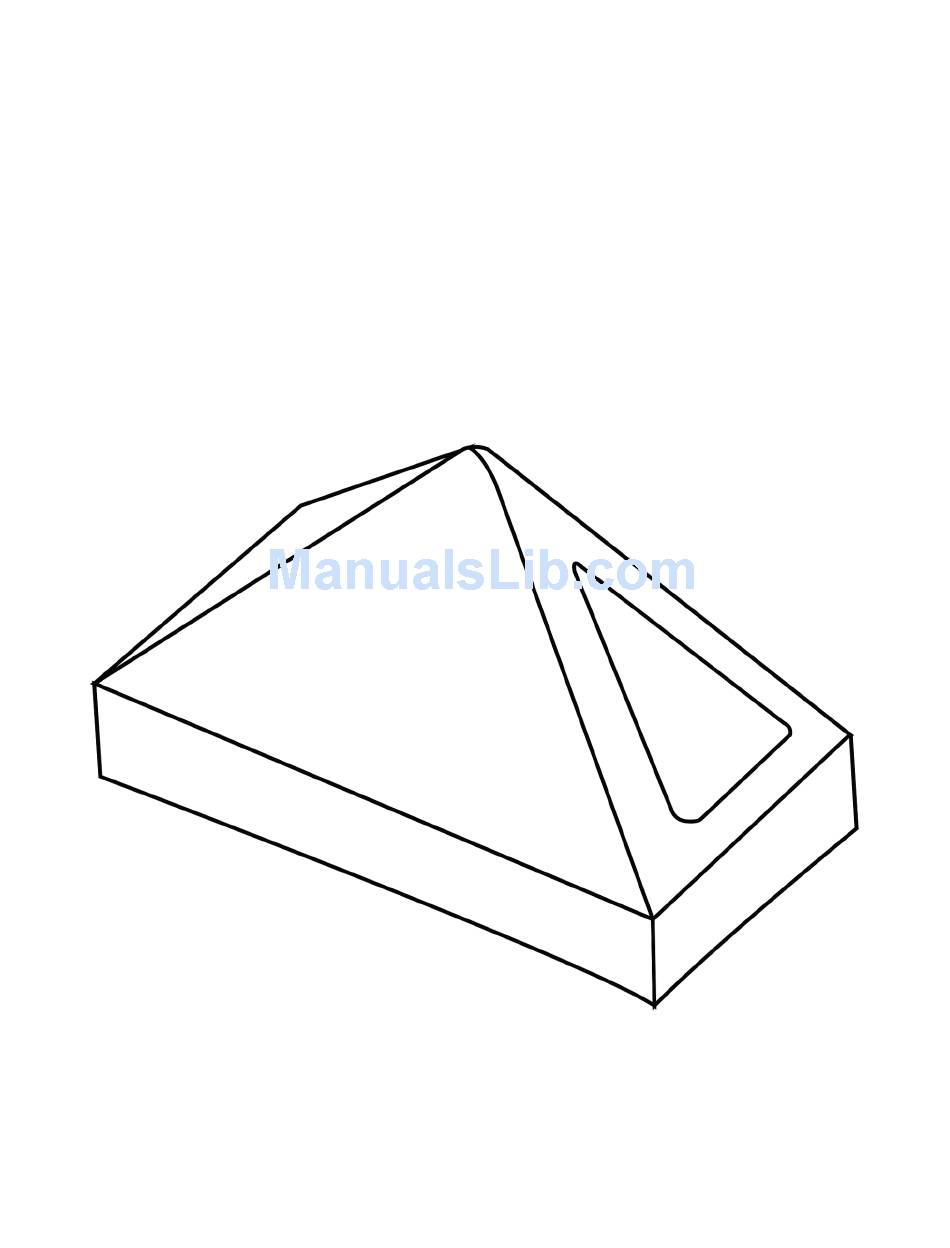

Page 1: Assembly Instructions
FLOAT TENT ASSEMBLY INSTRUCTIONS VIDEO INSTRUCTIONS: zenfloatco.com/setup Check online for version updates at: ZenFloatCo.com. Version 2.3, updated 04/18/2017. For help with watercare maintenance go to, Zenfloatco.com/water-care/ ... - Page 2 CONTENTS SHORT POLES - 14” MEDIUM POLES - 34” LONG POLES - 42” T-CONNECTOR METAL DOOR POLES PLASTIC DOOR POLES...
- Page 3 TOP CONNECTOR RIGHT CORNER LEFT CONNECTOR VINYL TENT COVER VINYL TUB DRIP MAT HEATING PADS VENT CAPS TEMP CONTROLLER...
- Page 4 UV FILTER PUMP FILTER BAG FILTER HOSE & FITTINGS TOP CONNECTOR BOLT TOP CONNECTOR NUT GROUND PROBE *May be wired directly to heating pad...
- Page 5 STRAP FOR MIDDLE WALL GFCI Magnetic Pump Straps BARS *NOT INCLUDED WITH INTERNATIONAL MODELS HYDROMETER INLINE CARBON WATER TEST STRIPS FILTER...
- Page 6 1. ASSEMBLE WATER TUB To verify there were no punctures in transit, move the tub to an outdoor area and fill up to ten inches. If you have any leaks contact us immediately. NOTE: Poles are threaded through sleeves on the water tub. Tel: 801-871-5140 Email: info@zenfloatco.com NOTE: ...
- Page 7 2. ASSEMBLE PYRAMID FRAME Assemble the frame onto existing tub, then make the final connection at the tip of pyramid last.
- Page 8 3. C HOOSE PROPER PLACEMENT Choose a prefered location that will be at least 68 degrees Fahrenheit. Allow at least 1 ft (30cm) of space between the Float Tent and room walls for maintenance. NOTE: If your tent is located in a ...
- Page 9 IMPORTANT VERIFY THE PADS ARE THE CORRECT SIDE UP! They will have markings on each pad to verify which side is up. Lay down radiant pads so they are just barely touching each other. BURNS Use heating pads only as directed. Confirm that the heating element in the heating pad is facing upward.
- Page 10 4. PLACE LINER AND TANK IN PLACE With heating pads properly placed, cover with waterproof liner and place the tub directly over pads. The liner should stick out evenly on three sides, but there should be excess on the side where the tent door will face. With the liner in place, the tub will sit exactly over them.
- Page 11 5. INSTALL FILTRATION SYSTEM A. Premade Joint Piece B. Pump & UV Filter C. Filter Bag (at front of tank) D. T Joint E. Elbow Joint 1. Start by setting pump (B) in place and installing the magnetic hold down strap. You will set the shorter magnetic strap under your tub first, then the longer one will go over pump and cling to the tub bottom.
- Page 12 2. Once your pump (B) is in the right position and magnetized in place with the strap, attach the premade joint piece (A) on top of it. This would be the time to make sure it aligns well with your filter bag (C) in place. Adjustment may be necessary.
- Page 13 NOTE: Plug in the pads temporarily to verify they werenít damaged in transit. The pads will heat almost too hot to touch. Plug everything with the tank through the GFCI provided or one of your choosing. GFCI’s cut the power if the electricity ever comes in contact with the water. If an accident were to happen, they will save your life! Test them once a month with the test button.
- Page 14 RISK OF ELECTRICAL SHOCK Plug Install the Float Tent at least three feet from all electrical outlets and metal surfaces. Do not allow any electric appliance within three feet of the Float Tent, and never introduce electric appliances into the water, as this may result in serious bodily injury or death.
- Page 15 10 inches (25.5 cm). ADDITIVES AND SALT INGESTION Do not add additives (such as bubble bath and bath salts) to the water in the Float Tent, other than Epsom salt as directed. Do not ingest the water in the Float Tent.
- Page 16 Float Tent as this could puncture the Float Tent and cause flooding. Always drain the Float Tent as directed before moving the Float Tent to prevent flooding. Always detach the tent from the tub before disassembling the tent. Never pull on the tent to remove poles.
- Page 17 To change degrees to Celsius hold the top and middle (up and down) buttons simultaneously for three seconds. You should now see the heating indicator light turn on and within minutes be able to feel warmth coming up through the pads in your tank.
- Page 18 9. INSTALL TENT COVER Float Tent Cover will have a tight fit. Work each corner one at a time sliding them down a few inches each time around.
- Page 19 10. INSTALL TENT DOOR Door poles go in sleeves located around the perimeter of both the tent wall and tent door flap. Each pole will have a number on it. Insert poles in their corresponding pole sleeves as illustrated below. NOTE: The poles tend to shift when using the tank regularly.
- Page 20 11. INSTALL AIR VENTS Insert vent stem through vent holes on the back of the Float Tent and snap together with the other half of the vent on the other side. Tuck in three tabs to start and use finger to tuck the fourth in.
- Page 21 12. PLACE CONDENSATION LINER From the inside of the Float Tent, free the condensation liner out from the cover and tank walls. Allow the liner to hang free so any condensation dripping down the tent walls will drip down the liner and back into the tank.
- Page 22 DRUGS AND ALCOHOL USE Do not use drugs or alcohol before or during use of the Float Tent. The use of drugs or alcohol may increase the risk of injury, unconsciousness, and possible drowning.
- Page 23 Zen Float Co. 4730 Riverside Drive Salt Lake City, UT 84123 Tel: (855) Zen-Float Email: info@ZenFloatCo.com...
