MOHAWK

MADE IN THE USA

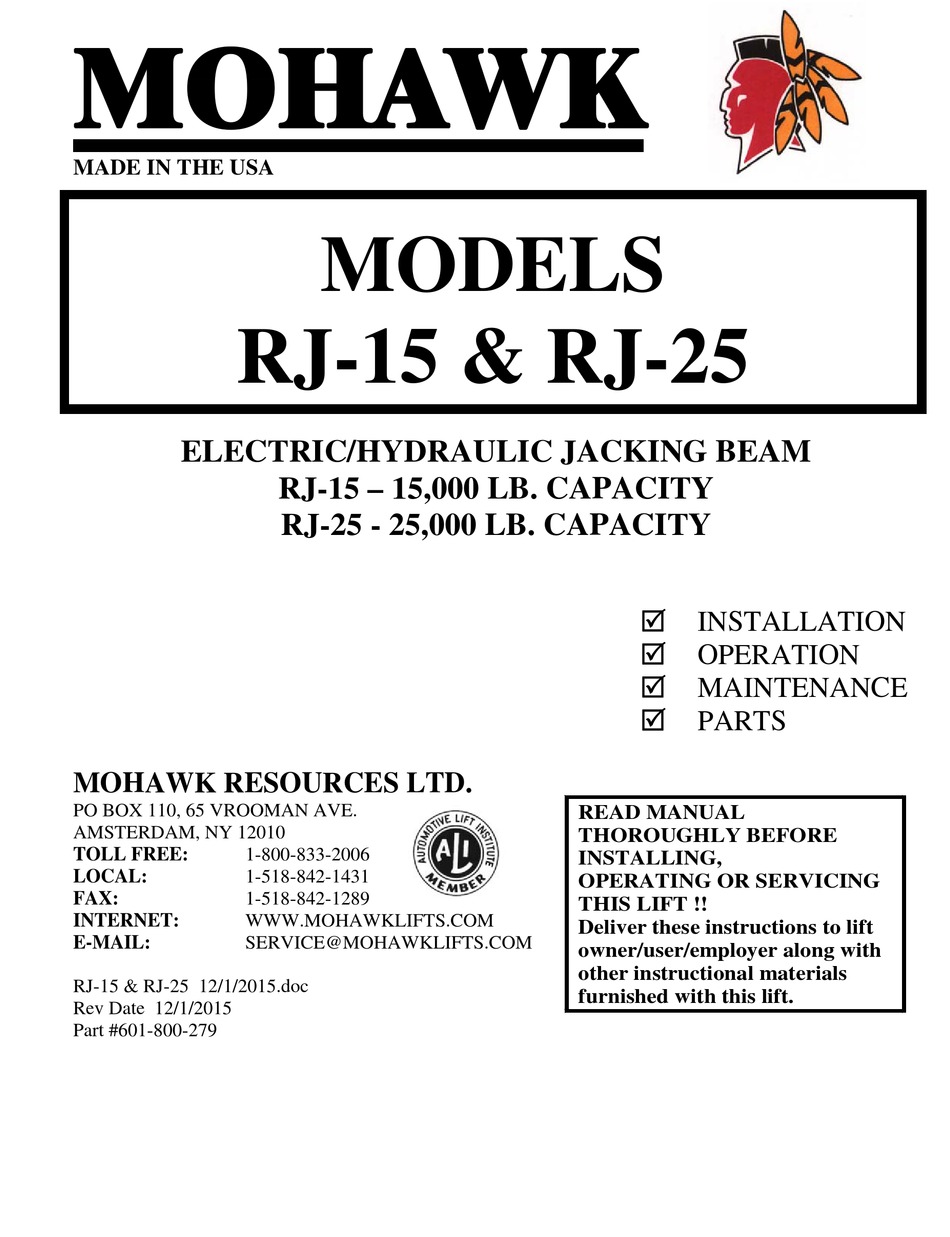

RJ-15 & RJ-25

ELECTRIC/HYDRAULIC JACKING BEAM

MOHAWK RESOURCES LTD.

PO BOX 110, 65 VROOMAN AVE.

AMSTERDAM, NY 12010

TOLL FREE:

1-800-833-2006

LOCAL:

1-518-842-1431

FAX:

1-518-842-1289

INTERNET:

WWW.MOHAWKLIFTS.COM

E-MAIL:

SERVICE@MOHAWKLIFTS.COM

RJ-15 & RJ-25 12/1/2015.doc

Rev Date 12/1/2015

Part #601-800-279

MODELS

RJ-15 – 15,000 LB. CAPACITY

RJ-25 - 25,000 LB. CAPACITY



INSTALLATION



OPERATION



MAINTENANCE



PARTS

READ MANUAL

THOROUGHLY BEFORE

INSTALLING,

OPERATING OR SERVICING

THIS LIFT !!

Deliver these instructions to lift

owner/user/employer along with

other instructional materials

furnished with this lift.

Table of Contents

Need help?

Do you have a question about the RJ-15 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mohawk RJ-15

Page 1 MOHAWK MADE IN THE USA MODELS RJ-15 & RJ-25 ELECTRIC/HYDRAULIC JACKING BEAM RJ-15 – 15,000 LB. CAPACITY RJ-25 - 25,000 LB. CAPACITY  INSTALLATION  OPERATION  MAINTENANCE  PARTS MOHAWK RESOURCES LTD. PO BOX 110, 65 VROOMAN AVE. READ MANUAL...
Page 2: Mohawk Model Rj-15 & Rj
MOHAWK MODEL RJ-15 & RJ-25 IMPORTANT SAFETY INSTRUCTIONS When using your garage equipment, basic safety precautions should always be followed, including the following: 1. Read all instructions. 2. Care must be taken as burns can occur from touching hot parts.
Page 3: Appendages
MOHAWK MODEL RJ-15 & RJ-25 APPENDAGE: Rev (9/28/2006) LIFT ENVIRONMENT: All standard lifts are designed for indoor usage in a normal garage type environment. Any concerns in applications that expose the lift to additional environmental effects, such as paint booths, wash bays, outdoors, high or low temperatures, etc.
Page 4 MOHAWK MODEL RJ-15 & RJ-25 HAVE A QUESTION? Call your local Mohawk distributor For parts, service and technical support. Distributor Place Card Here Please have this unit’s model and serial number when calling for service. Model Number ______________________ Serial Number ______________________ OR CONTACT: MOHAWK RESOURCES LTD.
Page 5: Specifications
READ THIS WARRANTY IN ITS ENTIRETY GENERAL WARRANTY INFORMATION: MOHAWK’S OBLIGATION UNDER THIS WARRANTY IS LIMITED TO REPAIRING OR REPLACING ANY PART OR PARTS RETURNED TO THIS FACTORY, TRANSPORTATION CHARGES PREPAID BY CUSTOMER WITH AUTHORIZED RETURN (RGA), WHICH PROVE UPON INSPECTION TO BE DEFECTIVE AND WHICH HAVE NOT BEEN MISUSED. DAMAGE OR FAILURE TO ANY PART DUE TO FREIGHT DAMAGE OR LACK OF REQUIRED REGULAR DOCUMENTED MAINTENANCE IS NOT COVERED UNDER THIS WARRANTY.
Page 6 THE “EXTENDED LIFETIME CYLINDER SEAL WARRANTY” (BELOW) IS APPLICABLE TO THE FOLLOWING MOHAWK LIFTS ONLY: TWO-POST MODELS A-7, SYSTEM IA-10, LC-12, LMF-12, TP-16, TP-18, TP-20, TP-26, TP-30. SEE MOHAWK’S “EXTENDED LIFETIME CYLINDER SEAL WARRANTY” FOR SPECIFIC WARRANTY PROVISIONS FOR HYDRAULIC CYLINDERS.
Page 7: Table Of Contents
MOHAWK MODEL RJ-15 & RJ-25 CONTENTS TEXT PAGE APPENDAGES SPECIFICATIONS PACKING LIST INSTALLATION INSTRUCTIONS SAFETY TIPS PRE - OPERATION CHECK LIST / LIFTING PROCEDURES MAINTENANCE PROCEDURES TROUBLE SHOOTING SERVICE CHART MAINTENANCE CHART PARTS & DIAGRAMS FIGURE PAGE RJ-15 SPECIFICATION DRAWING...
Page 8 THIS EQUIPMENT SHOULD DOCUMENTED SUBMITTED IN WRITING TO MOHAWK RESOURCES LTD. FOR SAFE OPERATION OF THIS EQUIPMENT IS DEPENDENT ON USE, EXAMINATION. THE USER ASSUMES FULL RESPONSIBILITY FOR IN COMPLIANCE WITH THE OPERATION PROCEDURES OUTLINED ANY EQUIPMENT DAMAGE, PERSONAL INJURY, OR ALTERATION...
Page 9 MOHAWK MODEL RJ-15 & RJ-25 RJ-15 & RJ-25 SPECIFICATIONS PERFORMANCE SPECIFICATIONS POWER UNIT SPECIFICATIONS LIFTING TYPE ELEC / HYDRAULIC BRAND NAME MONARCH LIFTING CAPACITY – RJ-15 15,000 LBS. MODEL M-404-0132 (601-300-042) LIFTING CAPACITY – RJ-25 25,000 LBS. POWER UNIT TYPE...
Page 10: Packing List
MOHAWK MODEL RJ-15 & RJ-25 RJ-15 & RJ-25 PACKING LIST PART NUMBER PART QTY. DESCRIPTION 025-002-065 SHIPPING CREATE JACKING BEAM ASSY (RJ-15 or RJ-25) 025-002-035 LIFTING PAD (STANDARD) 025-002-014 LIFTING PAD, AXLE/YOKE TYPE 025-002-128 HEIGHT ADAPTER, 6 INCH 025-002-127 HEIGHT ADAPTER, 3 INCH...
Page 11: Installation Instructions
MOHAWK MODEL RJ-15 & RJ-25 INSTALLATION INSTRUCTIONS IMPORTANT READ THIS MANUAL IN ITS ENTIRETY. BE FAMILIAR WITH PART NAMES AND HAVE A GOOD UNDERSTANDING OF HOW THIS UNIT IS TO BE ASSEMBLED AND OF HOW INDIVIDUAL PARTS OPERATE, BEFORE ASSEMBLING THE UNIT.
Page 12: Safety Tips
PLEASE POST THE (A COPY IS INCLUDED IN THE PARTS BOX) WHERE THEY WILL BE CONSTANTLY REMINDED TO YOUR LIFT OPERATOR. FOR INFORMATION SPECIFIC TO THE LIFT, ALWAYS REFER TO THE MOHAWK MANUAL.  CHOCKS OUT OF THE WAY TO PROVIDE INSPECT YOUR LIFT DAILY.
Page 13 MOHAWK MODEL RJ-15 & RJ-25 PRE - OPERATION CHECK LIST NO LOAD PERFORMANCE CHECK TRAINED OPERATOR   NO EXTERNAL FLUID LEAKS. THE OPERATOR MUST BE FULLY TRAINED AND QUALIFIED TO SAFELY AND EFFECTIVELY OPERATE THIS EQUIPMENT  NO BLEED DOWN.
Page 14: Maintenance Procedures
MOHAWK MODEL RJ-15 & RJ-25 MAINTENANCE PROCEDURES -- TRAINED LIFT SERVICE PERSONNEL ONLY – REFER TO ANSI/ALI ALIS, SAFETY REQUIREMENTS FOR INSTALLATION AND SERVICE OF AUTOMOTIVE LIFTS. ALL O - RING BOSS FITTINGS JAM NUTS ARE TO BE DAILY TIGHTENED TO 15-FOOT POUNDS TORQUE.
Page 15: Trouble Shooting
LOW FLUID LEVEL IN TANK FILL COMPLETELY (WHEN CYLINDERS RETRACTED). USE DEXRON III ATF. RELIEF VALVE ACTIVATED VEHICLE IS TOO HEAVY OR VALVE SETTING IS TOO LOW. CONTACT MOHAWK SERVICE DEPARTMENT. SUCTION LINE NOT TIGHT OR NOT CONNECTED DISCONNECT POWER SOURCE AND LOCKOUT UNIT. CONTACT MOHAWK...
Page 16: Service Chart
MOHAWK MODEL RJ-15 & RJ-25 SERVICE CHART MODEL: _________________________ SERIAL NUMBER: _________________________ DATE OF INSTALLATION: _________________________ DATE PART REPLACED / SERVICED SERVICE SERVICED BY COMPANY MAINTENANCE CHART DATE MAINTENANCE PERFORMED SERVICE SERVICED BY COMPANY...
Page 17 MOHAWK MODEL RJ-15 & RJ-25 MOHAWK MODELS RJ-15 & RJ-25 PARTS & DIAGRAMS MOHAWK RESOURCES LTD. 65 VROOMAN AVE. AMSTERDAM, NY 12010 TOLL FREE: 1-800-833-2006 LOCAL: 1-518-842-1431 FAX: 1-518-842-1289 INTERNET: WWW.MOHAWKLIFTS.COM E-MAIN: SERVICE@MOHAWKLIFTS.
Page 18 MOHAWK MODEL RJ-15 & RJ-25...
Page 19 MOHAWK MODEL RJ-15 & RJ-25...
Page 20 MOHAWK MODEL RJ-15 & RJ-25...
Page 21 MOHAWK MODEL RJ-15 & RJ-25...
Page 22 MOHAWK MODEL RJ-15 & RJ-25...
Page 23 MOHAWK MODEL RJ-15 & RJ-25...
Page 24 MOHAWK MODEL RJ-15 & RJ-25...
Page 25 MOHAWK MODEL RJ-15 & RJ-25...
Page 26 MOHAWK MODEL RJ-15 & RJ-25...
Page 27 MOHAWK MODEL RJ-15 & RJ-25...
Page 28 MOHAWK MODEL RJ-15 & RJ-25...
Page 29 MOHAWK MODEL RJ-15 & RJ-25...
Page 30 MOHAWK MODEL RJ-15 & RJ-25...
Page 31 MOHAWK MODEL RJ-15 & RJ-25...
Page 32 MOHAWK MODEL RJ-15 & RJ-25 SEND US YOUR PHOTOS! MOHAWK IS ALWAYS INTERESTED IS SEEING HOW YOUR LIFTS ARE USED. WE HAVE CREATED AN ON-LINE PHOTO DATABASE FOR CUSTOMERS TO VIEW OUR LIFTS IN USE. VISIT WWW.MOHAWKLIFTS.COM/PR/ AND MAYBE WE CAN ADD YOUR PHOTOS TO OUR COLLECTION.
