Summary of Contents for Homeline TWINDRIVE TD4 Advanced

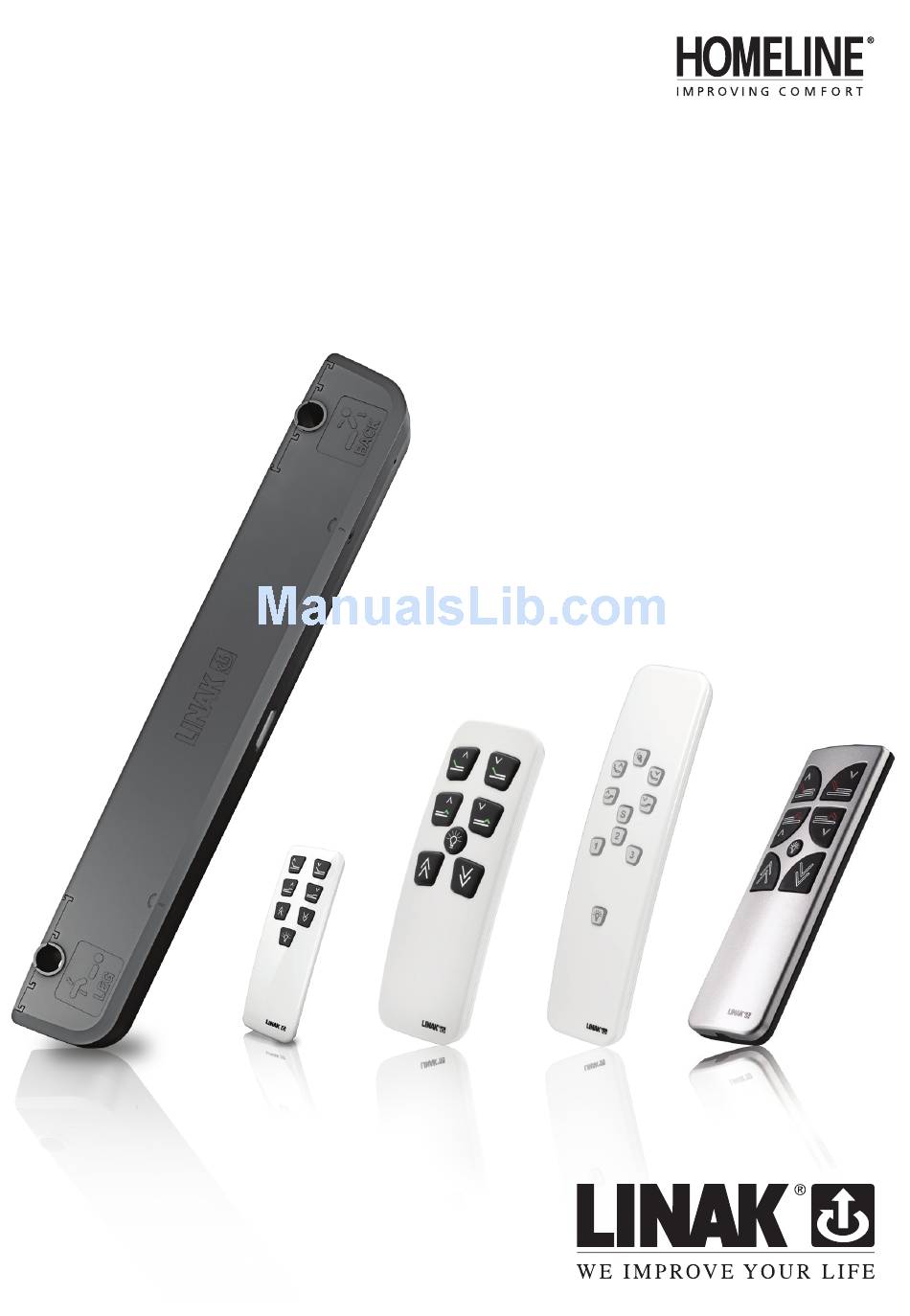

- Page 1 U S E R M A N U A L TWINDRIVE ® TD4 Advanced To learn more about LINAK, please visit: w w w . l i n a k . c o m Page 1 of 28...
- Page 2 Page 2 of 28...
-
Page 3: Table Of Contents
Contents Preface..............................4 Important information ........................5 Safety instructions ..........................5 Safety issues ........................... 6 Before installation, reinstallation or troubleshooting ................ 9 Before start-up ..........................9 During operation ..........................9 Misc ............................... 9 Only for EU markets ........................... 10 Only for Non EU markets ........................10 Misuse .............................. -
Page 4: Preface
Preface Dear User, We are delighted that you have chosen a product from LINAK ® LINAK systems are high-tech products based on many years of experience in the manufacture and development of actuators, electric control boxes, controls and chargers. This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: Safety Issues
Furthermore take care about the connecting wires from the power supply to the TD4 Advanced, don’t damage this by overrun. Assure free space for movement of application in both directions to avoid blockade. The appliance is only to be used with the power supply unit provided with the appliance. - Page 7 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation •...
- Page 8 - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help. This device complies with Industry Canada licence-exempt RSS standard(s).
-
Page 9: Before Installation, Reinstallation Or Troubleshooting
The actuator system has a sound level below 55dB(A) in typical applications. Updated manuals and declarations can always be found here: www.linak.com/HOMELINE Electromagnetic fields (EMF): This LINAK appliance complies will all standards regarding electromagnetic fields (EMF). If handled properly and according to instructions in this user manual, the appliance is safe to use based on scientific evidence available today. -
Page 10: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 11: Informations Importantes
Informations importantes Les informations importantes sur les produits LINAK peuvent être trouvées dans ® les rubriques suivantes: Attention! Le non respect de ces instructions peut entraîner des accidents impliquant des blessures graves. Ne pas suivre ces instructions peut entraîner l´endommagement ou destruction du produit. -
Page 12: Avant L´installation, Ré-Installation Ou Le Dépannage
Le système d´actionneur présente un niveau sonore inférieur à 55dB (A) dans des applications typiques. Les mises à jours des manuels et autres informations peuvent-être trouvées sur www.linak.com/homeline Electromagnetic fields (EMF): This LINAK appliance complies will all standards regarding electromagnetic fields (EMF). If handled properly and according to instructions in this user manual, the appliance is safe to use based on scientific evidence available today. -
Page 13: Seulement Pour Les Marchés Au Sein De L´ue
Seulement pour les marchés au sein de l´UE: Cet appareil peut-être utilisé par des enfants âgés de 8 ans et plus, ainsi que les personnes dont les capacités physiques, sensorielles ou mentales sont réduites ou ayant un manque d´expérience et de connaissance si elles ont bénéficié... -
Page 14: Repairs
Repairs In order to avoid the risk of malfunction, all TWINDRIVE repairs must only be carried out by authorised LINAK workshops or ® repairers, as special tools must be used and special gaskets must be fitted. TWINDRIVE under warranty must also be returned to authorised LINAK workshops. -
Page 15: Misc. On The Twindrive ® Td4 Advanced System
Misc. on the TWINDRIVE TD4 Advanced system ® This system is a TWINDRIVE system developed for leisure beds and for indoor use in private homes. Warranty There is 36 months’ warranty on the TWINDRIVE products against manufacturing faults calculated from the production ®... -
Page 16: Mounting Instructions For The Twindrive ® System
Mounting instructions for the TWINDRIVE system: ® Mounting is made by pushing the TD4 unit into the bed bracket and thereafter slide the closing devices on. It is IMPORTANT to be completely sure that the closing devices are in place before using the TD4. Do not drive the TD4 Advanced system without the closing devices mounted The bed brackets must have a smooth surface without burs and welding blops in the area where the TD4 Advanced is mounted. -
Page 17: Td4 Advanced - Start-Up (How To Pair Bluetooth Connection)
TD4 Advanced - Start-up (How to pair Bluetooth connection) It is possible to pair multiple devices to the TD4 via Bluetooth . See following instructions: ® 1. Pairing your control Connect the TD4 to the mains via the connection cable. Now the TD4 will be in pairing mode in 3 minutes and the Under Bed Light will blink to indicate this. -
Page 18: Pairing Your Smartphone Or Tablet
2. Pairing your smartphone or tablet Connect the TD4 to the mains via the connection cable. Now the TD4 will be in pairing mode in 3 minutes and the Under Bed Light will blink to indicate this. Enable Bluetooth on your smartphone/tablet. Open the TD4 app and a “search bed” page will be displayed. A list ®... -
Page 19: Pairing Another Device Later
3. Pairing another device later If you wish to connect another control or a smartphone/tablet to the TD4 later, just disconnect, wait 2 minutes and connect the TD4 to the mains to get it in pairing mode again. See instructions 1 or 2 above to find out how to pair the device, you want. -
Page 20: Mechanical Emergency Lowering
Mechanical emergency lowering Emergency lowering is meant for lowering the bed if a power failure occurs and the bed needs to be driven down into horizontal position. Disconnect the TD4 from the mains. Take the hex key on the side of the TD4. Underneath the TD4 are two gaps for mechanical lowering –... -
Page 21: Electrical Emergency Lowering
Electrical emergency lowering Connection of emergency lowering: 1. Remove the SMPS from the mains. 2. Notice! If a locking device is mounted on the SMPS remove it now. 3. Unplug the connection cable from the SMPS 4. Connect the connection cable to the battery box for emergency lowering. Cable strain relief It is important to use the cable relief on the TD4. -
Page 22: Functional Description
Functional description Hand Control HB10BL: Up – down back motor Up – down leg motor Common operation up/down (option) Light Button Hand Control HC05BL: Up – down back motor Up – down leg motor Common operation up/down (option) Light Button Hand Control HC10BL: Hand Control HB1ABL Hand Control HC1ABL... -
Page 23: Labels
HC1ABL Label for TD4 Advanced Label for HB10 Label for HC05 Label for HC10 Label for HC1ABL HC1ABL HC1ABL HC1ABL Label for HC20 Page 23 of 28... -
Page 24: Disposal Of Linak Products
Disposal of LINAK products As LINAK customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend to disassemble our product into as many fractions as possible at the disposal and try to make it recycable. As examples of main groups within waste fractions we can mention: Metal, plastic, cable shoe, combustible waste and collection for recovery. -
Page 25: Main Groups Of Disposal
Main groups of disposal Product main Scrap Cable Electronics Plastic recycling Comments groups scrap scrap or combustin HB10BL HC05 HC10BL HC20BL Disposal of batteries Details regarding safe disposal of used and leaking batteries: Batteries should be disposed in accordance with appropriate federal, state and local regulations. LINAK recommends that used or leaking batteries are disposed through the local recycling system. -
Page 26: Drawing Appendix
DRAWING APPENDIX g No.: TD4_ADVANCED g No.: TD4_ADVANCED TWINDRIVE TD4 System Advanced ® 25.6 581 1 Page 26 of 28... - Page 27 HB10BL Hand Control HC05BL Hand Control HC10BL Hand Control HC20BL Hand Control Page 27 of 28...
-
Page 28: Addresses
FACTORIES CHINA DENMARK SLOVAKIA LINAK (Shenzhen) Actuator Systems, Ltd. LINAK A/S - Group Headquarters, Guderup LINAK Slovakia s.r.o. LINAK U.S. Inc. Phone: +86 755 8610 6656 Phone: +421 51 75 63 414 Phone: +45 73 15 15 15 North and South American Headquarters Fax: +86 755 8610 6990 Fax:...
