Summary of Contents for Jinyoung JY-R700

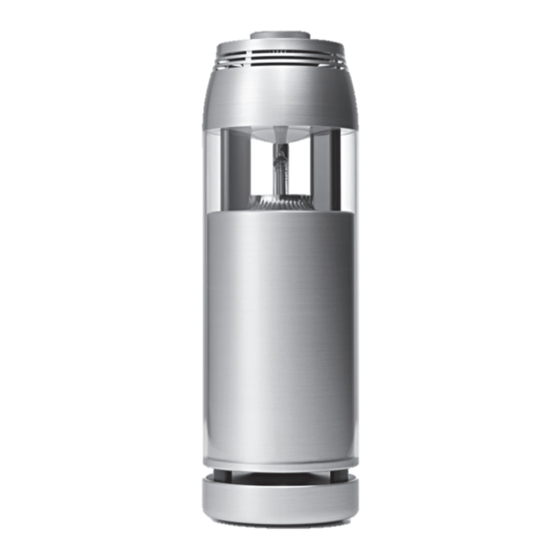

- Page 1 Wireless Audio System JY-R700 User Manual Please read all details of this manual prior to using this device for the proper use of the product and any error or malfunction prevention.
-
Page 2: Table Of Contents
Content Introduction Accessories included ..........About this manual ............Battery charging this device ........Names of components and parts ....Getting started 10~11 Turning on lights/power ........Listening to music via Bluetooth connection 12~13 Pairing the device with the equipment .... 14~15 Connecting the Bluetooth device paired and playing music 16~17... -
Page 4: Accessories Included
Introduction Please check the packaged items inside and carefully read this manual Accessories included Data cable User manual Main component (JY-R700) -
Page 5: About This Manual
Figures and descriptions may not be congru ent with actual items. Any typographical errors or incorrect information discov- ered within this manual maybe changed by JINYOUNG G&T without prior notice. Pertinent wireless equipments may experience transmission problems while being oper- ated. -
Page 6: Battery Charging This Device
Introduction Please check the packaged items inside and carefully read this manual Battery charging this device Please use the USB cable supplied with to connect with the device and the AC adapter for charging bat- teries for the initial use of this device. Red LED indicates that this device is being charged, ●... - Page 7 USB (USB. POWER) ● Use the USB cable supplied with to con nect the AC adapter to charge batteries. ※ Cautions The device may charge faster than usual or may not charge at ● all in places where the temperature is extremely high or low. The device must be charged every six months for performance ●...
-
Page 8: Names Of Components And Parts
Names of components and parts Please carefully study the name and function of each component and part ① ② ③ ④ ⑤ ⑥ ⑧ ⑦ ⑨ ⑩ ⑪... - Page 9 ① Power/Volume/Call/Light Switch Power ● -Press : Turns the device on or off. -Press and hold : Disconnects the Bluetooth device. Start chime goes off when the device is turned on, and the end chime goes off when the device is turned off. VOLUME +/ - ●...
-
Page 10: Getting Started
Getting Started Please turn on the device after reading all details of this manual prior to using this device Turning on lights/power 1. Switch on Press the dial knob of the power switch for two sec onds. The device will turn on after the start chime. Then the device can play music. - Page 11 Light contrast mode Contrast may be adjusted if the device is turned on. 1. Click the dial knob once. 2. Turn clockwise or counterclockwise to adjust con- trast. 3. Turn the dial knob to achieve the contrast desired, which will be maintained until the power is switched off.
-
Page 12: Listening To Music Via Bluetooth Connection
2) Search Bluetooth menu and new equipment on the mobile phone. Select and register ‘JY-R700(XXX)’ from the ● searched device list. ※Note: Speaker is the last three digits of the Blue tooth address. - Page 13 Manual Registration For re-registering speaker and registering with other equipments 1) Press the BT button on the speaker when the power is on. The device will set to the speaker search mode, and the ● blue LED will blink. 2) Repeat steps 2 through 4 of the “Easy Registration” process. If the device’s pairing information is deleted, pairing must ●...
-
Page 14: Connecting The Bluetooth Device Paired And Playing Music
Connect Bluetooth and Play Connecting the Bluetooth device paired and playing music If the equipment is connected with another device via Bluetooth connection, that connection will be terminated before connecting with a new device desired. 1. Press the dial knob button to switch on the device. (For registering the Bluetooth speaker with mobile for the first time, press the BT button at the bottom of the speaker to search and register the device.) - Page 15 ※ aptX HD(24bit) is a wireless Bluetooth technology that delivers CD-quality audio expe rience while preventing acoustic loss. It em powers a very clean and gentle music and mov ie watching experience. Note : It automatically activates only on mobile phones or audio equipments that sup- port aptX HD.
-
Page 16: Automated Connection And Playing Music
● er is switched off. If the power is switched back on within the reach of transmission, the connection will automatically re-establish. Select ‘JY-R700(XXX)’ from the mobile phone’s ● Bluetooth menu to connect second mobile phone. Out of Reach Connection with mobile phone will terminate if the ●... -
Page 17: Audio Streaming
Audio Streaming Play : Short press the Play/Pause button. ● Pause : Short press the Play/Pause button while playing ● music. Next song : Short press the FWD switch. ● Previous song : Short press the RWD switch. ● Equalizer (EQ) Press the EQ button to change to the ●... -
Page 18: Multi Connection With Bluetooth And Playing Music 18~19
Connect Bluetooth and Play Music Multi Connect with Bluetooth and Play Music You can Bluetooth connect with two mobile equip- ments simultaneously and play music on the selected equipment. Muti Connection 1) Refer to the manual registration procedures to register and connect one of the two mobile phones equipped with Bluetooth function. -
Page 20: Making Phone Calls With The Bluetooth Equipment
Making Phone Calls with Bluetooth Equipment You can make phone calls from Bluetooth devices Placing outgoing calls / taking incoming calls Placing outgoing calls Placing outgoing calls from mobile phone will auto- ● matically initiate calls on speaker. Taking / ending incoming calls Press dial knob to take or end incoming calls. - Page 21 Reject Call Press the Call button for 2 seconds to reject an ● incoming call when the bell rings. Dial Knob HD Voice Supports high-quality voice call and audio experience. Note: Your carrier must provide high-quality voice call features.
-
Page 22: Listening To Stereoscopic Music Via The Bluetooth Dual Play
Listening to Stereoscopic Music via the Bluetooth Dual Play You can connect two Bluetooth devices wireless to listen to stereo sound Dual Play (Optional) You can use two speakers to enjoy music on stereo, and you need two units of speaker. 1. -
Page 23: Dual Play
You can adjust the two speakers’ volume simultane- ● ously while in the dual play mode. If the master speaker is switched off, the other slave ● speaker will automatically switch off. Long press the FWD or RWD button to deactivate the ●... -
Page 24: Listening To External Source Of Music
Listening to External Source of Music This equipment can play external devices connected to the AUX terminal. For this connection, 3.5 mm stereo mini-plug cables, which are available in the market, are needed. Connecting External Device 1. Connect cable to the equipment’s AUX terminal. 2. - Page 25 Charge Signal Please keep low this equipment’s and external device’s ● volume before connection.
-
Page 26: Trouble Shooting
Trouble Shooting Bluetooth Problem Cause Equipment is switched off. Equipment is connected with other Bluetooth device. This equipment and device are too distant from each other. Equipment Devices transmitting 2.4GHz of frequency band (such as cannot pair with microwave oven and wireless LAN) are located. Bluetooth device. - Page 27 Solution Power on equipment and execute pairing. Terminate the existing Bluetooth connection and execute pairing with new device. Execute pairing between equipment and device within 10 meters of distance Separate this equipment from the radio signal transmitting device. Use Bluetooth adaptors ending in “0000” for password. Execute pairing with device supporting A2DP.
-
Page 28: Product Specification
Product Specification Bluetooth Bluetooth Version Version 3.0 Profile Support Hands-free/A2DP/AVRCP Compatible Codec SBC, aptX, aptX HD Bluetooth Class1 Wireless Output 2420 MHz ~ 2480 MHz Operating Frequency Band 10 meters (without obstacles) Maximum Communi- cation Range Entry Connector 3.5 mm Stereo Mini Jack Rechargeable Batteries Built-in Batteries Lithium Ion Batteries... - Page 29 It depends on the radio state and device type. ● JINYOUNG G&T does not guarantee that all wireless connections be- tween this unit and the device are compatible with the Bluetooth function.
-
Page 30: Cautions
Cautions Cautions for using the product ◆ Be careful not to drop the equipment from height. ● Please be careful not to repair or disassemble. ● Avoid contact with water, alcohol, benzene, etc. ● Avoid contact with flammable materials. ● Keep away from flammable materials. -
Page 31: Safety Information
Safety Information ◆ Prevention of hearing impairment If the speaker volume is too high, permanent hear- ● ing loss may occur. Set the volume to a safe level. ● It may sound normal, but you will get used to it over ●... - Page 32 Cautions Battery information ◆ Rechargeable batteries may have a long life if prop- ● erly managed. However, if not used for a long time, their capacity ● may be reduced within a few times of use. Be care- ful not to expose the battery to extremely high or low temperatures, above 50 °C or below -10 °C.
- Page 33 Cautions FCC NOTICE TO USERS: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 34 M E M O...
- Page 35 M E M O...
-
Page 36: Product Warranty
Product Warranty Warranty period (free/paid service 1 year) The warranty period is calculated from the date of purchase, so please complete this warranty and keep your receipt. (If the date of purchase cannot be confirmed, the warranty period will be calculated from the date three months have elapsed from the month of manufacture.) Free Service... - Page 37 For service, please contact the place of purchase or the following service center if a malfunction oc- curs. Phone: 82-70-4147-0011 (Toll Free) ● Product Name JINYOUNG G&T Bluetooth Speaker Date of Purchase Year Month Place of Purchase Phone Model Number & Serial number...
- Page 38 JINYOUNG G&T may refuse to provide war- ranty service if this information is erased or changed after the initial purchase of the product.
- Page 39 Certified tradename: JINYOUNG G & T Co., Device name (model name) : Wireless device for wireless data communication system (JY-R700) Year and month of manufacture: Manufacturer / Country of Origin: JINYOUNG G & T Co., Ltd. / Korea...
- Page 40 ⓒ2017 JINYOUNG G&T Corporation Rev 1.0 KR All rights reserved. JINYOUNG G&T., 2017 JINYOUNG G&T CORPORATION Printed in Korea...
