features
•
51-197 ft. (15.5-60m) 5-section full power
MEGAFORM™ boom
•
36-62 ft. (11-19m) telescoping offsettable
swingaway extension
•
69-200 ft. (21-61m) luffing jib
•
MEGALIFT™ main boom attachment
•
220,400 lb. (100 Tonnes) counterweight with
hydraulic removal system
•
MEGATRAK™ suspension
www.manitowoc.com

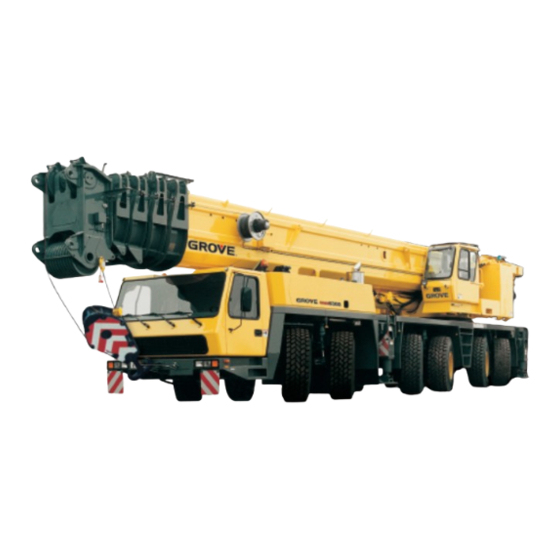

GMK6350
All Terrain Crane
product
guide
contents
Features
Specifications
Dimensions
Counterweight
Travel Proposal
Working Range
Main Boom and
Swingaway Charts
Working Range MEGALIFT
MEGALIFT charts
Working Range w/inserts
Swingaway Charts
w/one or two inserts
Working Range Luffing
Luffing Charts
Overview
2
3
5
6
7
8
9
11
12
13
14
15
16
22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GMK6350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grove Crane GMK6350

Summary of Contents for Grove Crane GMK6350

  • Page 1 GMK6350 product guide features contents • 51-197 ft. (15.5-60m) 5-section full power Features MEGAFORM™ boom Specifications • 36-62 ft. (11-19m) telescoping offsettable Dimensions swingaway extension Counterweight • 69-200 ft. (21-61m) luffing jib Travel Proposal • MEGALIFT™ main boom attachment Working Range •...

  • Page 2: Features 2

    features Grove GMK cranes incorporate a truly independent suspension system known as MEGATRAK™ which allows all wheels to remain on the ground at all times so that stresses and weights are not continually transferred between axles. Controlled from the cab, While the operator is concentrating on the the suspension can be lift, ECOS (Electronic Crane Operating...

  • Page 3: Specifications

    specifications Superstructure Boom Engine Boom Engine 51 ft. - 197 ft. (15.5 m - 60 m) five section, full power Mercedes-Benz OM906LA, diesel, 6 cylinders, water cooled, MEGAFORM ™ boom with patented TWIN-LOCK ™ boom pinning turbocharged, 275 HP (205 kW) at 1800 rpm. system.
  • Page 4 Suspension * Optional Equipment Suspension GROVE GMK6350 features the Grove exclusive MEGATRAK™ * 12 x 8 x 12 suspension. This revolutionary design features an independent * Electric driveline retarder hydropneumatic system with hydraulic lockout acting on all * 20.5 tires...

  • Page 5: Dimensions

    dimensions 28' 6" (8700) 17' 6" (5340) (3360) 27' 11" (8500) 14' 5" (4400) 19' 8" (6000) (3070) (2740) 18' 10" (5740) 16' 3" 12' 3" (3740) (4960) 28' 6" (8700) 64' 7" (19 680) 5' 3" (1610) 1' 3" 50' 9"...

  • Page 6: Counterweight 7

    trailing boom proposal 80' 5" Swingaway Installed 80' 5" Swingaway Installed Trailing Boom 79' 8" Swingaway Removed 79' 8" Swingaway Removed 54" 54" 19' 3" 5' 5" 7' 10" 5' 5" 10' 6" 5' 7" 54" 54" 19' 3" 5' 5" 7' 10" 5' 5" 10' 6"...
  • Page 7 counterweight 6' 3" (1900) 18' 10" 17,600 lbs. (8 Tonnes) (5740) 30,900 lbs. (14 Tonnes) 15,450 lbs. (7 Tonnes) 15,450 lbs. (7 Tonnes) 14' 5" (4400) 30,900 lbs. (14 Tonnes) 9' 9" 33,000 lbs. (15 Tonnes) (2980) 33,000 lbs. (15 Tonnes) 8' 2"...

  • Page 8: Working Range

    working range 51'-197' main boom 240 230 220 210 200 190 180 170 160 150 140 130 120 110 100 90 R [ft] Operating radius in feet from axis of rotation THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
  • Page 9 load charts Outriggers Defined Arc Boom Counterweight 51-197 ft. 220,400 lb. 100% (15.5-60.0 m) (100 Tonnes) 27' 11" Spread Pounds (thousands) Boom Extension Boom Radius Feet 700.0† 542.0 466.0 422.0 342.0 412.0 370.0 366.0 342.0 242.0 332.0 302.0 302.0 300.0 242.0 185.0 139.0...
  • Page 10 load charts Outriggers Defined Arc Boom Counterweight Extension 179-197 ft. 36-62 ft. 220,400 lb. 100% (54.4-60.0 m) (11-19 m) (100 Tonnes) 27' 11" Spread Pounds (thousands) Boom Extension Boom Radius 179 FT MAIN BOOM 197 FT MAIN BOOM 36 FT 62 FT 36 FT 62 FT...
  • Page 11 working range – MEGALIFT 142'-197' MEGAWING lift Operating radius in feet from axis of rotation THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
  • Page 12 load charts Rotation Boom Counterweight Outriggers 51-197 ft. 220,400 lbs. 100% 360° (15.5-60.0 m) (100 Tonnes) 27' 11" Spread Pounds (thousands) Extension Radius Feet 139.0 139.0 106.0 139.0 106.0 78.0 66.0 139.0 106.0 78.0 66.0 139.0 106.0 78.0 66.0 139.0 106.0 78.0 66.0...
  • Page 13 working range 51'-197' main boom 193.6 FT. 167.3 FT. 141.1 FT. 114.8 FT. 88.6 FT. 62.3 FT. 196.8 FT. Operating radius in feet from axis of rotation THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
  • Page 14 load charts Rotation Boom Counterweight Outriggers Extension 197 ft. 62-194 ft. 220,400 lbs. 100% 360° (60.0 m) (19.0-60.0 m) (100 Tonnes) 27' 11" Spread Pounds (thousands) Extension Radius 62 FT 89 FT 115 FT 141 FT 167 FT 194 FT Feet 3°...
  • Page 15 working range 51'-160' main boom 260 250 240 230 220 210 200 190 180 170 160 150 140 130 120 110 100 90 80 50 40 30 70 60 20 10 Operating radius in feet from axis of rotation THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
  • Page 16 load charts Luffing Jib Rotation Boom Counterweight Outriggers 51-178 ft. 69 ft. 220,400 lbs. 100% 360° (15.5-54.3 m) (21 m) (100 Tonnes) 27' 11" Spread Pounds (thousands) Boom Extension Radius 70° MAIN BOOM ANGLE Feet 115.0 103.0 89.0 76.0 85.0 65.0 79.0 75.0...
  • Page 17 load charts Luffing Jib Rotation Boom Counterweight Outriggers 51-178 ft. 148 ft. 220,400 lbs. 100% 360° (15.5-54.3 m) (45 m) (100 Tonnes) 27' 11" Spread Pounds (thousands) Radius Boom Extension 70° MAIN BOOM ANGLE Feet 42.6 42.4 41.8 38.8 41.2 38.6 39.6 38.4...
  • Page 18 load charts Luffing Jib Rotation Boom Counterweight Outriggers 51-178 ft. 69 ft. 220,400 lbs. 100% 360° (15.5-54.3 m) (21 m) (100 Tonnes) 27' 11" Spread Pounds (thousands) Boom Extension Radius 82° MAIN BOOM ANGLE Feet 121.0 121.0 114.0 119.0 114.0 99.0 84.0 103.0...
  • Page 19 load charts Luffing Jib Rotation Boom Counterweight Outriggers 51-178 ft. 148 ft. 220,400 lbs. 100% 360° (15.5-54.3 m) (45 m) (100 Tonnes) 27' 11" Spread Pounds (thousands) Boom Extension Radius 82° MAIN BOOM ANGLE Feet 43.8 43.8 39.6 43.6 39.6 35.8 31.0 43.4...
  • Page 20 load charts Luffing Jib Boom Counterweight Outriggers Rotation 51-160 ft. 200 ft. 220,400 lbs. 100% 360° (15.5-48.6 m) (61 m) (100 Tonnes) 27' 11" Spread Pounds (thousands) Boom Extension Radius 82° MAIN BOOM ANGLE Feet 21.6 19.8 21.2 19.8 17.8 20.8 19.6 17.6...
  • Page 21 rated lifting capacities IMPORTANT NOTES: WARNING: THIS CHART IS ONLY A GUIDE. Symbols Glossary The notes below are for illustration only and should not be relied upon to operate the crane. The individual crane's load chart, operating instructions and other instruction Frame Steering plates must be read and understood prior to...

  • Page 22: Overview

    overview of standard duty charts (1) 3° only THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane's load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
  • Page 23 notes...
  • Page 24 Regional Headquarters Americas Europe, Middle East, Africa Asia – Pacific Manitowoc, Wisconsin, USA Ecully, France Shanghai, China Tel: +1 920 684 6621 Tel: +33 472 18 2020 Tel: +86 21 51113579 Fax: +1 920 683 6278 Fax: +33 472 18 2000 Fax: +86 21 51113578 Shady Grove, Pennsylvania, USA Singapore...
