AST ADL 280 RFID Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

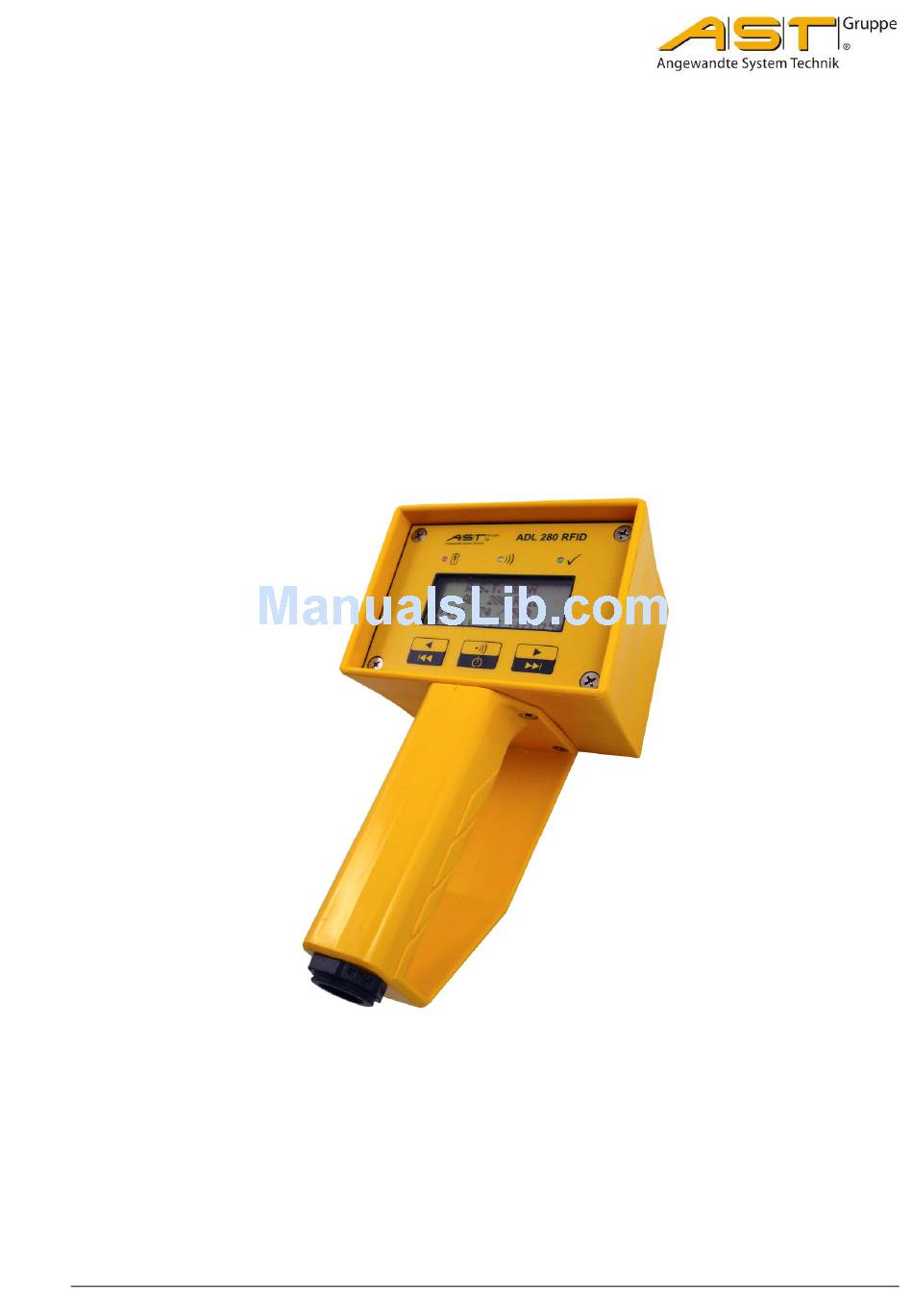

Subject to technical changes 11/2016
A.S.T. - Angewandte System Technik GmbH, Mess- und Regeltechnik
Data Logger
ADL 280 RFID
Operating Manual
A.S.T. - Angewandte System Technik GmbH, Mess- und Regeltechnik
Marschnerstraße 26
Telefon (03 51) 44 55 30
www.ast.de
Original
01307 Dresden
Telefax (03 51) 44 55 555
Seite 1 von 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADL 280 RFID and is the answer not in the manual?

Questions and answers

Summary of Contents for AST ADL 280 RFID

  • Page 1 Data Logger ADL 280 RFID Original Operating Manual A.S.T. - Angewandte System Technik GmbH, Mess- und Regeltechnik Marschnerstraße 26 01307 Dresden Telefon (03 51) 44 55 30 Telefax (03 51) 44 55 555 www.ast.de Subject to technical changes 11/2016 Seite 1 von 12...

  • Page 2: Table Of Contents

    Switching off the appliance .................... 7 Operation of software „xks280“ ................. 7 5.1. Installation of software „xks280“ ..................7 5.2. Reading out data from Data Logger „ADL 280 RFID“ ............ 7 5.3. Configuration of appliance ..................... 9 5.4. Additional functions of Data Logger ................11 5.5.

  • Page 3: Safety Instructions

    Method of functioning The Data Logger “ADL 280 RFID” is a reading device designed for use in conjunction with an A.S.T. RFID transponder. Power is supplied to the transponder by means of an alternating magnetic field with a frequency of 125 kHz.

  • Page 4: Specifications

    • Length: 206 mm (display 85 mm) • Height: 85 mm Connection: Micro USB 2.0 Type B (socket) Operation oft the appliance ADL 280 RFID 4.1. Power supply Power is supplied to the Data Logger by means of an integral rechargeable battery. If connected up to the USB port of a PC or a USB charger, power is supplied via the USB.

  • Page 5: Operating Controls

    Manual ADL 280 RFID 4.2. Operating controls Three pushbutton controls are provided for operating the Data Logger along with a display and an audible signal tone. LEDs Display Pushbutton controls Figure 2: Operating controls and display functions on the Data Logger...
  • Page 6 Manual ADL 280 RFID These various statuses are signalled by the LEDs as follows: Meaning Integral battery being charged Magnetic field switched on Measurement successful (simultaneously a brief audible signal tone will sound) After the Data Logger has been switched on, the following messages will appear in the display:...

  • Page 7: Implementation Of Measurement Procedure

    For complete removal of the installed software, the installer needs to be run again. 5.2. Reading out data from Data Logger „ADL 280 RFID“ Data from the Data Logger can be transferred to a PC by performing the following steps: 1.
  • Page 8 Manual ADL 280 RFID Figure 5: Software “xks280“: Continuation of an existing list 2. Connection of the Data Logger “ADL 280 RFID” to a USB port on the PC. Data readout takes place automatically. Number of datasets stored on the appliance...

  • Page 9: Configuration Of Appliance

    Afterwards the list of datasets can be completely emptied from the Data Logger ADL 280 RFID by actuating the command button “Delete from appliance”. CAUTION! The data should first be saved before pressing the command button “Delete from appliance”. Data deleted from the ADL 280 RFID are irretrievably lost! 5.3.
  • Page 10 Manual ADL 280 RFID a. automatically by activating the command “Set clock on PC” or b. by performing manual entry of the date and time and activating the command “Write data in device”. Note: After the date and time has been successfully altered on the appliance, a corresponding message will appear briefly within the status bar of the program window..

  • Page 11: Additional Functions Of Data Logger

    Manual ADL 280 RFID 5.4. Additional functions of Data Logger The following are additional functions of the Data Logger provided by the software: • Restarting of appliance (refer to Figure 8) on bottom right-hand side of the displayed image. • Display of the following in the “Tools” window (refer to Figure 9):...

  • Page 12: Troubleshooting Assistance

    Manual ADL 280 RFID Troubleshooting assistance This section deals with possible causes of problems and provides information on suggested corrective measures: Phenomenon Cause Remedy Connect up to a USB port/battery charger. This will Appliance cannot Battery flat ensure instant power supply while also charging the be switched on integral battery.
