- Page 2 SAFETY WARNINGS AND GUIDELINES This device is intended for indoor use only. Do not expose this device to water or moisture of any kind. Do not place drinks or other containers with moisture on or near the device. If moisture does get in or on the device, immediately unplug it from the power outlet and allow it to fully dry before reapplying power.
-
Page 3: Package Contents

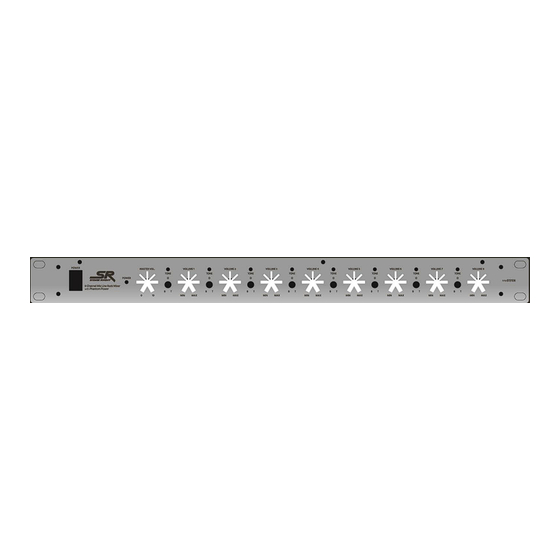

INTRODUCTION Thank you for purchasing this 8-Channel Mic/Line Mixer! This mixer features two inputs with balanced 1/4" TRS and unbalanced RCA connectors, and six inputs with balanced XLR microphone and 1/4" TRS line level inputs. It features a tone control for each input, which can attenuate either low or high frequencies, with 50Hz and 6kHz shelves respectively. -
Page 4: Product Overview
PRODUCT OVERVIEW Front Panel 1. Channel Volume Controls: Adjusts the input level of each individual channel. 2. Channel Tone Controls: Turn the knob clockwise to attenuate low frequencies (50Hz shelf) by up to 15dB. Turn the knob counterclockwise to attenuate high frequencies (6kHz shelf) by up to 22dB. -
Page 5: Customer Service
switches down to enable Phantom Power or slide them up to disable Phantom Power. 8. Channels 1-2 Inputs: One 1/4" TRS balanced microphone input and one RCA unbalanced line input for channels 1 and 2. 9. Channels 3-8 Inputs: Balanced XLR microphone and 1/4" TRS line inputs for channels 3 through 8. -
Page 6: Specifications
SPECIFICATIONS Model 615108 Microphone Level Inputs 6 balanced XLR and 2 balanced 1/4" TRS Line Level Inputs 6 balanced 1/4" TRS and 2 unbalanced RCA XLR Input Impedance 600 ohms 1/4" TRS Input Impedance 50 kilohms Aux/Bus Input Impedance 10 kilohms...
