Summary of Contents for Leicke KN39774

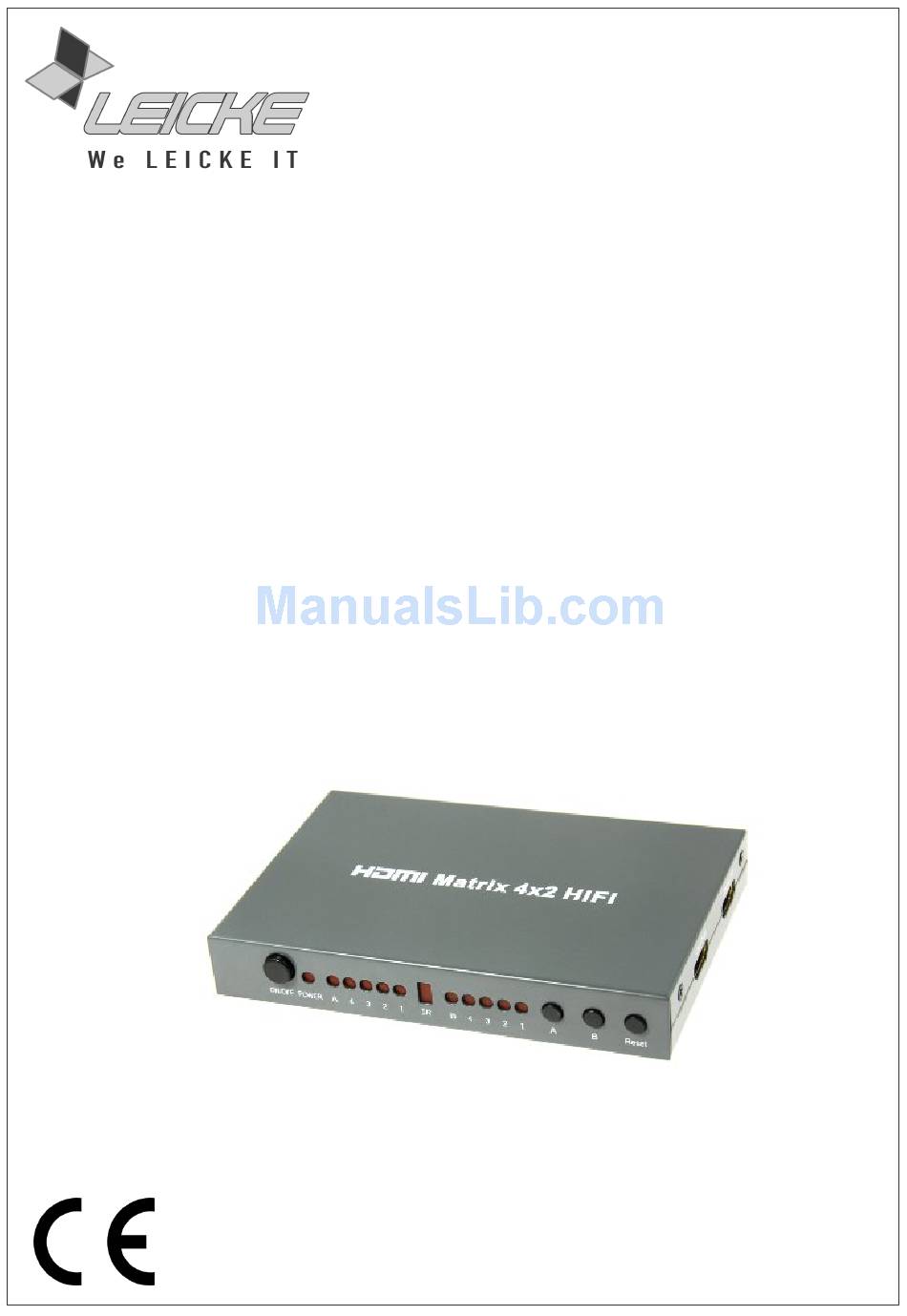

- Page 1 User's Manual 4x2 Matrix Switch Product number: KN39774...
- Page 2 To discover more about LEICKE products, or if you have any questions about this product, visit our website www.leicke.com (production & wholesale) or www.leicke-distributor.de...
-
Page 3: Package Contents
For optimum performance, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for further reference. Your LEICKE Team! PACKAGE CONTENTS Before attempting to use this device, please check the packaging and make sure the... -
Page 4: Technical Details
TECHNICAL DETAILS Signal Input/Output Input HDMI 1.3b, HDCP 1.2, 3D-capable (24 Hz) 480i/480p/576i/576p/720p/1080i/1080p @24/50/60fps, 225Mhz, 6.75Gbps Output HDMI 1.3b, HDCP 1.2, 3D-capable (24 Hz) 480i/480p/576i/576p/720p/1080i/1080p @24/50/60fps, 225Mhz, 6.75Gbps, 3D, Audio (S/PDIF) optical, analogue Connectors Input connector 4x HDMI type A Output connector 2x HDMI type A, Toslink, 3.5 mm stereo jack Bit Rate... -
Page 5: Panel Description
PANEL DESCRIPTION Please study the panel drawings below and become familiar with the signal input(s), output(s) and power connector. CONNECTION DIAGRAM... -
Page 6: Connection And Operation
CONNECTION AND OPERATION ATTENTION: To avoid damages to the video system by inrush current, please switch the amplifier/TV off before installing the Matrix Switch! Step 1: Please connect the source devices (DVD player etc.) with the interfaces 1-4 of the Switch. Step 2: Now connect the display devices (e.g. - Page 7 * Please read the corresponding instructions in the manual of the producer or in the Windows user assistance. If the problems cannot be solved, please don't hesitate to contact us. Our customer's support will be glad to help you under info@leicke-distributor.de.
-
Page 8: Safety Notes
SAFETY NOTES For your own safety and for long enjoyment of our product, please follow the following safety instructions: • Please use device as described in the manual. • To avoid damages to the video system by inrush current, please switch the amplifier/TV off before installing the Matrix Switch. - Page 9 LEICKE GmbH LEICKE Distributor (LEICKE GmbH) Dohnanyistr. 28 Dohnanyistr. 28 04103 Leipzig 04103 Leipzig Germany Germany Web: www.leicke.com Web: www.leicke-distributor.de Mail: info@leicke.com Mail: info@leicke-distributor.de Declaration of Conformity with regard to the EU directives 2014/35/EU, 2014/30/EU and 2011/65/EG. See also at www.leicke.com...
