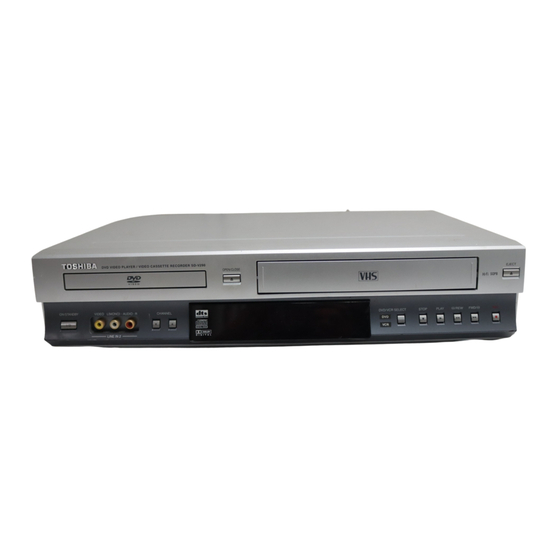

Toshiba SD-V290 Service Manual

Dvd video player & video cassette recorder
Hide thumbs Also See for SD-V290:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
FILE NO. 810-200226
SERVICE MANUAL
DVD VIDEO PLAYER &
VIDEO CASSETTE RECORDER
SD-V290
SD-V390
JANUARY, 2003
