Summary of Contents for RAA Self-Install Security System

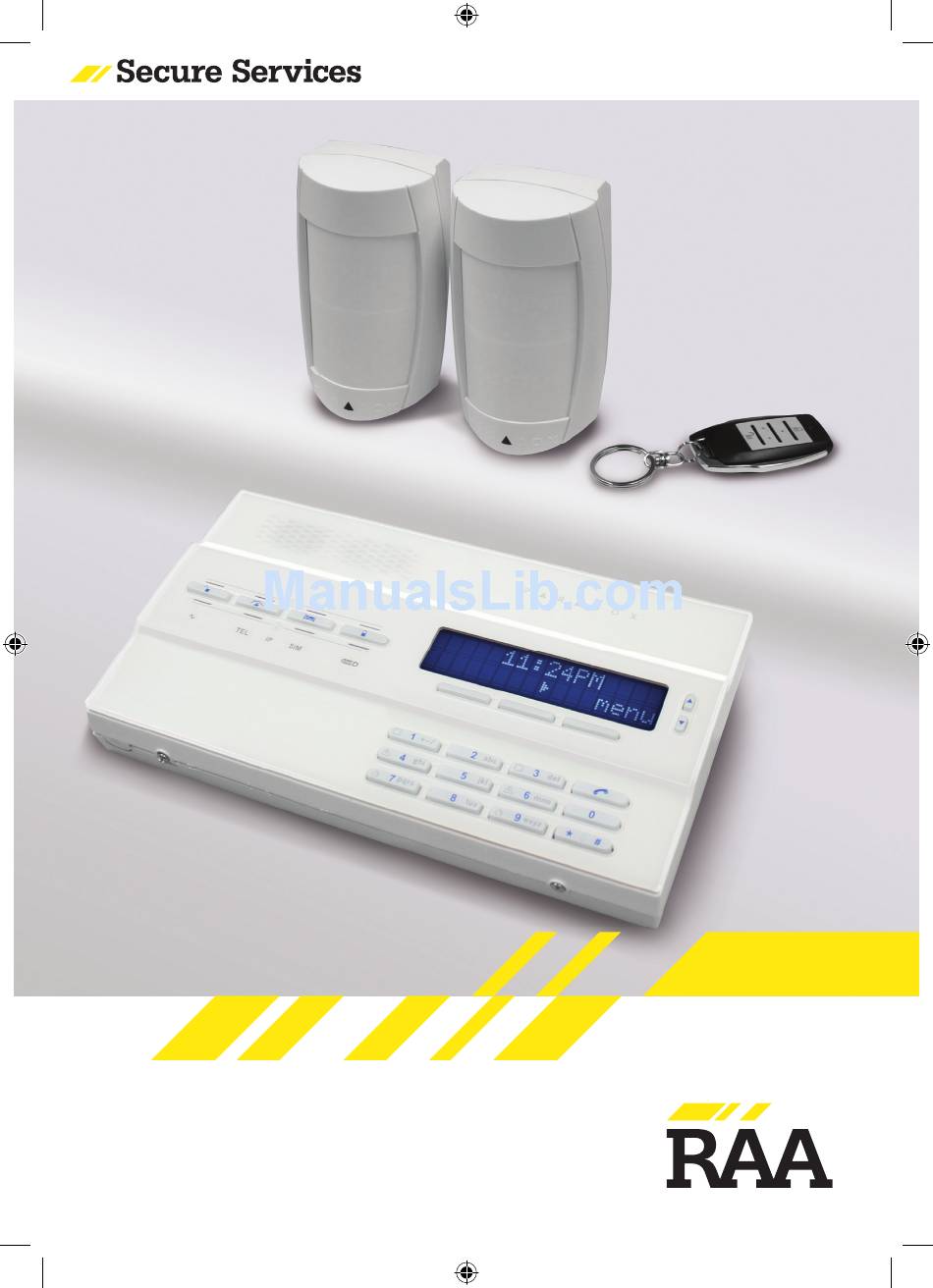

- Page 1 Self-Install Security System Installation and User Guide...
-
Page 3: Table Of Contents
Codepad and accessories Step 1 – Determine security system location Step 2 – Mounting motion sensors Step 3 – Mount the codepad Step 4 – Call RAA to activate monitoring User Guide User guide Arming and disarming Changing your user codes... -
Page 4: Installation Guide
Your wireless system is both easy to install and use. For self installation, please follow the instructions below. Call RAA on 1300 555 120 (option 1) if you have any questions. To install the Self-Install Security System you will need: 1. -
Page 6: Codepad And Accessories

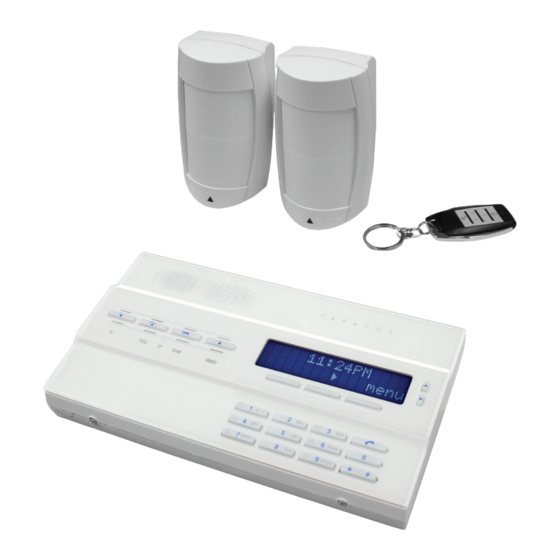

Self-Install Security System – Installation Codepad and accessories Your Self-Install Security System comes with: Wireless codepad – includes siren (pre-programmed) Plug pack 2 x wireless motion sensors (pre-programmed) 1 x alarm remote Self-adhesive tape... -
Page 8: Step 1 - Determine Security System Location
Self-Install Security System – Installation Step 1 – Determine security system location The location of the codepad and the wireless motion sensors affects the overall performance of your system. You will need to select the best location for the two sensors and the codepad. -
Page 10: Step 2 - Mounting Motion Sensors
Self-Install Security System – Installation Step 2 - Mounting motion sensors The supplied motion sensors are designed for indoor use only. The sensor should be installed on a wall in a corner location mounted at a height between 2.1 to 3.1 metres. - Page 11 4. Attach the double sided adhesive tape supplied to the rear surface of the motion sensor – (see below), that contacts the wall. 5. Remove the backing of the double sided adhesive tape and mount the detector to the wall in the desired location. For installation fl...
-
Page 12: Step 3 - Mount The Codepad
Self-Install Security System – Installation Step 3 – Mount the codepad The codepad needs to be mounted on the wall with a power point nearby. Mount the codepad using the double sided tape supplied. 1. Clean the area you wish to mount the codepad, preferably with alcohol wipes. - Page 13 Codepad rear view Self-adhesive tape Power cable will be attached here:...
-
Page 14: Step 4 - Call Raa To Activate Monitoring
Self-Install Security System – Installation Step 4 – Call RAA to activate monitoring Call RAA’s Monitoring Centre 1300 555 120 to setup the monitoring requirements, perform a live test and confi rm all signals are being received. The monitoring centre... -
Page 16: User Guide
Self-Install Security System – User Guide User guide Up and down Speaker One-touch keys LCD Screen scroll arrows Communication Power LED Main keypad Panic keys Status LEDs 1 & 3 – Panic Audible 4 & 6 – Medical Silent 7 & 9 – Fire Audible... -
Page 18: Arming And Disarming
Self-Install Security System – User Guide Arming and disarming With the alarm remote Your security system includes an alarm remote which performs the following functions: Pressing these two buttons together will activate an audible duress alarm. Disarm With the codepad... -
Page 19: Changing Your User Codes
Changing your user codes Your system has been automatically programmed with the master user code 1234, which needs to be changed. Please follow the instructions below: 1. Press the menu key 2. Use the down arrows until you reach 08-System Setup. 3. - Page 20 > 8202 4695 RAA Group 101 Richmond Road Mile End SA 5031...
