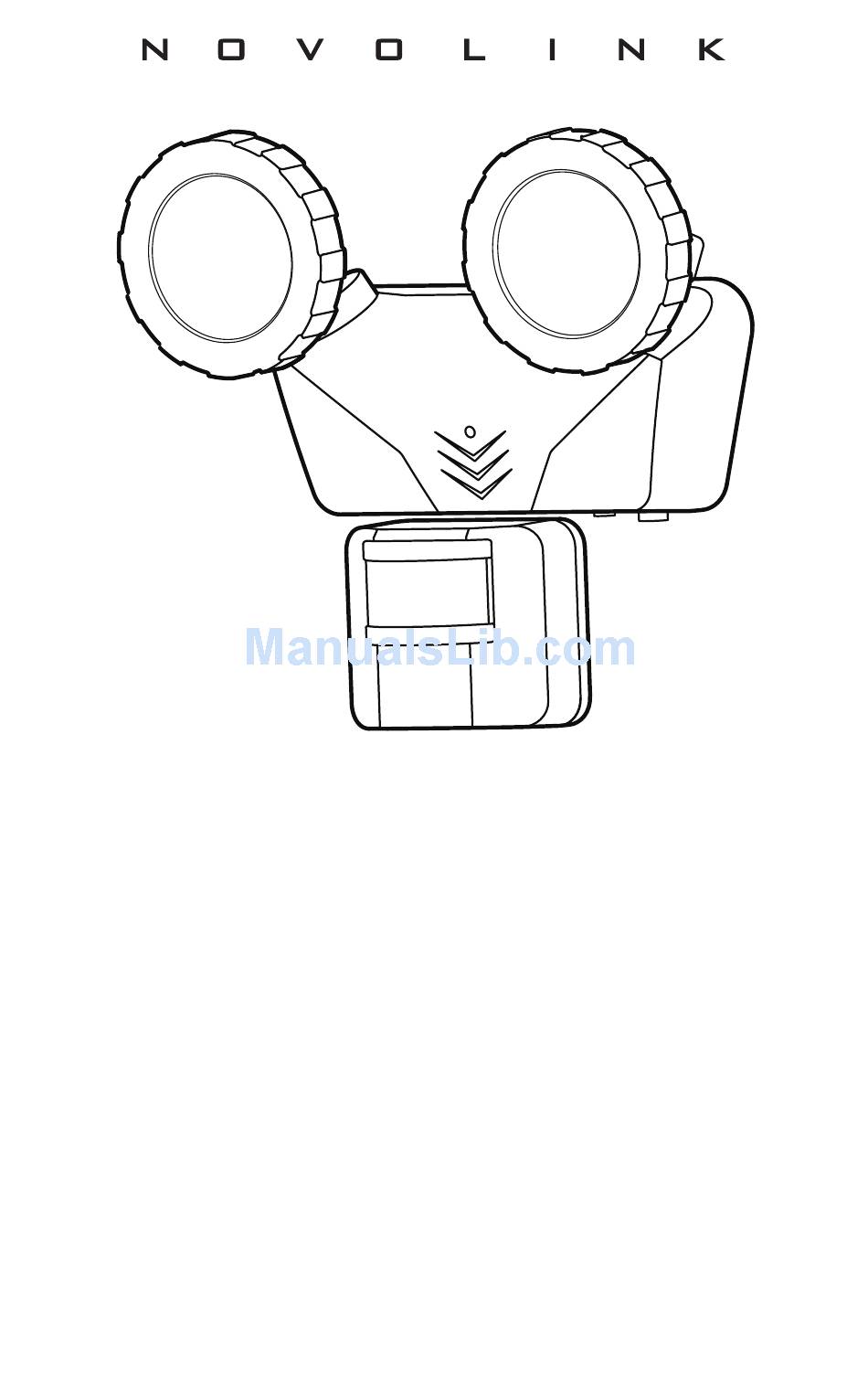

N L - D S W 2 / D S G 2
I N S T R U C T I O N M A N U A L
Questions, problems, missing parts?
We're ready to help. Call Novolink Customer Service
9 a.m. - 5 p.m., Monday-Friday
1-800-933-7188
NOVOLINKINC.COM
We appreciate the trust and confidence you have placed in Novolink through the
purchase of this solar motion light. We strive to continually create quality products
designed to enhance your home. Visit us online to see our full line of products
available for your home improvement needs. Thank you for choosing Novolink!
Advertisement
Table of Contents
Related Manuals for Novolink NL-DSW2
Summary of Contents for Novolink NL-DSW2
- Page 1 1-800-933-7188 NOVOLINKINC.COM We appreciate the trust and confidence you have placed in Novolink through the purchase of this solar motion light. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1-Year Warranty Tools and Hardware Main Package Contents Planning Installation Installing the Solar Panel Installing the Motion Light Connecting the Solar Panel to the Motion Light Charging and Replacing the Battery Operation Maintenance, Cleaning and Care Troubleshooting SAFETY INFORMATION This manual has been carefully designed and organized to make the assembly, operation, and continued maintenance of the product as easy and... -
Page 3: 1-Year Warranty
In no event shall the manufacturer be liable for any consequential, indirect, incidental, or special damages of any nature arising from the sale or use of this product. Contact Novolink Customer Service 1-800-933-7188 or visit www.novolinkinc.com... -
Page 4: Tools And Hardware
TOOLS AND HARDWARE TOOLS REQUIRED Power Drill Level Safety Goggles Phillips Screwdriver Pencil Ladder HARDWARE NEEDED PART DESCRIPTION QUANTITY Screws Plugs Quick-Clip mounting bracket... -
Page 5: Main Package Contents
MAIN PACKAGE CONTENTS PART DESCRIPTION QUANTITY Dual Head LED Motion Light Solar Panel with Wire... -
Page 6: Planning Installation
PLANNING INSTALLATION For the best result, locate the solar panel in a position where it receives direct sunlight and is generally free from cover and shade. Be aware and consider foliage and building overhangs, which will affect the solar panel’s ability to charge. NOTE: Face the solar panel due south for maximum sun exposure. -
Page 7: Installing The Solar Panel
INSTALLING THE SOLAR PANEL Place the solar panel mounting bracket on the desired wall. Mark with a pencil, the four pre-drilled holes in the mounting bracket on the wall. Utilize a standard power drill to create the mounting holes. - Page 8 Place four plugs (BB) in the mounting holes. Place the solar panel mounting bracket (B) over the four plugs (BB). Use a Phillips screwdriver to screw in the four screws (AA) into the pre-drilled holes of the mounting bracket. Pre-drilled holes BB (4) Solar Panel Mounting...
-
Page 9: Installing The Motion Light
INSTALLING THE MOTION LIGHT Place the Quick-Clip mounting bracket (CC) on the desired wall. Mark with a pencil, the two pre-drilled holes in the mounting brack- et on the wall. Utilize a standard power drill to create the mounting holes. Place two plugs (BB) in the mounting holes. - Page 10 INSTALLING THE MOTION LIGHT Once the Quick-Clip mounting bracket (CC) is installed, ensure all the screws are tightly fastened. The LED Motion Light is now ready to be positioned into place. Slide the light hook down into the Quick-Clip.
-
Page 11: Connecting The Solar Panel To The Motion Light
CONNECTING THE SOLAR PANEL TO THE MOTION LIGHT Insert the wire plug from the solar panel to the motion light socket located underneath the battery housing. The LED Solar Motion Light is now installed and ready to charge. -
Page 12: Charging And Replacing The Battery
CHARGING AND REPLACING THE BATTERY Before Use Before the LED Solar Motion Light can operate to its full capacity, the solar panel needs to be in sunlight for 3 days to fully charge the included battery. Charge the unit in the “OFF” position. Once Charged The Motion Light will charge automatically everyday, as long as the Solar Panel is exposed to direct sunlight. - Page 13 Separate the battery pack connector. Remove the old battery pack and replace it with a new identical rechargeable battery pack. Battery Replace the cover of the battery housing and secure it with the four screws. NOTE: Please contact Novolink for battery replacement information.
-
Page 14: Operation
OPERATION OFF/AUTO Switch: Light will turn on when motion is detected at nighttime only. If the battery has limited power, the unit will automatically go into ECO mode, where in the light will reduce brightness in order to conserve battery power. Adjustable features: •... -
Page 15: Maintenance, Cleaning And Care
MAINTENANCE, CLEANING AND CARE • Periodically check the connection from the solar panel to the light. Ensure this plug is correctly inserted. • Some seasonal adjustment of the solar panel may be required to offset shorter charge days during the winter. •... -
Page 16: Troubleshooting
TROUBLESHOOTING Problem Solution Mount the solar panel in a position that will Where should the solar panel be enable the maximum amount of light to be mounted? absorbed. In the Northern Hemi- sphere this is usually south facing. The solar panel can charge the internal battery Does the solar panel require direct sun to in direct and indirect light.
