Summary of Contents for Boss 950

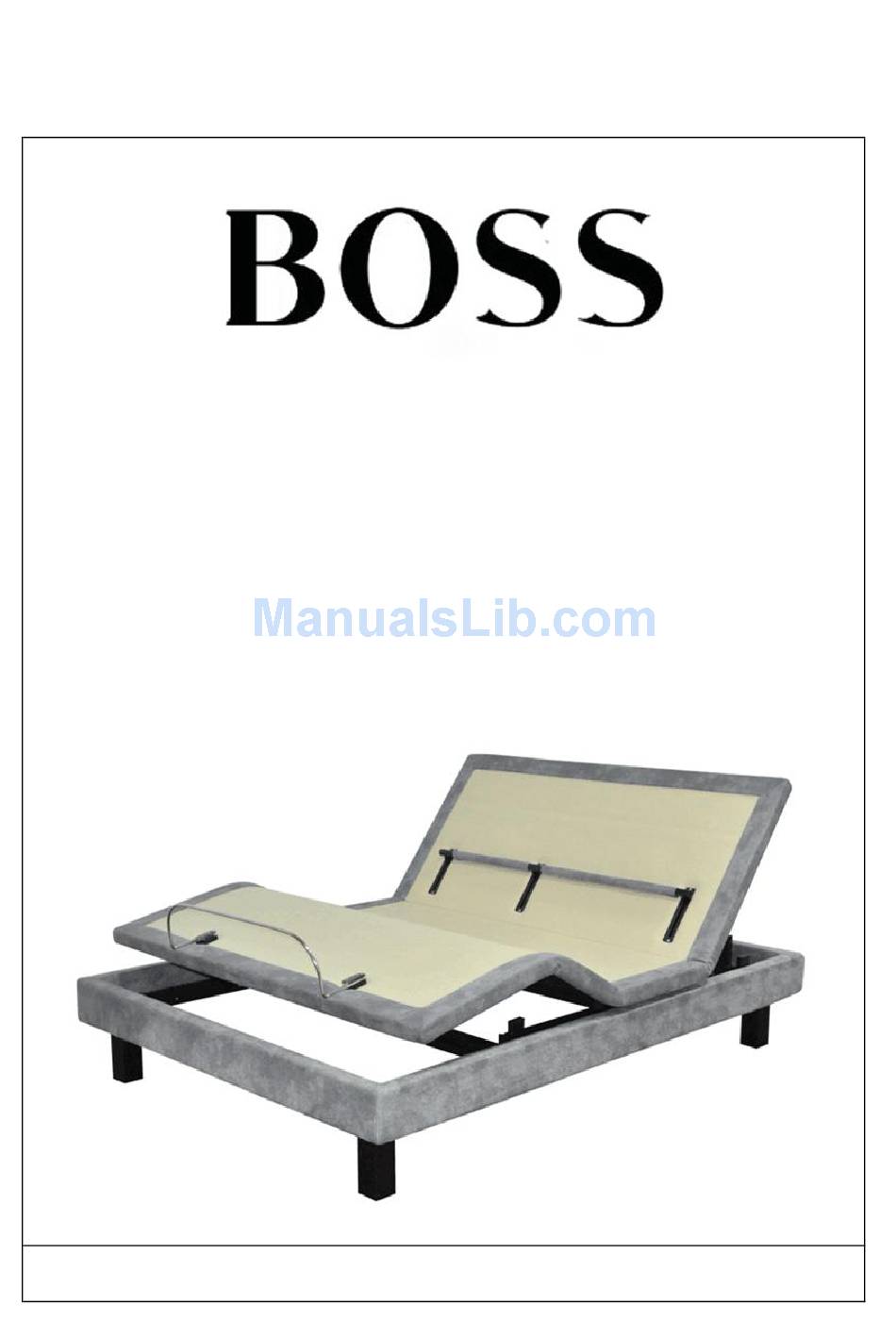

- Page 1 USER'S MANUAL BOSS Beds 950 http://bossbeds.ca...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions ………………………………………………………………………………………….. Parts List ……………………………………………………………………………………………………..…. Under Bed View ……………………………………………………………………………………………….. Electronics Overview ….…………………………………………………………………………………………. Installation ……………………………………………………………………………………………………….. Wireless Remote Control …………………………………………………………………………………… APP Use Guide ….…………………………………………………………………………………………… Audio and USB Charge Use Guide ….…………………………………………………………………………………………… Remote Pairing ……………………………………………………………………………………………….. Memory Setting …………………………………………………………………………………………….. Setting Up Two Bases.. …………………………………………………………………………………… Headboard Brackets Installation ..…………………………………………………………………………... -
Page 3: Safety Instructions
Safety Instructions Safety Disclaimer Thank you for purchasing a Bossbeds adjustable bed base. For your safety, please read all instructions carefully before using this adjustable base. Save these instructions for future reference. Attention: Keep the base unplugged from the electrical outlet before operating any part of the base. To prevent the risk of electric shock, always unplug the base before cleaning. -
Page 4: Fabric Care
Safety Instructions Product Ratings: The lift motors are not designed to operate continuously for more than (2) minutes in an (18) minutes time period. Attempting to circumvent or exceed this rating will shorten the life expectancy of the product and may void the warranty. -
Page 5: Parts List
Parts List Ensure you have received all the parts listed below before discarding the packing materials. Parts List: A) Wireless Remote Control and AAA batteries [3] B) Legs and Washers (Note that the legs are two piece legs) [4] C) Mattress Retainer [1] D) Power Supply [1] E) Power Cord [1] F) Headboard Bracket [2]... -
Page 6: Under Bed View
Under Bed View Massage Motor LED Light Massage Motor Foot Motor Head Motor Subwoofer Control Box LED Light LED Light Head Tilt Lumbar Motor Motor USB Charge USB Charge and Outlet and Outlet Main Speaker Sub Speaker Massage Motors http://bossbeds.ca... -
Page 7: Electronics Overview
Electronics Overview Not to Scale, Only for illustration purposes. Read all illustrations and instructions before beginning the installation process. AC Cord Head Motor Led Light Power Supply DC Cord Foot Motor Wireless Head Tilt Sync Cable Control Box Lumbar Motor Remote Motor http://bossbeds.ca... -
Page 8: Installation
Installation STEP 1: Remove packing materials Put the bed base in a desired place with the bottom of the box facing up. Remove box cover, take out all of the packing materials and put aside, Make sure not to puncture the bed with any sharp objects. - Page 9 Installation STEP 5: Remote After the base is connected to the power supply, install three AAA batteries into the remote battery compartment. See pages 9 and 10 to learn how to operate the remote. STEP 6: Install mattress retainer *Locate the mattress retainer as shown below [1)]; Insert the mattress retainer into the hooks at the foot of the bed as shown [2)].
-
Page 10: Wireless Remote Control
Wireless Remote Control Remote Overview Head Up Head Tilt Up Foot Up Head Down Foot Down Zero Gravity Flat Preset Position Memory A Memory B Preset Preset Head Massage Head Tilt Down Intensity Lumbar Up Massage Timer Foot Massage Lumbar Down Intensity Under Bed Massage Mode... - Page 11 Wireless Remote Control Adjusting Features The HEAD UP/DOWN button raises/lowers the head section of the base The FOOT UP/DOWN button raises/lowers the foot section of the base The HEAD TILT UP/DOWN button customizes the level of head support The LUMBAR UP/DOWN button customizes the lever of lumbar support One touch ZERO GRAVITY preset...
- Page 12 Wireless Remote Control Massage Features The HEAD button increases or decreases the head massage intensities The FOOT button increases or decreases the foot massage intensities The ALL/OFF button shuts off all massage features. The MASSAGE model switch button, there are three massage models.
-
Page 13: App Use Guide
APP Use Guide Insure the smart device bluetooth turned on before using APP. STEP 1: Search "Bossbeds" in APP Store( for Apple devices) or Google Play( for Android), then install software into the smart device. STEP 2: Open Bossbeds APP, click ( 4M ) BEDDING, will enter into POSITIONS page. -
Page 14: Audio And Usb Charge Use Guide
Audio and USB Charge Use Guide Audio Guide Bluetooth to Audio Cable connection STEP 1: Bluetooth connect to base audio swift button Turn on smart device bluetooth, search the base signal start the name of "Bed Sound ******" and connect it. The Press button base speaker shares all smart device audio "VOL+"... -
Page 15: Remote Pairing
Remote Pairing Attention: All bases are set to the different DIP of the remote for easier use. You need to pair your remote if you need one remote controls two bases simultaneously. If using only one base normally, proceed to page 14. STEP 1: Press and hold the "LINK BUTTON"... -
Page 16: Memory Setting
Memory Setting STEP 1: Ensure the base is connected to the power supply correctly and the remote control works properly. Ensure the base is in the Flat position. Make sure the massage, LED light and other functions are turned off. STEP 2: ○... -
Page 17: Setting Up Two Bases
Setting Up Two Bases How to operate two bed bases simultaneously STEP 1: The sync cord is needed when connecting two CK or TXL bases together. STEP 2: How to synchronize the two bases: Use the sync cord connecting base A control box in sync port with base B sync port. -
Page 18: Headboard Brackets Installation
Headboard Brackets Installation STEP 1: Open the headboard bracket accessory package and confirm that all the pieces listed below are included: Headboard Brackets [2] Headboard Connecting Components [2] Short Bolts (8) Long Bolts M8 [4] Large Washers [2] Small Washers [12] Hex Key [1] Long Bolts M10 [2] STEP 2:... -
Page 19: Trouble Shooting
Trouble Shooting If one or more functions on the bed base have stopped operating, please check the bed as follow: ◎Check under the bed base to verify that the wired connections are secure and that there are no cords or bedding obstructing the movement of the base. ◎Check to see if the bed base is connected to the power supply correctly.
