User Manual

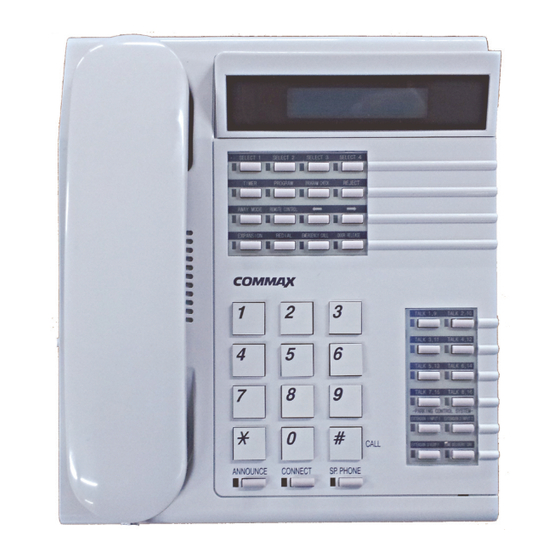

AUDIOGATE SECURITY STATION CDS-2AG
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDS-2AG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commax CDS-2AG

Summary of Contents for Commax CDS-2AG

  • Page 1: User Manual

    User Manual AUDIOGATE SECURITY STATION CDS-2AG • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.

  • Page 2: Table Of Contents

    19. Specification and Feature................20 1. Things to be aware before installation CDS-2AG is to be connected with a lobby phone at the public entrance via 4 common wires with 1 channel / 2-wire voice communication, “Balanced Type”. CDS-2AG is expandable up to 4 stations by allocating an ID to each device.

  • Page 3: Important Safeguards

    2. Important Safeguards Please follow the things described below in order to prevent any danger or property damage. Prohibition. Warning No disassembly It may cause a serious damage or injury if violated. No touch Caution Must follow strictly. Shows plugging out the power cord It may cause a minor damage or injury if violated.
  • Page 4 Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of arbitrarily (please contact the of the product, please plug out into the ventilation hole.

  • Page 5: Parts

    3. Parts names ⑫ Item Item Set up and input button Broadcasting button Paging volume control switch Call operating button 10-key button Speakerphone button Building button Paging button Speed dial input and set up button Call waiting button (1~4) Hand set...
  • Page 6 Button details Buttons 1) “SELECT 1~4” button : check a missed call 2) “TIMER” button : to set up time 3) “PROGRAM” button : to input security station program set up 4) “PROGRAM CHECK” button : to change security station program set up 5) “REJECT”...
  • Page 7 Buttons 1) 10 key buttons : to dial numbers 2) Building button(*) : to input building number 3) Paging button(#) : right after entering a household unit number 4) Broadcasting button : Broadcasting among security stations 5) Call operating button : Forwarding a call from a unit to another unit/security station 6) Speakerphone button : Speakerphone function Speed dial button...

  • Page 8: Household Unit Call

    ※ ※ Caution 1) Please place a handset on the hook. (If it is placed unhooked, all calls and pages will not be received) 2) When unit numbers are being registered at the lobby phone, this security station device must be off. 3) Some of the above functions are disabled depending on the security station device.

  • Page 9: To Call A Lobby Phone

    3) Dial the household unit number and press “#” to connect a unit-to-unit call (double tone sounds, lamp turns off, and “Exchange OK...” is displayed on the LCD). ※ ※ Reference If the number is mis-pressed, please use “◀” button to correct. 4) Place the handset on the hook.

  • Page 10: Broadcasting

    7. Broadcasting 1) Pick up a handset and press “Broadcasting” button (Ref. Page 6). 2) Make an announcement. 8.“REJECT” function ※ ※ Remarks - This function is useful when security guards are out of office. (Only functional as the “Program 02” is set up) - If the security station power is turned off and back on, “REJECT”...

  • Page 11: In Case Of Emergency

    To check the household unit’s “Away” status 1) Pick up a handset or press “Speakerphone” button. 2) Enter the building number + “*” key and enter the household unit number and then, “Paging” button. 3) If the household is set to “Away” mode, “OUT” message is displayed on the LCD.

  • Page 12: To Alert A Delivery Package (Parcel)

    11. To alert a delivery package (parcel) ※ ※ This is function if the household units have “Parcel display” mode available. To alert a delivery package from station to household unit 1) Press “Speakerphone” button. 2) Enter the building number + “*” key + household unit number. 3) Press “Parcel”...

  • Page 13: To Set The Time

    2) Enter the building number that you wish to check + “*”(Building button) and enter the lowest household unit number. 3) Press “Extension” button. 4) Press “Confirm” button 5) Enter the highest household unit number (*do not enter the building number again).
  • Page 14 ※ If a sub unit is not installed, just press “#”(Paging button). 6) Press “#”(Paging button) and hang up to complete the registration. To register LP (License Plate) number for a household unit (for a parking control) ※ 2 LP numbers are allowed to register per each household unit. If a LP number for a household is already known 1) Press “Speakerphone”...
  • Page 15 1) Connect a PC to the RS-232 port of security station. 2) Execute a program provided by COMMAX and input data of household unit number. 3) Execute the program number 06 at the security station to turn on the data receiving mode.
  • Page 16 5) Uploading the revised data to the Floor Distributor starts. Setting the function of DTMF ※ You can use the keypad to call the guard(or other household unit) or open the door if household unit device is phone with keypad. 1) After downloading the household unit number data from the Floor Distributor via a security station, use (◀...

  • Page 17: Built-In Program (Security Station)

    15. Built-in Program (Security Station) 1) Press “Confirm” button. (“Password – “ is displayed on the LCD) 2) Enter “9999”and press “Input” button. (“Program – “ is displayed on the LCD) 3) Use (◀ or ▶) buttons to select Program (Ref. [Chart 1]) 4) Enter data and press “Input”...
  • Page 18 Program Number Content Data selection Pr [11] Speed dial 5 Building number + unit number Pr [12] Speed dial 6 Building number + unit number Pr [13] Speed dial 7 Building number + unit number Pr [14] Speed dial 8 Building number + unit number Pr [15] Pr [16]...

  • Page 19: System Diagram

    16. System Diagram...

  • Page 20: Wiring

    - If more than 3 security stations are installed and a combination of CDS- 4GS & CDS-2AG are in use, CDS-4GS must be set up as Master (ID: 01) and Slave 1 (ID: 02). Therefore the ID for CDS-2AG should be set...

  • Page 21: Other Information

    ※ Before making a call for a faulty equipment, please read the manual thoroughly. ※ Please check all status prior to making a customer service call. 19. Specification and Feature Model CDS-2AG Wiring 4 Common Wires Power Power Consumption Standby : 70mA...
  • Page 22 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com PM042AG00010 Printed In Korea / 2014.04.104...
