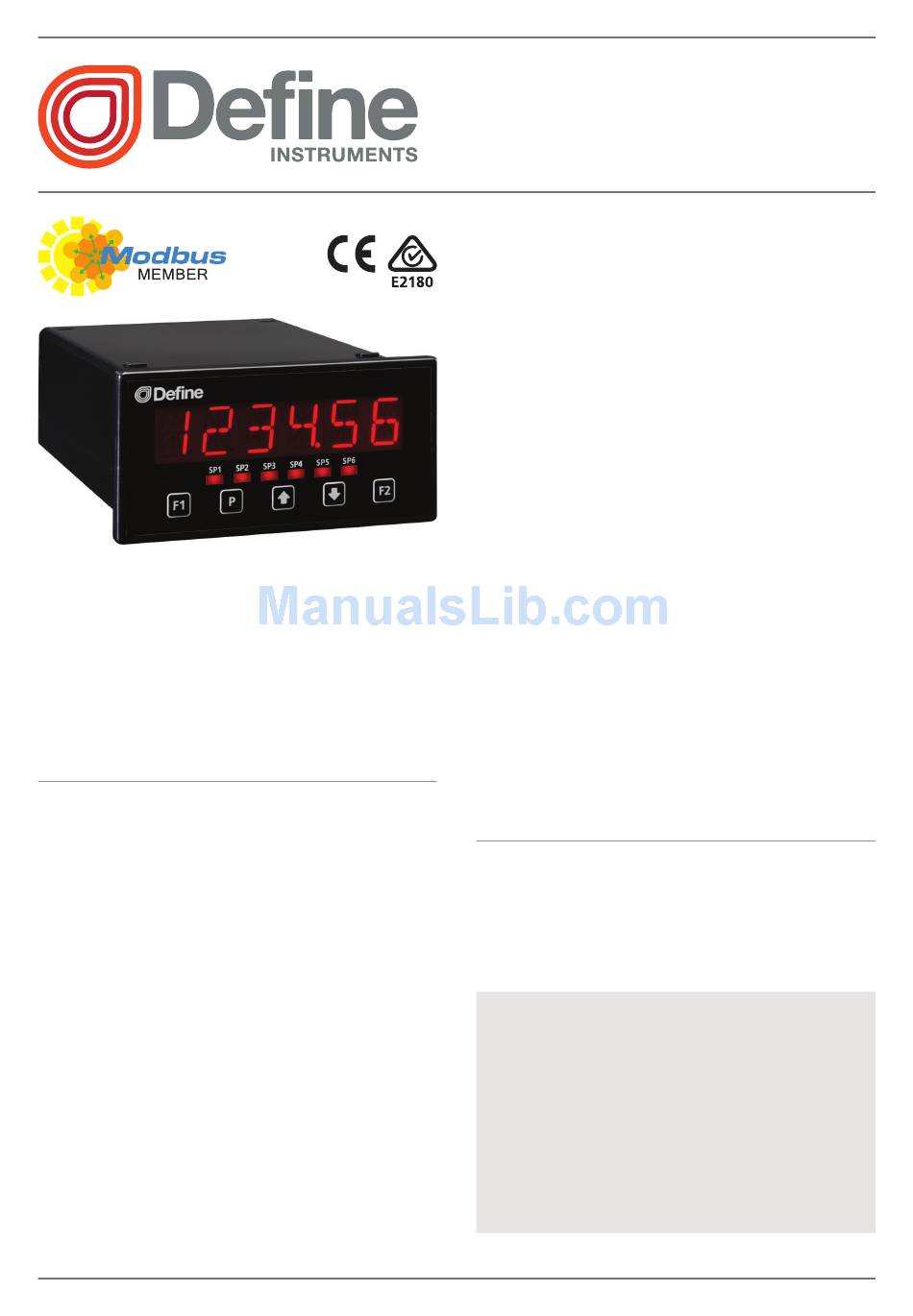

PRO-PRC
Quad Process Controller
This quad channel process controller is
ideal for numerous industrial applica-
tions with 0-20mA or 4-20mA DC in-
puts. It can be used either on its own, or
inconjunction with another instrument
(such as a transmitter).
One of the key features of this control-
ler is its ability to average the inputs
across 2, 3 or 4 input channels, and use
this averaged value for a display source
or for setpoint activation.
There is also the option to log your data
and store it in the controller's internal
memory, where it can be printed or re-
trieved in Excel-compatible format for
easy analysis.
Order Codes
PRO-PRC
-HV
85-265V AC / 95-370V DC
-LV
15-48V AC / 10-72V DC
Options
-R2
2 x relay outputs
-R4
4 x relay outputs
-A
1 x mA/V analog output
-S2R 1 x RS232 (RJ11 terminal)
-S4S 1 x RS485 (screw terminal)
-D
Data logging 3,328kB
PRO-PRC-MAN-16V04 (0719)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-PRC and is the answer not in the manual?

Questions and answers

Summary of Contents for Define PRO-PRC

  • Page 1: Table Of Contents

    -S2R 1 x RS232 (RJ11 terminal) 8 - Reset PIN Numbers / View -S4S 1 x RS485 (screw terminal) Firmware Version ...... 22 Data logging 3,328kB A - Appendix A - Serial Modes ..23 Copyright © 2016 Defi ne Instruments PRO-PRC-MAN-16V04 (0719)
  • Page 2: Specifications

    LED indicators 6 setpoint indicator LED's Analog output type 1 x Isolated 16 bit Digits 1 row of 6 digits, 13mm (0.5"), 14 4–20mA / 0–10V (selectable) segment alphanumeric LED Display range 0.1 to 99999.9 PRO-PRC-MAN-16V04 (0719) Copyright © 2016 Defi ne Instruments...
  • Page 3: Front Panel & Display

    Valley value, or to view the current channel average value (see 2.3). This button is used to access the Setpoint Setup menu (Section 6) and the Set- point Direct Access menu (Section 7). Copyright © 2016 Defi ne Instruments PRO-PRC-MAN-16V04 (0719)
  • Page 4 Current input value for channel 4 VALLEY The minimum measured value since the instrument was turned on or reset (see 5.3H to set the source for 'Peak/Valley') CH AVE Channel average value (see 5.3I) PRO-PRC-MAN-16V04 (0719) Copyright © 2016 Defi ne Instruments...
  • Page 5: Wiring

    3.3 - Relay outputs –R2 –R4 See 3.1A If your controller has relay outputs fi tted, wire them as shown. Relays can be pro- grammed to operate within the total span range of the controller. Copyright © 2016 Defi ne Instruments PRO-PRC-MAN-16V04 (0719)
  • Page 6 › Valley Resets the valley reading › Hold Holds the current display value Valley Hold Test Peak › Test Resets the meter › Peak Resets the peak reading PRO-PRC-MAN-16V04 (0719) Copyright © 2016 Defi ne Instruments...
  • Page 7 10–72V DC) HV power LV power supply supply Once you have completed the wiring process it is safe to switch on your power supply. Ensure that your display is functioning before you proceed. Copyright © 2016 Defi ne Instruments PRO-PRC-MAN-16V04 (0719)
  • Page 8: Dimensions & Installation

    4.1 - Case dimensions mm (4.72") mm (1.54") (0.16") Cabling Allowance (3.78") (3.62") minimum depth required behind panel mm (6.10") (4.72") (1.54") mm (0.16") Cabling Allowance (1.89") (1.77") minimum depth required behind panel mm (6.10") PRO-PRC-MAN-16V04 (0719) Copyright © 2016 Defi ne Instruments...
  • Page 9 Screws evenly until the unit sits fi rmly against the panel. Do not Panel Gasket over-tighten the screws. Mounting Clips Panel Cutout 92mm Screws ±.5 (3.62″ ±.02 45mm ±.5 (1.77″ ±.02 Copyright © 2016 Defi ne Instruments PRO-PRC-MAN-16V04 (0719)
  • Page 10: Input Setup & Calibration

    _ _ _ AVERAGING SAMPLES scrolls across the display and toggles with the cur- rent averaging. Using the buttons, alter the number of input samples that the controller will average, and then press PRO-PRC-MAN-16V04 (0719) Copyright © 2016 Defi ne Instruments...
  • Page 11 In Auto mode, the main display constantly cycles through all available input channels (I.e. CH 1, followed by the current value for that channel, then CH 2,CH 3 etc). In CH AVE mode the display will show the channel average value. Copyright © 2016 Defi ne Instruments PRO-PRC-MAN-16V04 (0719)
  • Page 12 The CH AVE value is stored by the controller and can be used as the default view for the operational display, or as a source for analog output, serial output or PRO-PRC-MAN-16V04 (0719) Copyright © 2016 Defi ne Instruments...
  • Page 13 ENTER and set the date and time. _ _ _ HOURS scrolls across the display and toggles with the current selection. Use the buttons to adjust the hour (from 0 to 23), and press Copyright © 2016 Defi ne Instruments PRO-PRC-MAN-16V04 (0719)
  • Page 14 _ _ _ APPLY LOW INPUT SIGNAL – – – –ENTER LOW DISPLAY VALUE scrolls across the display, and the currently selected low display value appears. Apply the required low level input signal to the meter, and wait a moment for the PRO-PRC-MAN-16V04 (0719) Copyright © 2016 Defi ne Instruments...
  • Page 15 Press to accept. You will be directed back to 5.6A to select a new channel to calibrate. (To enter step 5.7, you must select SKIP at 5.6A.) Copyright © 2016 Defi ne Instruments PRO-PRC-MAN-16V04 (0719)
  • Page 16 _ _ _ CAL HIGH ANALOG O/P scrolls across the display and toggles with a calibration number (shown in internal units). Using the buttons, calibrate your high analog output as required. Then press PRO-PRC-MAN-16V04 (0719) Copyright © 2016 Defi ne Instruments...
  • Page 17 19200, 38400, 57600 or 115200. Then press _ _ _ PARITY scrolls across the display and toggles with the currently selected parity. Using the buttons, select: NONE, ODD or EVEN, and then press Copyright © 2016 Defi ne Instruments PRO-PRC-MAN-16V04 (0719)
  • Page 18 _ _ _ ENTER NEW CAL PIN NUMBER scrolls across the display and toggles with the current PIN (default 1). Using the buttons, enter your new Cal PIN number. Then press to exit to the operational display. PRO-PRC-MAN-16V04 (0719) Copyright © 2016 Defi ne Instruments...
  • Page 19: 6.2 - Setpoint Setup

    _ _ _ SP VALUE scrolls across the display and toggles with the current value for the selected setpoint. Using the buttons, adjust the display value at which the selected setpoint will activate, and then press Copyright © 2016 Defi ne Instruments PRO-PRC-MAN-16V04 (0719)
  • Page 20 _ _ _ HYSTERESIS VALUE scrolls across the display and toggles with the hyster- esis value for the selected setpoint. Use the buttons to adjust this value if required, and then press PRO-PRC-MAN-16V04 (0719) Copyright © 2016 Defi ne Instruments...
  • Page 21 _ _ _ ENTER NEW SP PIN NUMBER scrolls across the display and toggles with the current PIN (default 1). Using the buttons, enter your new SP PIN number. Then press to exit to the operational display. Copyright © 2016 Defi ne Instruments PRO-PRC-MAN-16V04 (0719)
  • Page 22: Setpoint Direct Access

    – ALL PIN NUMBERS RESET TO 1. Reset the default PIN numbers if required by following the instructions in 5.9 and 6.3, entering ‘1’ whenever you are prompted for your current PIN. PRO-PRC-MAN-16V04 (0719) Copyright © 2016 Defi ne Instruments...
  • Page 23: A - Appendix A - Serial Modes

    1000000, but note that not all registers will accept this range. Message Terminator - This is the last character, and must be either a '$' (dollar) or an '*' (asterisk). Neither of these characters should be used elsewhere in the Copyright © 2016 Defi ne Instruments PRO-PRC-MAN-16V04 (0719)
  • Page 24 Controller Response - Aft er the controller has completed a read or write instruction, it responds by sending a carriage return/line feed (CR/LF) back to the host. If the instruction was a read command, the CR/LF follows the last character in the PRO-PRC-MAN-16V04 (0719) Copyright © 2016 Defi ne Instruments...
  • Page 25 (up to 62 characters). This is accessed using a standard Modbus read/write command for holding registers, where each 16 bit register holds 2 x ASCII string characters in sequence. Copyright © 2016 Defi ne Instruments PRO-PRC-MAN-16V04 (0719)
  • Page 26 (If there is no decimal point, then the fi rst character is a space. Leading zero blanking applies.) Status - Single character output value status. 'U'=Under, 'O'=Over, 'E'=Error. End - ETX character (ASCII 03) PRO-PRC-MAN-16V04 (0719) Copyright © 2016 Defi ne Instruments...
  • Page 27 Copyright © 2016 Defi ne Instruments PRO-PRC-MAN-16V04 (0719)
  • Page 28 Auckland 0661, New Zealand Ph: +64 (9) 835 1550 | Aus: 1800 810 820 South Africa (Pretoria) Fax: +64 (9) 835 1250 sales@defi neinstruments.co.za sales@defi neinstruments.co.nz www.defi neinstruments.co.za www.defi neinstruments.co.nz PRO-PRC MV2.3 Document Revision Code: PRO-PRC-MAN-16V04 Date Code: 160719...
