Summary of Contents for Annso RMB-15
-
Page 1: User Manual

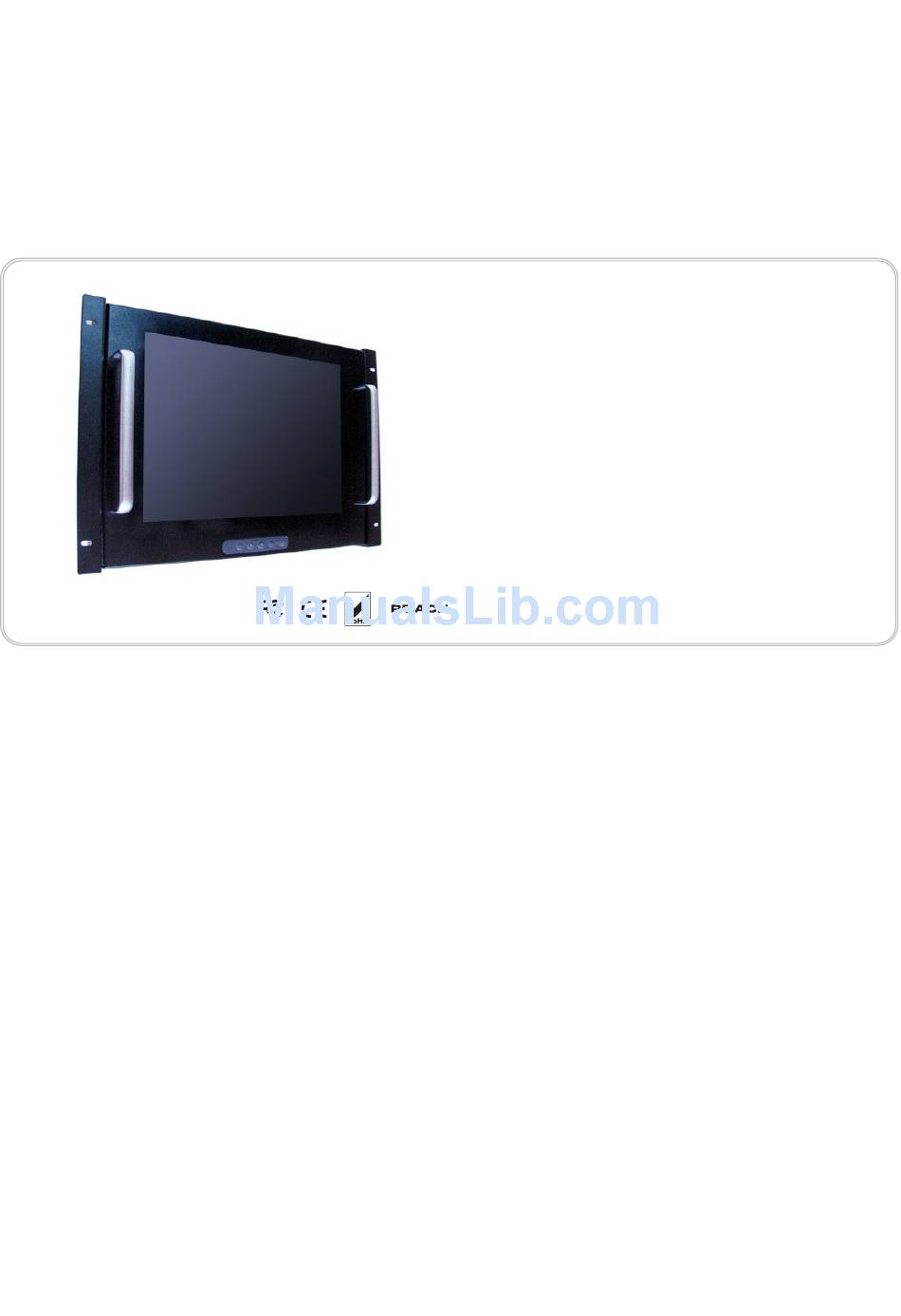

User Manual Rack Mount Display Monitor RMB-15 7U 15 inch Rack Mount Display Monitor Options : - AV, S-video input - Touchscreen... -
Page 2: Table Of Contents
Contents < Part. 1 > RMB-15 RMB- Package Content Structure Diagram & Dimension P.1 - 2 Installation Specifi cations / OSD < Part. 2 > Product Specifi cations P.4 - 5 On-screen Display Operation ( OSD ) < Part. 3 >... -
Page 3: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 4: Part. 1 > Rmb-15
< Part 1 > < 1.1 > Package Content RMB-15 RMB-15 unit X 1 - 1.8 M VGA cable X 1 - 1.8 M DVI cable X 1 - 1.8 M Audio cable X 1 - Power cord X 1 <... - Page 5 < 1.2 > Dimension Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 10 kg 7.5 kg 480 x 60 x 311 mm 620 x 210 x 440 mm RMB-15...
-
Page 6: Installation
< 1.3 > Rack Mounting Installation Step Mount the RMB-15 display panel with M6 screw set 4 x M6 screw set are required M6 screw sets are not provided. Step 90° tilt adjustment while mounted in rack: +45°~-45°... -
Page 7: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations RMB-15 Manufacturer CHIMEI INNOLUX Panel Panel Size ( diagonal ) 15-inch TFT color LCD Display pixel ( dots x lines ) 1024 x 768 Brightness ( typ. ) Contrast Ratio ( typ.) - Page 8 Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 480 x 60 x 311 mm Specifi...
-
Page 9: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) RMB-15 Menu/Enter Auto (VGA mode) -
Page 10: Part. 3 > Options 3.1 Touchscreen
< Part 3 > < 3.1 > Options : Touchscreen F21" USB Touchscreen Specifi cation Model e-Resistive e-Capacitive Technology 5-Wire Resistive Capacitive Touch Point Single Single Method Stylus or Finger Finger Activation Force ≤ 50g / Stylus=R0.8 ≤ 50g Durability 10 million touches 300 million touches Response Time...
