Summary of Contents for Radio Shack 1500458

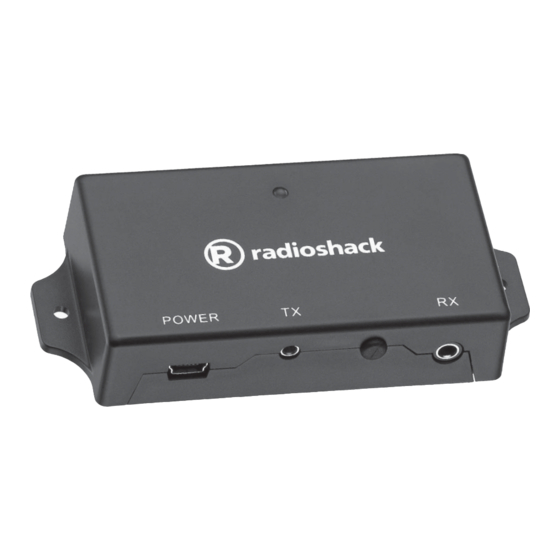

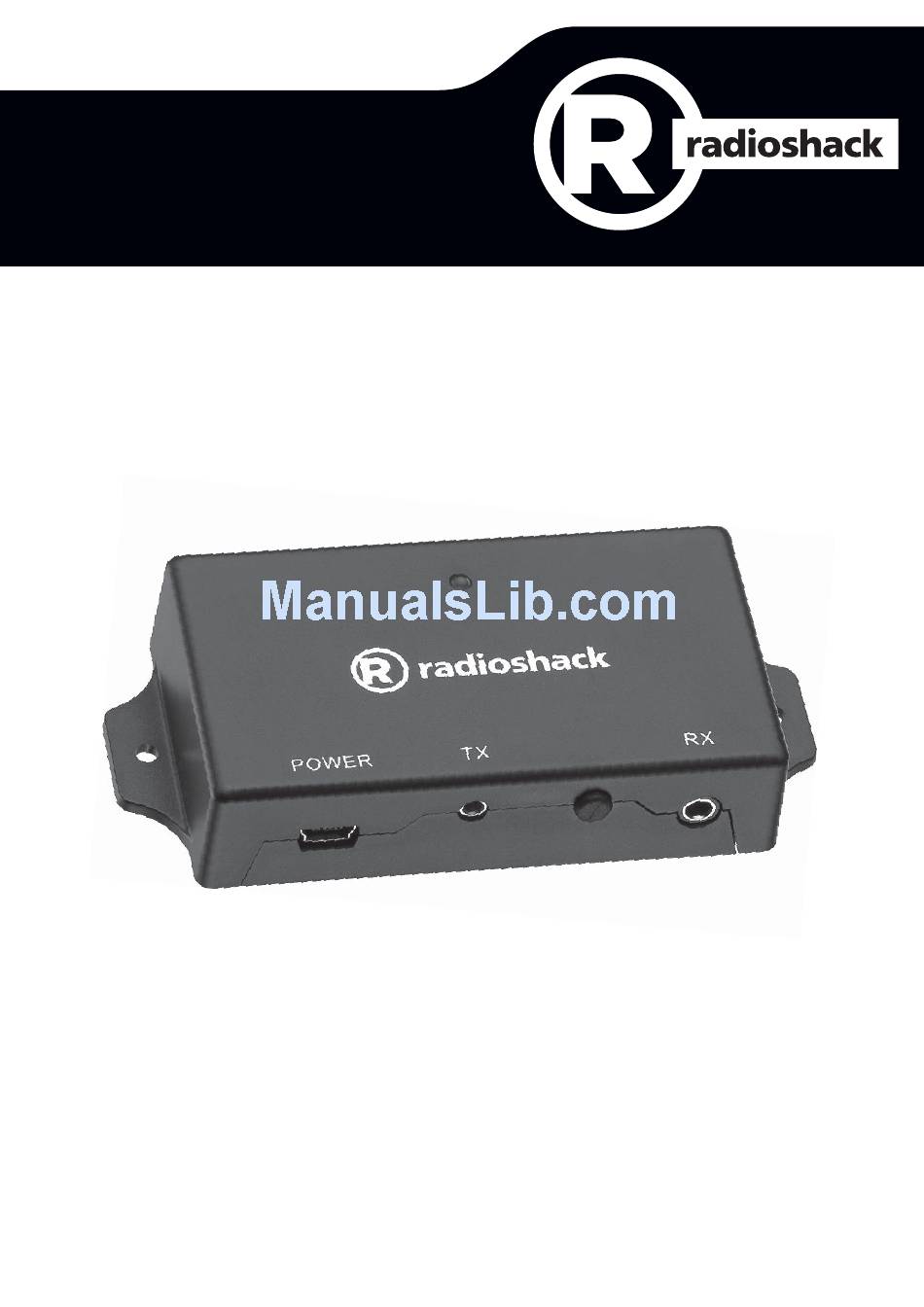

- Page 1 1500458 User’s Guide Wired IR Repeater We hope you enjoy your Wired IR Repeater from RadioShack. Please read this user’s guide before setting up and using your new repeater.
-
Page 2: Package Contents
Package Contents • IR Repeater Box • Transmitter • Receiver • Extension Cable • AC Adapter • Mounting Screws (2) • User’s Guide Features • Extend the range of an infrared (IR) remote control so you can control up to six A/V devices up to 23 feet (7m) •... -
Page 3: Set Up The Receiver
Set Up the Receiver Set up the receiver according to the depth of your TV. 1. Route the receiver cable, making sure the infrared receiver is fi xed and stable. For slim TVs, lay the infrared receiver fl at. For deeper TVs, position the infrared receiver upright as illustrated. - Page 4 Set Up the IR Repeater System 1. Use the two supplied mounting screws to mount the IR repeater box on the wall. 2. Connect the AC adapter to the repeater box’s POWER port and then to an AC outlet. 3. Plug the receiver into the repeater box’s RX jack. 4.
- Page 5 Repeater Box Flashes operate remote Screw Hole 6.6 ft (2m Extension Cable (optional) 15° 15° Transmitter Maximum Distance 1.6 feet (0.5m) Emitter...
-
Page 6: Care And Maintenance
red when ed by your control. 15° 15° Maximum Distance Receiver 23 feet (7m) Care and Maintenance • Keep the IR repeater system dry. Wipe it with a soft cloth immediately if it gets wet. • Keep the IR repeater system away from dust and dirt, and clean it with a damp cloth occasionally. -
Page 7: Fcc Information
FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 8 improper installation or maintenance, alteration, accident, Acts of God (such as fl oods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a RadioShack Authorized Service Facility; (c) consumables such as fuses or batteries;...
- Page 9 Complies with the European Union’s “Restriction of Hazardous Substances Directive,” which protects the environment by restricting specifi c hazardous materials and products. ©2013. RadioShack Corporation. All rights reserved. Printed 10B13 RadioShack is a registered trademark used by in China 1500458 RadioShack Corporation.
