Apantac Mi-16 Series User Manual

Hide thumbs Also See for Mi-16 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Mi-16 Series
User
Manual
APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224
v2.3
INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mi-16 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Apantac Mi-16 Series

Summary of Contents for Apantac Mi-16 Series

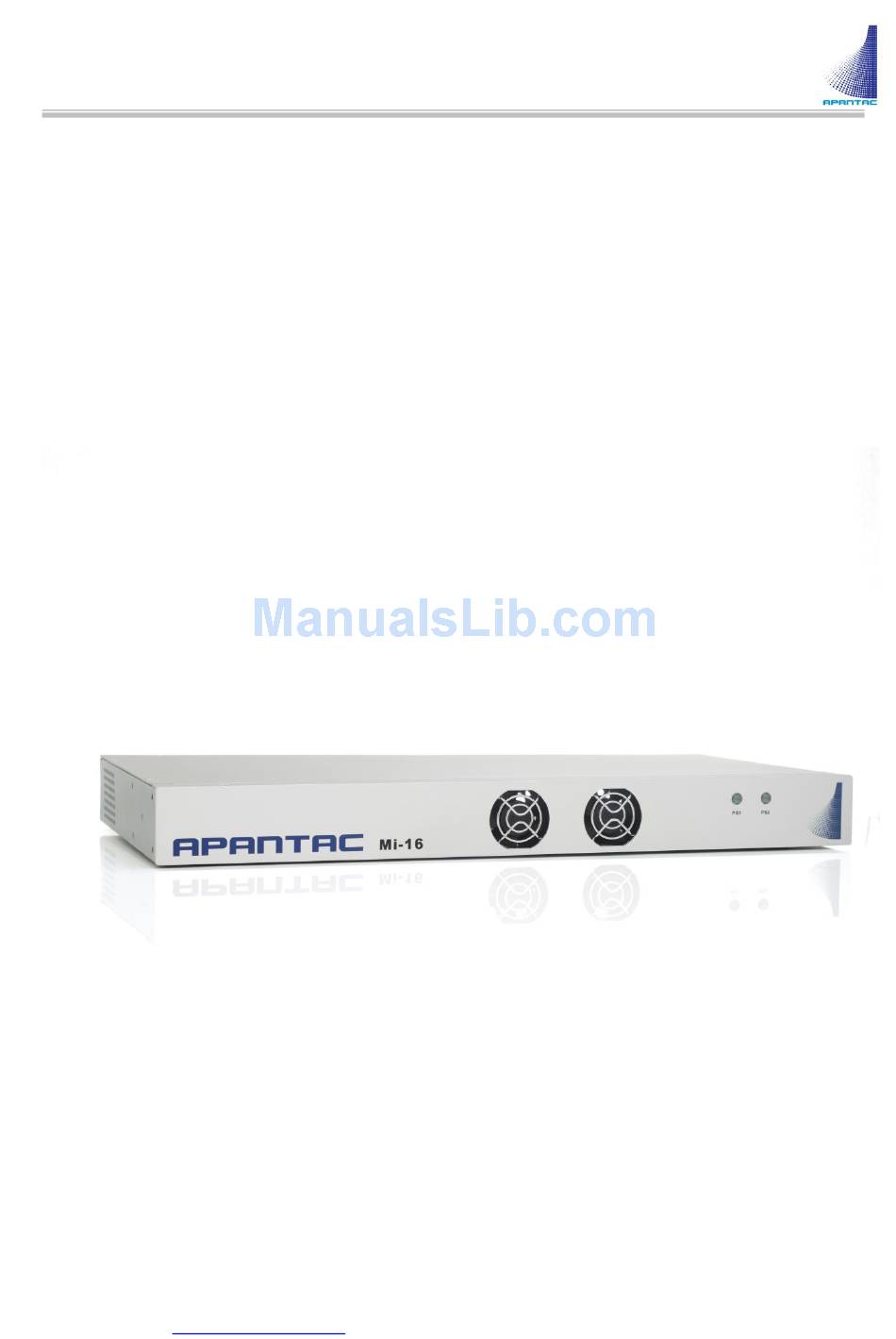

  • Page 1 Mi-16 Series User Manual APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 v2.3 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 2: Table Of Contents

    Mi-16+ presets ......................51 Mi-16# presets ......................53 Cable Pinouts ....................... 56 COPYRIGHT and TRADEMARK ................57 WARRANTY STATEMENT .................. 57 ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 3: What's In The Box

    North American Power Cord. Note: Countries outside of North America the power cord excluded Optional Redundant Power Supply. ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 4: Key Features

    2 simultaneous and indentical HDMI and SDI outputs – Each source can only be assigned to a window once – ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 5: Specifications

    Once a source is copied to a different size, the total number of sources will be – decrease by one. 2.1 Specifications ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 6: Rear Views

    Mi-16 series 2.2 Rear Views Figure 2-1 Mi-16x rear view ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 7: Hardware Boot Up

    5 seconds (see Fig. 1), then followed by the Apantac logo, then the very last screen layout prior to powering off the unit.
  • Page 8 IP address of the unit will be displayed for 5 seconds on boot up. The default IP address is 192.168.0.100 ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 9 Local Area Network -> Mi-16x IP Address Manager  Click the ADD Mi-16x button Figure 5: Add Mi-16 module ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 10 Mi-16 series There are 3 different models in the Mi-16 series, Mi-16, Mi-16+ and Mi-16# Figure 6: Select your Mi-16 model and then enter the IP address Note: Even if you select incorrect Mi-16 model, the jDirector will automatically detect the proper version of hardware you have.
  • Page 11 “OK” to continue. Figure 8: Connecting to a Mi-16 that displays a previous connection ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 12: Changing The Mi-16 Ip Address

    Then confirm the change by clicking the OK button. Reboot the Mi-16 unit to make the change active.  Mi-16 change IP Address. Figure 9: ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 13: Configuring Of The Mi-16 Series

    Select the Output 1 tab at the top or double click within the white outline of the Output and this will take you to jDirector’s editing mode. ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 14: Mi-16

    Select the Output 1 or Output 2 tab at the top or double click within the white outline of Overview Output desired output in the and this will take you to jDirector’s editing mode. ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 15: Mi-16

    Select the Output 1 or Output 2 tab at the top or double click within the white outline of Overview Output desired output in the and this will take you to jDirector’s editing mode. ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 16: Common Features And Configurations

    Note: Mi-16 will only have Output 1 whereas Mi-16+ and Mi16# will have both Output 1 and Output 2. ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 17: System Level Settings

    Mi-16 series System level settings 5.2.1 Set output timing The Mi-16 series comes with the default output setting of 1080P 60Hz, it can easily be changed to 1080P 50Hz by doing the following, On the Top Level Menu, click on System ->...
  • Page 18 <OK>, then it will automatically jump Figure 16: Enter source names to the next name until you hit <Cancel> ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 19: Setup Process

    Quick Settings There are several quick settings that will speed up the setup process Figure 18: Enter source names ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 20 Tally GPI bit <SET> – will clear all GPI tally settings Figure 22: Enter source names Figure 23: Enter source names ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 21 TSL address back to default 0 ~ 15 Figure 31: Enter source names Figure 32: Enter source names ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 22 Set TSL Tally attributes. Set Tally mode to TSL then double click on Tally -> Configure Figure 37: Enter source names ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 23: Set Tally Colors

    TSL. Temperature alarm setting as well as current temperature will also be shown in this dialog. ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 24: Audio Reference Settings

    5.2.5 Audio reference settings Reference audio setting can be set 5.2.6 Load presets The Mi-16 series can have up to 30 presets. Each Mi-16x comes with 10 preloaded Appendix A presets. Please see for all the preset layouts. Load Presets by File -> Glogal -> LOAD Figure 38: File ->...

  • Page 25: Editing

    Click on the window you want to delete to highlight it then press the <delete> key on the keyboard. ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 26 Right click on the window you want to delete to highlight it then select <Close> to close the window Figure 41: The end result ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 27 Hold down the CTRL key and click on multiple windows then right click on a highlighted window then select <Close> Figure 44: The end result ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 28: Mi-16 Series Window Styles

    Mi-16 series 6.2 Mi-16 series window styles o The Mi-16 series comes with 5 basic window styles. These styles are located in the “Window Bin” area of the jDirector editor. o Each window style consists of 4 window templates o Each window has 5 predefined sizes – 1/4, 1/9, 1/16, 1/25 and 1/36 Figure 45: Click on the window style you want to load.
  • Page 29 Style 5 templates – windows with labels and tally LEDs over the video Figure 50: Click on the window preset you want to load. ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 30: How To Insert A Window

    Figure 52: Right click on a window ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 31 Select <Set Border> Figure 57: Set Window border Figure 58: Alarm tags turned Figure 59: Alarm tags turned on ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 32 Figure 67: Select Input source Figure 68: The available sources available. If it is black the source has been used. ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 33 You can assign up to 16 channels of audio to a single window Figure 70: Alarm tags turn Figure 71: Alarm tags turn ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 34 Safe Area 1 then use the Percentage slider to move the safe area to 5% on each side. Figure 74: Set percentage ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 35 Unlocking objects The objects in the windows cannot be moved until it is unlocked Figure 77: Lock Object Items toggle ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 36 Copy/Paste – Windows can be copied and pasted Figure 79: Copy/Paste of Windows Setup standalone label Figure 80: Insert Label ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 37: Time Zone

    Remove “Clock” from the Name field Time Zone Select the time zone from the drop down menu. Figure 83: The digital clock ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 38 Label Background Color Figure 88: Set font color Figure 89: Set background color Set background color to black then click <OK> ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 39 Space and then select Properties from the contextual menu to open this configuration dialog. Figure 92: Set Clock Properties ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 40 Figure 95: Sync the Clock with the connected PC Insert an Analog Clock by dragging the <Analog Clock> to the work space Figure 96: Insert Analog Clock ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 41 Figure 100: Sync the Clock with the connected PC Internal it can be sync’d to the PC’s clock by clicking on <Sync. PC GMT Time> ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 42 Figure 103: Skin Type 2 To adjust the GMT time right click on the Clock and select <Control> Figure 104: Adjust GMT Time ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 43 <Monitor>. Audio alarm range and audio meter width can also be set here. Figure 106: Audio Meter configuration ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 44 Figure 108: Adding Temperature Alarm Set Temperature alarm property by right clicking on the temperature alarm Figure 109: Temperature Alarm configuration ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 45: Offline Mode

    Once you enter the offline mode, you can start editing as if you were online. ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 46: Appendix

    The Mi-16 can store up to 30 presets. It comes with 10 pre configured layouts as below, Figure 110: Preset1 – 16 windows (Preset1.OPx) Figure 111: Preset2 – 16 windows with 2 Tally LEDs (Preset2.OPx) ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 47 Preset3 – 16 windows with 2 audio meters each (Preset3.OPx) Figure 113: Preset4 – 16 windows with 2 Tally LEDs and 2 Audio Meters (Preset4.OPx) ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 48 Mi-16 series Figure 114: Preset5 – 14 windows (Preset5.OPx) Figure 115: Preset6 – 14 windows with 2 audio meters (Preset6.OPx) ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 49 Figure 116: Preset7 – 16 windows with labels inside the windows (Preset7.OPx) Figure 117: Preset8 – 11 windows (Preset8.OPx) ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 50 Mi-16 series Figure 118: Preset9 – 9 windows with 2 audio meters and labels inside (Preset9.OPx) ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 51: Mi-16+ Presets

    Preset2 – 8 windows on each output, labels inside the windows (Preset2.OPx) Figure 121: Preset3 – 7 windows on each ouputs (Preset3.OPx) ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 52 Figure 124: Preset6 – 16 windows (Preset6.OPx) Figure 125: Preset7 – 16 windows with audio meters and tally LEDs (Preset7.OPx) ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 53: Mi-16# Presets

    Preset9 – 9 windows with 2 audio meters and labels inside (Preset9.OPx) Figure 128: Preset10 – 16 windows with 2 audio meters (Preset10.OPx) Mi-16# presets Figure 129: Preset1 – (Preset01.OPX) ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 54 Figure 131: Preset3 – (Preset3.OPX) Figure 132: Preset4 – (Preset4.OPX) Figure 133: Preset5 – (Preset5.OPX) Figure 134: Preset6 – (Preset6.OPX) ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
  • Page 55 Figure 135: Preset7 – (Preset7.OPX) Figure 136: Preset8 – (Preset8.OPX) Figure 137: Preset9 – (Preset9.OPX) Figure 138: Preset10 – (Preset10.OPX) ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 56: Cable Pinouts

    Mi-16 series Cable Pinouts ________________________________________________________________________________ APANTAC LLC, 7470 SW BRIDGEPORT ROAD, PORTLAND, OR 97224 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...

  • Page 57: Copyright And Trademark

    If Apantac replaces the defective Product with a replacement Product as provided under the terms of this Warranty, in no event will the term of the warranty on the replacement Product exceed the number of months remaining on the warranty covering the defective Product.
