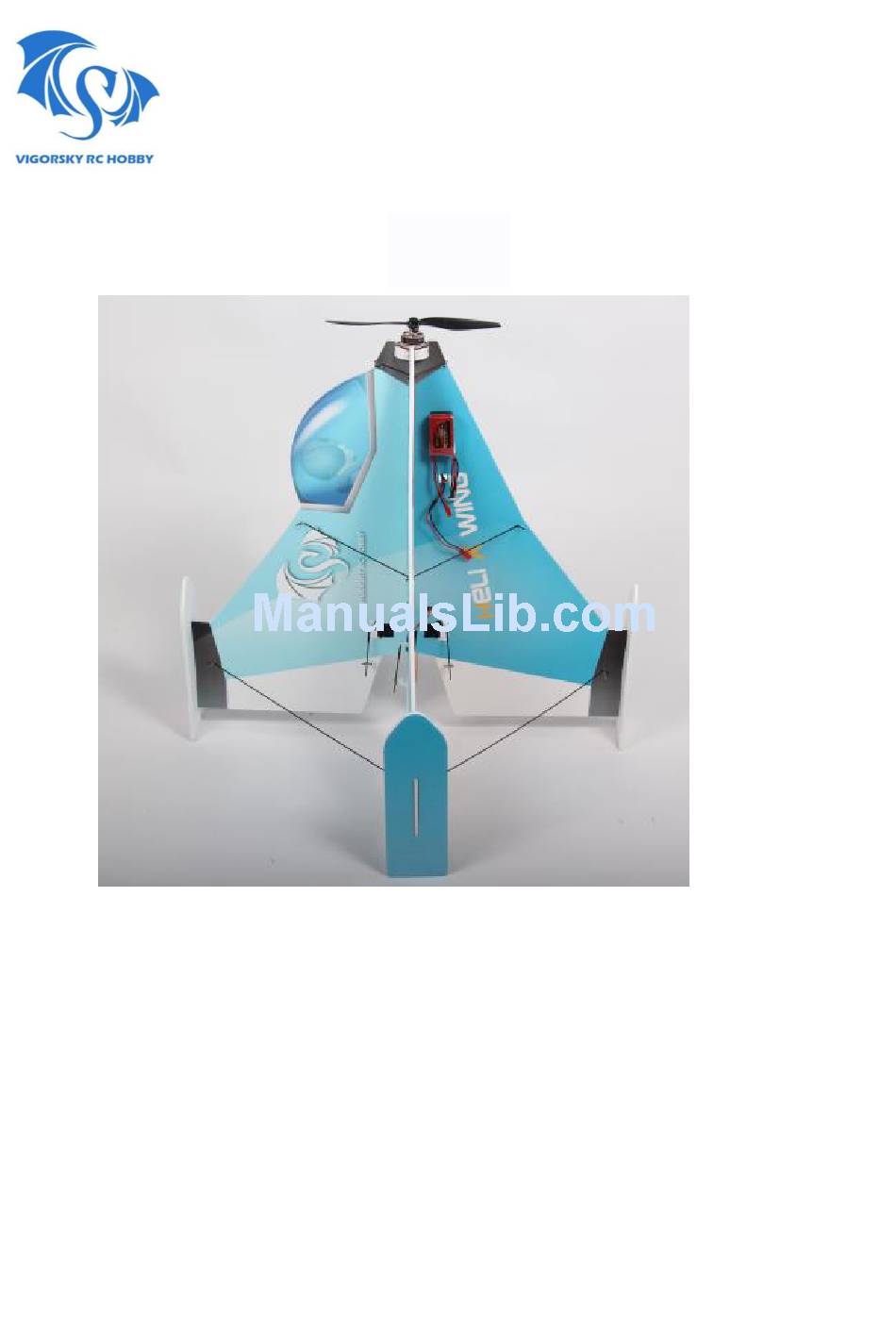

- Page 1 Instruction Manual 1 / 14...
- Page 2 WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury. This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and failure to do so could result in injury or damage to the product or other property.
- Page 3 VFO (Vertical Flying Object) , which has a unique appearance and performance, can take off and hover just like helicopters. With the symmetrical wings, it can fly stably at very low speed.
- Page 4 2. All the control surfaces are pre- installed, which makes it easy to assemble. Install the upper horizontal fuselage. Apply some glue to the contact area. Make sure everything is square. The “Tack Up” method will be used to join the wings to the fuselage. Apply a medium bead of glue to the wing.
- Page 5 3. Install the lower horizontal fuselage. Install the lower horizontal fuselage as shown in the picture. Make sure everything is square. 5 / 14...
- Page 6 4. Install the four SFGs Apply some glue to the slots, and then stick them to the fuselage as pictured above. 6 / 14...
- Page 7 5. Install the motor mount supports. Glue the two motor mount supports, and adjust it if necessary to make mounting holes to be aligned. When dry, glue it to the nose. Install the motor mount. Apply some glue to the corresponding surface, set aside for 3 minutes before bonding, and then stick it to the nose of the fuselage as pictured above.
- Page 8 6. Make push rods. Locate the following carbon rods, which will be used to strengthen the fuselage. Put glue on pushrod by dipping it into the glue nozzle. Insert the carbon rods into the pre-cut holes. Look carefully for the holes. Finish supporting the aircraft as shown in the picture.
- Page 9 7.Install the servo arms. Make sure your servos are electronically centered, and attach the horns as need for each servo. 8. Locate the following servo horns and push rod linkage stoppers. 9 / 14...
- Page 10 9. Locate all the following items. Cut the heat-shrink tubing into four pieces as shown. 10 / 14...
- Page 11 Make the push rods by connecting 1.5mm diameter carbon rod with Z-shaped steel wire instead of push rod linkage stopper. Fix the Z-shaped wire and the carbon rod with heat-shrink tubing. Make all of the control rods needed in the same way 10 Apply some glue to the profiles of the servos..
- Page 12 11. Solder the ESC and the motor. Connect the ESC with the motor. It is better to solder the ESC and the motor, and cover the joint with heat-shrink tubing, which can reduce the weight of VFO. 11.1 12 / 14...
- Page 13 Apply glue on the back of motor mount. When nearly dry, glue the assembly to the nose of the plane. Secure the motor to the nose of the aircraft. Locate the wire of the servos on the side that you will install the ESC on. 13 / 14...
- Page 14 NOTE: The assembly of VFO is easy. But before you head out to the flying site, you need to set the MIX. Ask the dealer for the video. This is all about the assembly of VFO designed by VIGORSHY. Enjoy your flying! The manual is written by Zhang Lianpo and translated by Jay Chen.
