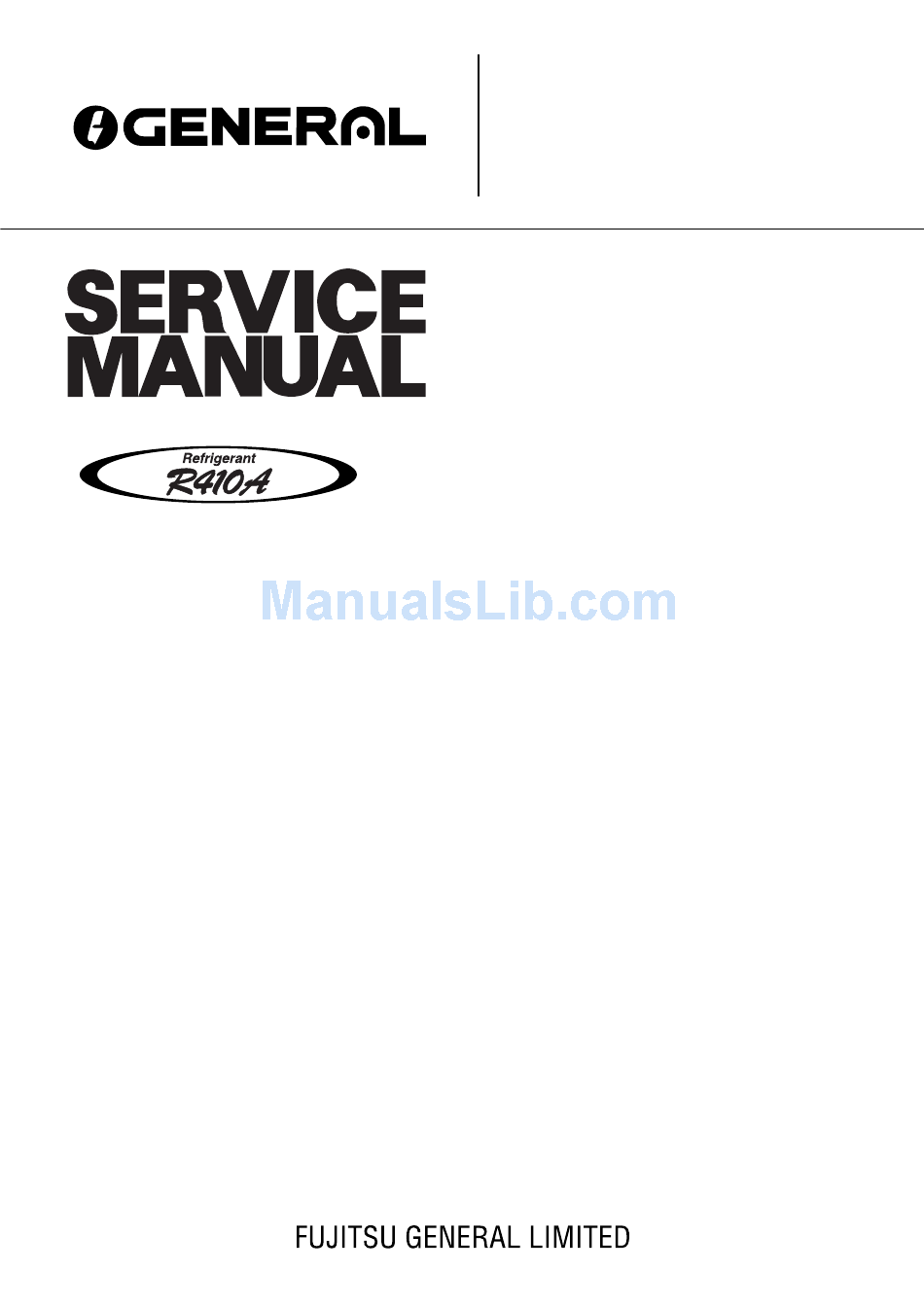

SPLIT TYPE
ROOM AIR CONDITIONER
WALL MOUNTED
Models
Indoor unit
ASH9LSBCW
ASH12LSBCW AOH12LFBC
CONTENTS
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
REFRIGERANT SYSTEM DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . 3
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ERROR CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DISASSEMBLY ILLUSTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
STANDARD ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
type
Outdoor unit
AOH9LFBC
5
6
7
14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASH9LSBCW and is the answer not in the manual?

Questions and answers

Related Manuals for Fujitsu General ASH9LSBCW

Summary of Contents for Fujitsu General ASH9LSBCW

  • Page 1: Table Of Contents

    Models Indoor unit Outdoor unit ASH9LSBCW AOH9LFBC ASH12LSBCW AOH12LFBC CONTENTS SPECIFICATIONS ........1 DIMENSIONS .

  • Page 2: Specifications

    SPECIFICATIONS TYPE COOL & HEAT INVERTER INDOOR UNIT ASH9LSBCW ASH12LSBCW OUTDOOR UNIT AOH9LFBC AOH12LFBC COOLING CAPACITY (kW) 2.60 3.50 HEATING CAPACITY (kW) 3.60 4.80 ELECTRICAL DATA POWER SOURCE FREQUENCY (Hz) COOLING RUNNING CURRENT HEATING COOLING 0.62 0.92 INPUT WATTS (kW) HEATING 0.82...

  • Page 3: Dimensions

    DIMENSIONS (unit : mm) Models : ASH9LSBCW / AOH9LFBC ASH12LSBCW / AOH12LFBC ( 353 ) 2005.02.18...

  • Page 4: Refrigerant System Diagram

    REFRIGERANT SYSTEM DIAGRAM Models : ASH9LSBCW / AOH9LFBC ASH12LSBCW / AOH12LFBC Heat exchanger 3-Way ( INDOOR ) valve Muffler 2-Way valve 4-Way valve Strainer Expansion valve Heat exchanger Strainer ( OUTDOOR ) AOH9LFBC (2Pass) AOH12LFBC (4Pass) Cooling Heating 2005.02.01...

  • Page 5: Circuit Diagram

    CIRCUIT DIAGRAM Models : ASH9LSBCW / AOH9LFBC ASH12LSBCW / AOH12LFBC INDOOR UNIT Fan Motor Terminal Display Board Power Controller PCB Relay Power Thermistor Thermistor Stepping (room temp.) (pipe temp.) Motor OUTDOOR UNIT PCB (MAIN) Reactor Reactor Compressor Thermistor (Discharge Pipe)

  • Page 6: Indoor Printed Circuit Board Circuit Diagram

    INDOOR PCB CIRCUIT DIAGRAM Models : ASH9LSBCW ASH12LSBCW TERMINAL BOARD POWER SOURCE BLUE 230V CONTROLLER PCB ASSY 50Hz ASH9LSBCW : K02DR-0410HSE-C1 GREEN / YELLOW ASH12LSBCW : K02DR-0411HSE-C1 I C 1 THERMAL FUSE uPD780024ASGB-X52-8ET-A BLACK ROOM TEMPERATURE THERMISTOR CN4 2P-SAN R53,R54...

  • Page 7: Outdoor Printed Circuit Board Circuit Diagram

    O UT DO O R P C B C IR C U IT D I A G R A M Models : AOH9LFBC CONTROLLER PCB ASSY CONTROLLER PCB ASSY AOH12LFBC AOH9LFBC : K04DT-0400HUE-C1 AOH9LFBC : K04DT-0400HUE-C1 AOH12LFBC : K04DT-0401HUE-C1 AOH12LFBC : K04DT-0401HUE-C1 POWER SOURCE EMI FILTER COMPRESSOR...

  • Page 8: Error Contents

    ERROR CONTENTS Self-diagnosis function table (Flashing LED Display) Applicable model : ASH9LSBCW, ASH12LSBCW * Detailed Trouble Display (secondary level) can be indicated by pressing Test Operation button. Trouble Display (primary) Detailed Trouble Display (by Test Button) Detailed Error Item Error...
  • Page 9 Trouble Display (primary) Detailed Trouble Display (by Test Button) Detailed Error Item Error Operation Timer Error Operation Timer Outdoor unit 0.5sec 0.1sec Current trip 0.1sec 0.5sec Current trip error is 2nd time within start up control error 5 times blinking blinking 2 times >>Permanent stop...

  • Page 10: Disassembly Illustration

    DISASSEMBLY ILLUSTRATION Models : ASH9LSBCW ASH12LSBCW 2005.01.31...
  • Page 11 Models : ASH9LSBCW ASH12LSBCW 2005.01.31...
  • Page 12 Models : AOH9LFBC AOH12LFBC 2005.01.31...

  • Page 13: Parts List

    PARTS LIST INDOOR UNIT Part No. Ref. Ord. Description Q'ty ASH9LSBCW ASH12LSBCW Air Filter 9309997011 9309997011 Filter (Electric) 9312153015 9312153015 Filter (ION) 9311925033 9311925033 Holder (Filter) 9306602017 9306602017 Clamper (Grille) 9306755010 9306755010 Front Panel Total Assy 9313130107 9313130107 Intake Grille Assy...
  • Page 14 OUTDOOR UNIT Part No. Ref. Ord. Description Q'ty AOH9LFBC AOH12LFBC Fuse Holder 0501454012 0501454012 Fuse 0600382018 0600382018 Thermister Holder Pipe 313714262805 313714262805 Thermistor Spring-A 313728262708 313728262708 Thermistor Spring 9300089012 9300089012 Terminal 9306489038 9306489038 Cord Clamp 9307271014 9307271014 Cover (Case) 9309913011 9309913011 Bracket Valve 9310229026...

  • Page 15: Standard Accessories

    STANDARD ACCESSORIES Part No. Name and Shape ASH9LSBCW, ASH12LSBCW Wall hook bracket 9312752010 Remote control unit 9308846099 Remote control unit holder 9305642014 Battery (penlight) 0600185534 Cloth tape 9310519004 Tapping screw (big) 4 x 25) 0700076046 Tapping screw (small) 3 x 12)
  • Page 16 0501G2743...
