KT-6450D/D6

DECT / DECT6.0 Big Button Emergency Phone

+ Portable Talking Pendant

Table of Contents

Need help?

Do you have a question about the KT-6450D and is the answer not in the manual?

Questions and answers

Summary of Contents for Kingtel KT-6450D

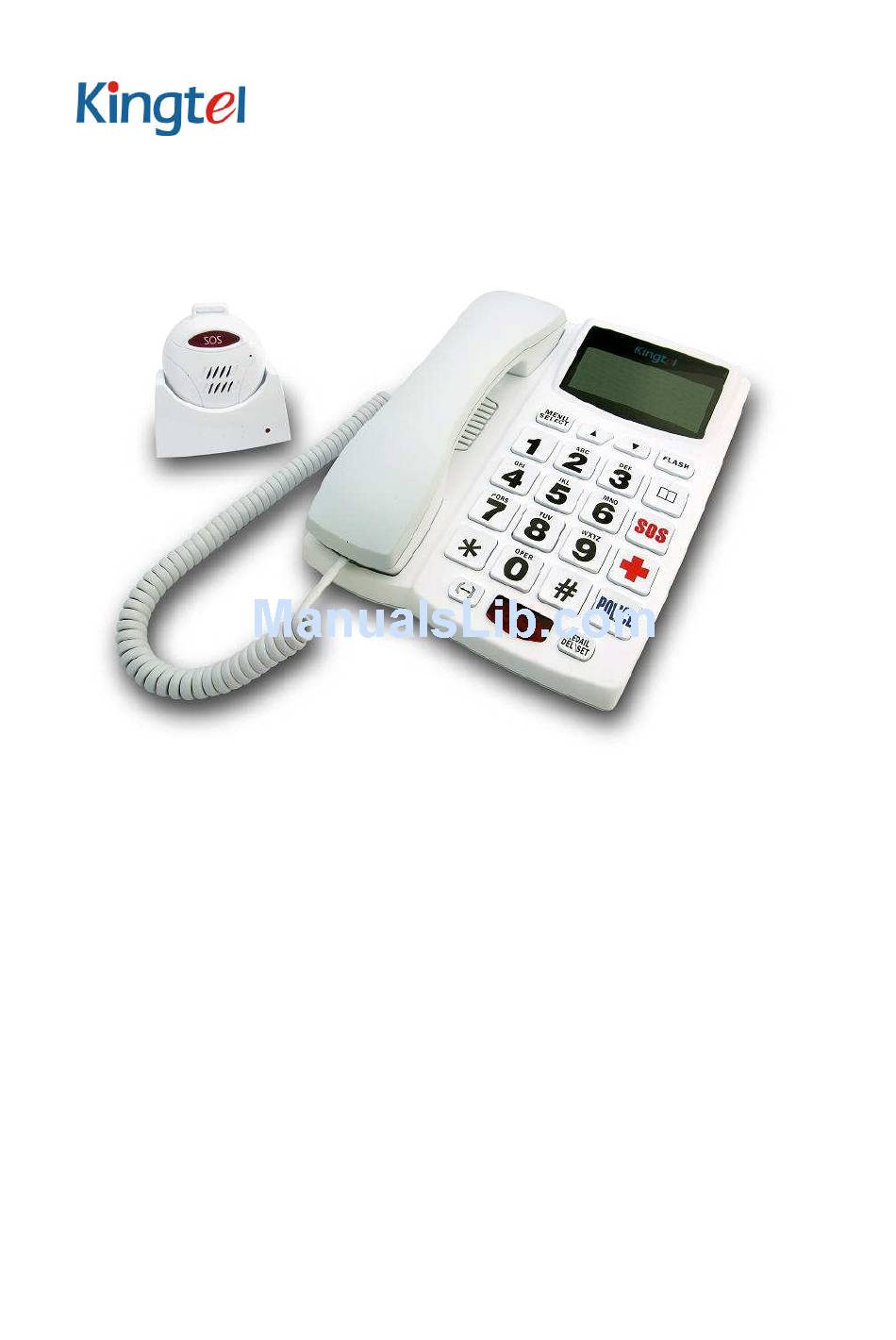

Page 1 KT-6450D/D6 DECT / DECT6.0 Big Button Emergency Phone + Portable Talking Pendant...
Page 2 KINGTEL Corp. and its affiliates or licensees assume no responsibility for any damage or loss resulting from the use of this guide. KINGTEL Corp. and its affiliates or licensees assume no responsibility for any loss or claims by third parties that may arise through the use of this software.
Page 3: Fcc Information
FCC INFORMATION Part 68 is a Federal regulation which requires equipment to be tested and registered with the FCC prior to its connection to the network. This equipment complies with Part 68 of FCC rules. On the bottom of the telephone is a label that contains, among other information, the FCC Registration Number and the Ringer Equivalence Number (REN) for this equipment.
Page 4 The installation of the base unit should allow at least 20 centimeter between the base and persons to be in compliance with FCC RF exposure guidelines. For body worn operation, the portable part (handset) has been tested and meets FCC RF exposure guidelines. This device must not be co-located or operating in conjunction with any other antenna or transmitter.
Page 6 Important Safety Instructions Always follow basic safety precautions when using your telephone to reduce the risk of fire, electrical shock and injury. 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Page 7 extensive work by a qualified technician to restore the product to normal operation. e. If the product has been dropped or cabinet has be damaged. f. If the product exhibits a distinct change in performance. 13. Avoid using a telephone during an electrical storm. There may be a risk of electrical shock from lightning.
Page 8: Product Features
DESCRIPTION KT-6450D is specifically designed for minimizing the negative impact of people who stay alone. The product provides exceptional security mechanism in emergent cases that pre-programmed telephone numbers are dialed automatically in sequence through one touch of SOS button on portable pendant, and pre-recorded alert message is played once the call is answered, thus to prevent undesired emergencies from happening in advance.
Page 9: Product Specification
PRODUCT SPECIFICATION Telephone ‧ 5 adjustable Handset volume level ‧ 5 adjustable Speaker volume level ‧ 5 adjustable Ringer volume level & off ‧ 10 dialed numbers review & redial ‧ 80 phonebook entries, 12 characters for each name, 24 digits for each number ‧...
Page 10 KT-6450D Telephone Part Identification...
Page 11: Menu / Select
LCD Display Display phone number, date, time and other information MENU / SELECT Press to access main menu (on-hook / off-hook mode) Press to enter sub-menus (on setting mode) Press to confirm setting (on setting mode) ▼ Press to show received calls (on-hook mode) Press to turn volume down (off-hook mode) Press to turn volume down (speakerphone mode) Navigation key...
Page 12 Handset cord jack Power line jack Telephone line jack Battery compartment SOS key In charging light Power line jack Battery connector Battery cover of pendant...
Page 13 Menu setting During standby mode, press MENU/SELECT key to enter the menu setting, and there are totally six (6) sub-menus as below: 1) CALL LOG 2) PHONE BOOK 3) BS SETTINGS 4) PENDT SETUP 5) SOS SETTINGS 6) AUTO ANSWER 7) REGISTRATION Press ▲...
Page 14: New Entry
PHONEBOOK The memory capacity of phone book for contact information is 80 that contain name and phone number. Each name has maximum 12 characters and each number has maximum 24 digits. LIST This function allows the user to review the phonebook list and make a call directly from the phonebook list.
Page 15: Edit Record
EDIT RECORD This function allows the user to modify a stored phonebook record. Press ▲ or ▼ key and select “EDIT RECORD” item. * Press MENU/SELECT key to enter, the first record in the phone book will be displayed. ** Press ▲ or ▼ to select the desired stored record which you want to edit. *** Press MENU/SELECT key to enter for editing.
Page 16: Ring Setup
BS SETTINGS Combination is needed to enter BS setting; the default combination is “0000” The user is able to change the base setting. Pressing MENU/SELECT key and using ▲ or ▼ key to select “BS SETTINGS” item. Press MENU/SELECT key to enter. RING SETUP The user is able to change the base ringer for internal calls and External calls.
Page 17: Flash Time
FLASH TIME The user can change the flash time (100ms, 300ms, 600ms and 1000ms). Press MENU/SELECT key, then using ▲ or ▼ key to select “FLASH TIME” item. Press MENU/SELECT key to enter. Press ▲ or ▼ key to select the 100ms, 300ms, 600ms and 1000ms. Press MENU/SELECT key to confirm your selection before exit, a sound will be heard once the setting succeeds.
Page 18: Date And Time
DATE & TIME The user is able to set the date and time on the BASE, Press MENU/SELECT key and using ▲ or ▼ key to select “DATE & TIME”, Press MENU/SELECT key to enter. The last two digits of the Year are blinking on LCD showing as “20_ _”. Press ▲...
Page 19 BS DEFAULT This function allows the user to restore the base setting to the factory default. Press MENU/SELECT key, then using ▲ or ▼ key to select “BS DEFAULT” item. Press MENU/SELECT key to enter. The user will be prompted to press MENU/SELECT key to confirm, a sound will be heard once the setting succeeds.
Page 20: Audio Setup
INT RING The user is able to change the pendant ring tone for internal call. There are 6 ring melodies and 6 volume levels (For volume 1, 2, 3, 4, 5 & OFF). Press MENU/SELECT key, LCD shows “INT RING” item. Press MENU/SELECT key to enter.
Page 21: Auto Answer
AUTO ANSWER Combination is needed to enter BS setting; the default combination is “0000” The user is able to set 5 sets of auto answer numbers. Press MENU/SELECT key, then using ▲ or ▼ key to select “NUMBER” item. Press MENU/SELECT key to enter. Enter the number to be stored by using the alphanumeric keys Press MENU/SELECT key to confirm, a sound will be heard once the setting succeeds.
Page 22: Operation
OPERATION Caller ID and call waiting (type II) DTMF, FSK type I and FSK type II are supported. CID only works when the service is provided by local telephone company and the user subscribes to it. During an incoming call. Review of the “CID BOOK”...
Page 23 Speakerphone operation and volume control Press key once to obtain a dial tone, dial the number, when the call is answered, you can begin your conversation without picking up the handset, you can also answer an incoming call by pressing the key.
Page 24 View and dial out phone numbers from phonebook There are 80 phonebook memories; each memory can store 12 characters and 24 digits. Enter the Menu: Press MENU/SELECT key and use ▲ or ▼ and select “PHONEBOOK’’ Then press MENU/SELECT key and “LIST’’ will display. Press MENU/SELECT to confirm the entry and the number will be shown on LCD.
Page 25 Call transfer Transfer the call from the base to the pendant(s). During a phone call on base unit Press INT/TRF key and the registration number of all registered pendants will show on the LCD display, select one of the pendants that the call is to be transferred by pressing corresponding number key.
Page 26 Total power failure Kindly note that the KT-6450D is a DECT system that needs power to work (either batteries or power supply). Please see below important information during power failure; when power failure, the base unit is STILL ACTIVE in analog line, when picking up the handset: 1.
Page 27 MAINTENANCE INFORMATION Treat your telephone equipment with care for trouble-free performance. Avoid dropping the handset. Carefully place the handset in the base after use. Avoid putting near heating appliances and devices that generate electrical noise (for example, motors and florescent lamps).
Page 28: Warranty
TELEPHONE REPAIR DO NOT ATTEMPT TO REPAIR THIS PRODUCT YOURSELF. Telephones manufactured by KINGTEL must be returned to us for repair. You can return your telephone to CORTELCO for repair or replacement in accordance with our LIMITED WARRANTY. KINGTEL warrants THIS PRODUCT against defects in material and workmanship in accordance with our LIMITED WARRANTY.
