WARNING:
To reduce the risk of injury to persons - Use this operator only with Residential Sectional Garage doors.

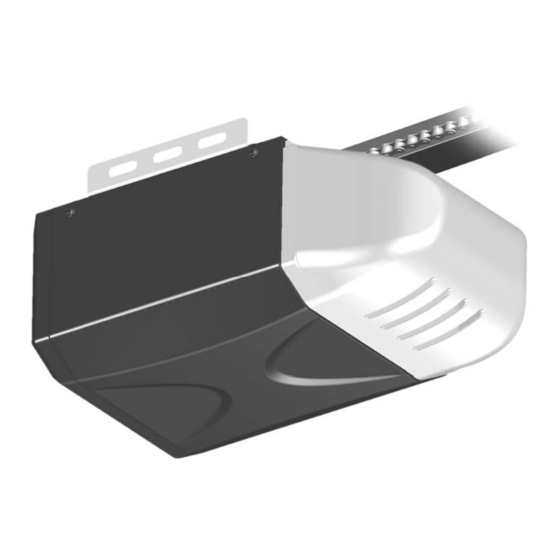

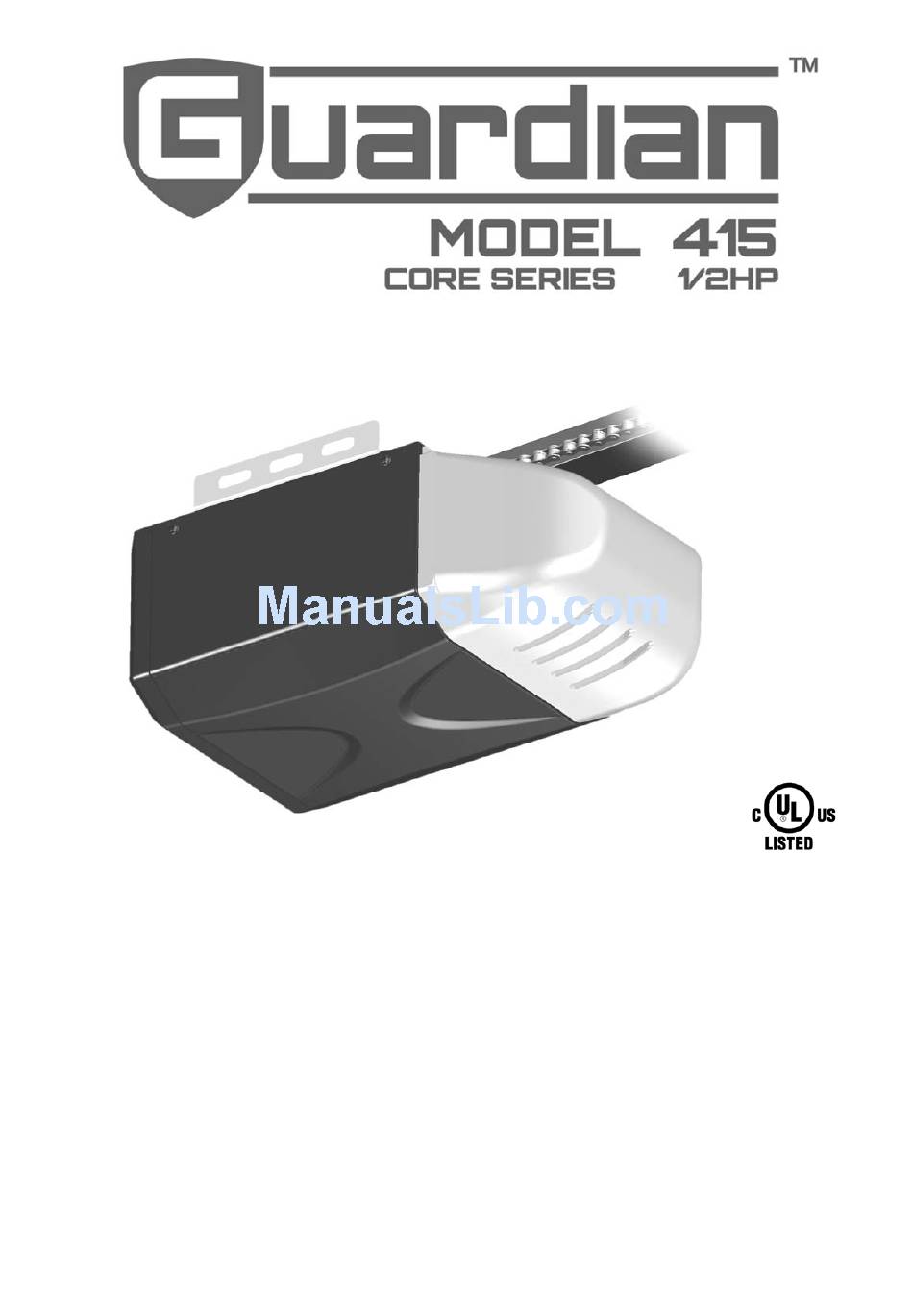

Owner's Manual
●
Please read and understand this manual and safety instructions carefully before installation.
●
The Opener WILL NOT CLOSE until the Photo Eye Safety System is properly installed and aligned.
●
REGULARLY CHECK and TEST the Opener according to the safety label to ENSURE SAFE OPERATION.
●
Retain this manual for future reference.
Serial # __ __ __ __ __ __ __
Located on the label on top of your opener.
The illustrations used in this instruction manual may differ from the actual product you have purchased.
GDO Manual Revised: 09-17
Date Installed __ __ /__ __ /__ __ __ __
GDOMU10A-8
Advertisement
Table of Contents
Related Manuals for Guardian 415
Summary of Contents for Guardian 415
- Page 1 WARNING: To reduce the risk of injury to persons - Use this operator only with Residential Sectional Garage doors. Owner’s Manual ● Please read and understand this manual and safety instructions carefully before installation. ● The Opener WILL NOT CLOSE until the Photo Eye Safety System is properly installed and aligned. ●...
-
Page 3: Table Of Contents
Table of Contents Introduction Symbols and Icons Inventory Read and Follow These Important Safety Instructions Preparation / Door Balance Test Tools Required Assembly T-rail Assembly and Tensioning Mounting Header Bracket Installation Attaching the Opener Assembly to Header Bracket Mounting Door Bracket Mounting Opener to Ceiling Attaching Door Arms Installing Light and Emergency Release Handle... -
Page 4: Inventory
Inventory Opener Unit + Light Lens Door Bracket Remote Control Photo Eye Safety System Light bulb are not included ) Door Control Door Control included in some models Screw #6 x 1” Screw #6 x 1” Drywall Anchor Drywall Anchor Door Control Deluxe Door Push Button... -
Page 5: Read And Follow These Important Safety Instructions
Read and Follow These Important Safety Instructions IMPORTANT INSTALLATION INSTRUCTIONS WARNING — To reduce the risk of severe injury or death: READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS. Install only on a properly balanced garage door. An improperly balanced door has the potential to inflict severe injury. -
Page 6: Preparation / Door Balance Test
Preparation WARNING To prevent SERIOUS INJURY or DEATH: - Before beginning installation of the Opener please complete the following test to ensure that your door is balanced and in good working condition. - A poorly balanced door can cause serious injury and damage to the Opener. - Always have a qualified garage door service technician make any required adjustments and/or repairs to your door before proceeding with installation. -
Page 7: T-Rail Assembly And Tensioning
T-rail Assembly and Tensioning CAUTION - DO NOT connect power until instructed. - To prevent INJURY, keep hands and fingers away from joints and possible sharp edges. - Wear gloves when installing chain and cable. Screw 1/4” Flange Nut x 4 Spring Washer Washer 10 - 24 x 1/2”... -
Page 8: Mounting Header Bracket
Mounting Header Bracket WARNING To prevent SERIOUS INJURY: - DO NOT connect power until instructed. - The Header Bracket MUST be SECURELY fastened to the structural support on the mounting wall or ceiling, otherwise the door may not reverse when required. DO NOT install the Header Bracket over drywall. - Concrete anchors MUST be used when mounting the Header Bracket into masonry. -
Page 9: Attaching The Opener Assembly To Header Bracket
Attaching Rail to Header Bracket and Mounting Door Bracket WARNING To prevent SERIOUS INJURY: - DO NOT connect power until instructed. - REINFORCEMENT is recommended for fiberglass, aluminum or lightweight steel garage doors BEFORE installing the door Bracket. Contact your door manufacturer for reinforcement options. To Attach the Opener to the Header Bracket As shown in Fig.1, use the packaging carton as temporary support for the Opener. -
Page 10: Mounting Opener To Ceiling
Mounting Opener to Ceiling WARNING To prevent SERIOUS INJURY or DEATH: - DO NOT connect power until instructed. - Install the Opener at least 7 feet (2.13m) above the floor. - Fasten the Opener SECURELY to STRUCTURAL SUPPORTS of the garage to prevent falling. - If installing Brackets to masonry, concrete anchors (not provided) MUST be used. -
Page 11: Attaching Door Arms
Attaching Door Arms WARNING To prevent SERIOUS INJURY: - DO NOT connect power until instructed. - Keep hands and fingers away from the sprocket during operation. - Wear gloves when installing chain and cable. - Keep hands and fingers away from joints and possible sharp edges. NOTE: The straight door arm must be installed vertically to the door when door is at closed position. -
Page 12: Installing Light And Emergency Release Handle
Installing Light and Emergency Release Handle WARNING To prevent SERIOUS INJURY or DEATH from electrocution: - Disconnect power cord before installing/replacing light bulb. To prevent possible OVERHEATING or damage to Opener: - Use ONLY A19 (E26) incandescent bulbs (100W max.). - DO NOT use short neck or specialty light bulbs. -
Page 13: Wiring Instructions
Wiring Instructions WARNING To prevent SERIOUS INJURY or DEATH from electrocution: - Power MUST NOT be connected until instructed. - NO exposed part of the wire should be visible outside of the terminal for proper connection. In the following section, the Photo Eye Safety System and Push Button will be connected to the Opener. -
Page 14: Connecting Photo Eye Safety System
Connecting Photo Eye Safety System WARNING To prevent SERIOUS INJURY or DEATH from electrocution: - Power MUST NOT be connected BEFORE Photo Eye Safety system is connected and aligned. - The Opener will not operate until the Photo Eye Safety System is properly connected and aligned. - Install the Photo Eyes NO higher than 6”... -
Page 15: Connecting Push Button
Connecting Push Button WARNING To prevent SERIOUS INJURY or DEATH from electrocution: - Power MUST NOT be connected until instructed. To prevent SERIOUS INJURY or DEATH from using the Push Button and a closing door: - Install the Push Button within sight of the door at a minimum height of 5 feet (1.5m) above the floor. Make sure it is out of the reach of children and moving parts of door and hardware. -
Page 16: Connecting Door Control Console (*Optional)
Connecting Door Control Console (*OPTIONAL) WARNING To prevent SERIOUS INJURY or DEATH from electrocution: - Power MUST NOT be connected until instructed. To prevent SERIOUS INJURY or DEATH from using the Door Control Console and a closing door: - Install the Door Control Console within sight of the door at a minimum height of 5 feet (1.5m) above the floor. -
Page 17: Connecting Deluxe Door Control Console (*Optional)
Connecting Deluxe Door Control Console (*OPTIONAL) WARNING To prevent SERIOUS INJURY or DEATH from electrocution: - Power MUST NOT be connected until instructed. To prevent SERIOUS INJURY or DEATH from using the Deluxe Door Control Console or Push Button and a closing door: - Install the Deluxe Door Control Console or Push Button within sight of the door at a minimum height of 5 feet (1.5m) above the floor. -
Page 18: Connecting Power
Connecting Power WARNING To prevent SERIOUS INJURY or DEATH from electrocution or fire: - Power MUST be DISCONNECTED BEFORE proceeding with permanent wiring procedures. - Garage Door Opener installation and wiring MUST be in compliance with all local electrical and building codes. -
Page 19: Travel Limit Adjustment
Travel Limit Adjustment WARNING To prevent SERIOUS INJURY or DEATH from improper Force Adjustment: - Improper adjustment of travel limits will cause operation of safety reversal mechanism. - If Travel limit adjustment is made, Force Adjustment may also needed. - After ANY adjustments, the Safety Reverse Test MUST be performed to ensure the door reverses on contact with a 1-1/2”... -
Page 20: Force Adjustment
Force Adjustment WARNING To prevent SERIOUS INJURY or DEATH from improper Force Adjustment: - DO NOT adjust force to compensate for binding or sticking of the garage door. Call a qualified garage door service technician to make necessary adjustments in case of binding. - DO NOT increase the force beyond minimum force required for closing the door. -
Page 21: Final Adjustment And Testing
Final Adjustments and Testing WARNING To prevent SERIOUS INJURY or DEATH from a closing garage door: - The Safety Reversal Test MUST be conducted ONCE A MONTH. - NO ONE should cross the path of moving door during operation and/or testing. - If either Force or Travel limit adjustment is made, the other adjustment may also needed. -
Page 22: Programming Remote Controls
Programming Remote Controls WARNING To Prevent SERIOUS INJURY or DEATH: - Keep Remote Control and battery out of reach of children. - NEVER permit children to access the Push Button nor Remote Controls. - Operate the door ONLY when it is properly adjusted, and there are no obstructions present. - ALWAYS keep a moving door in sight until completely closed. -
Page 23: Operating The Opener
Operating the Opener WARNING To Prevent SERIOUS INJURY or DEATH: WARNING - READ AND FOLLOW ALL INSTRUCTIONS AND S IN THE OWNER’S MANUAL AND LABELS - Keep Remote Control and battery out of reach of children. - NEVER permit children to access the Push Button Remote Controls. - Operate the door ONLY when it is properly adjusted, and there are no obstructions and is in clear sight. -
Page 24: Operating The Opener
Operating the Opener Door Status vs. Activation Activation using Push Button / Door status Remote Control Door at fully open / close position Door will move to fully close / open position Door is closing Door will reverse Door is opening Door will stop Door is stopped as intended in partially open position Close... -
Page 25: Maintenance
Maintenance Schedule Maintenance Door balance test, refer to page 4. Once a month Safety reverse test, refer to page 19. Twice a year Check chain tension ( refer to page 5 for adjustment if necessary). - Limit and Force adjustment may be necessary due to weather conditions. Refer to pages 17-19 for adjustment. -
Page 26: Installation And Accessory Parts
Repair Parts Installation Parts Item Part No. Name / Description GUAT-027 Header Bracket GUAT-022 Door Bracket Hardware Bag GUAT-023 (Installation hardware shown on P.3) GUAT-024 Curved Door Arm GUAT-025 Straight Door Arm GUAT-026 Emergency Release Handle & Rope Accessories Item Part No. -
Page 27: Opener Assembly Parts
Opener Assembly Parts Limit System Assembly Green Open Limit Contact Screw Blue Green Orange Gear Center limit Contact Close limit Contact Screw Item Part No. Name / Description GUAT-301 Sprocket and gear assembly GUAT-302 Chassis GUAT-303 Lamp plate GUAT-304 Light Lens GUAT-305 Capacitor GUAT-306... -
Page 28: Warranty
Your operator has been installed by a professional installation specialist. If service information is required please contact the installing company or your local Guardian dealer. Look for your Guardian dealer online, in the yellow pages or call our service number for a dealer near you.
