Shenzhen Linshang Technology LS210 User Manual

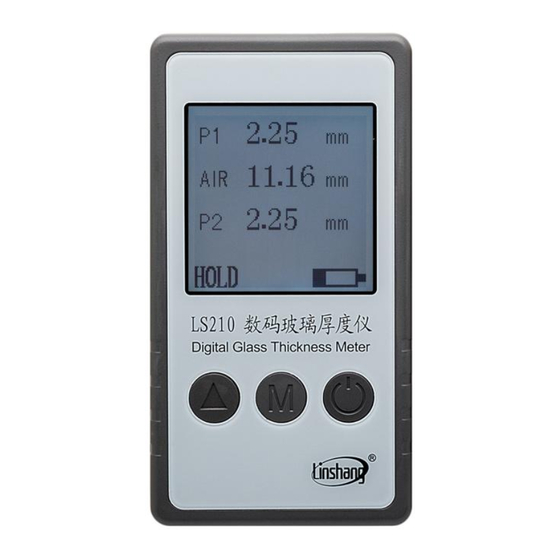

LS210 Digital Glass Thickness Meter
LS210 digital glass thickness Meter makes use of optical reflection principle to measure
the thickness of the glass surface on one side. It is especially applicable for occasions
where general measuring tools including scales and vernier callipers are impossible or not
easy to measure. As for insulating laminated glass, the Meter can measure thickness of
two layers of glass and the middle layer of air at the same time. The Meter applies CCD
detection, with LCD display. It is easy to operate and quick and reliable in measuring.It is
protected by the patent with the patent No.: 201220327620.2.

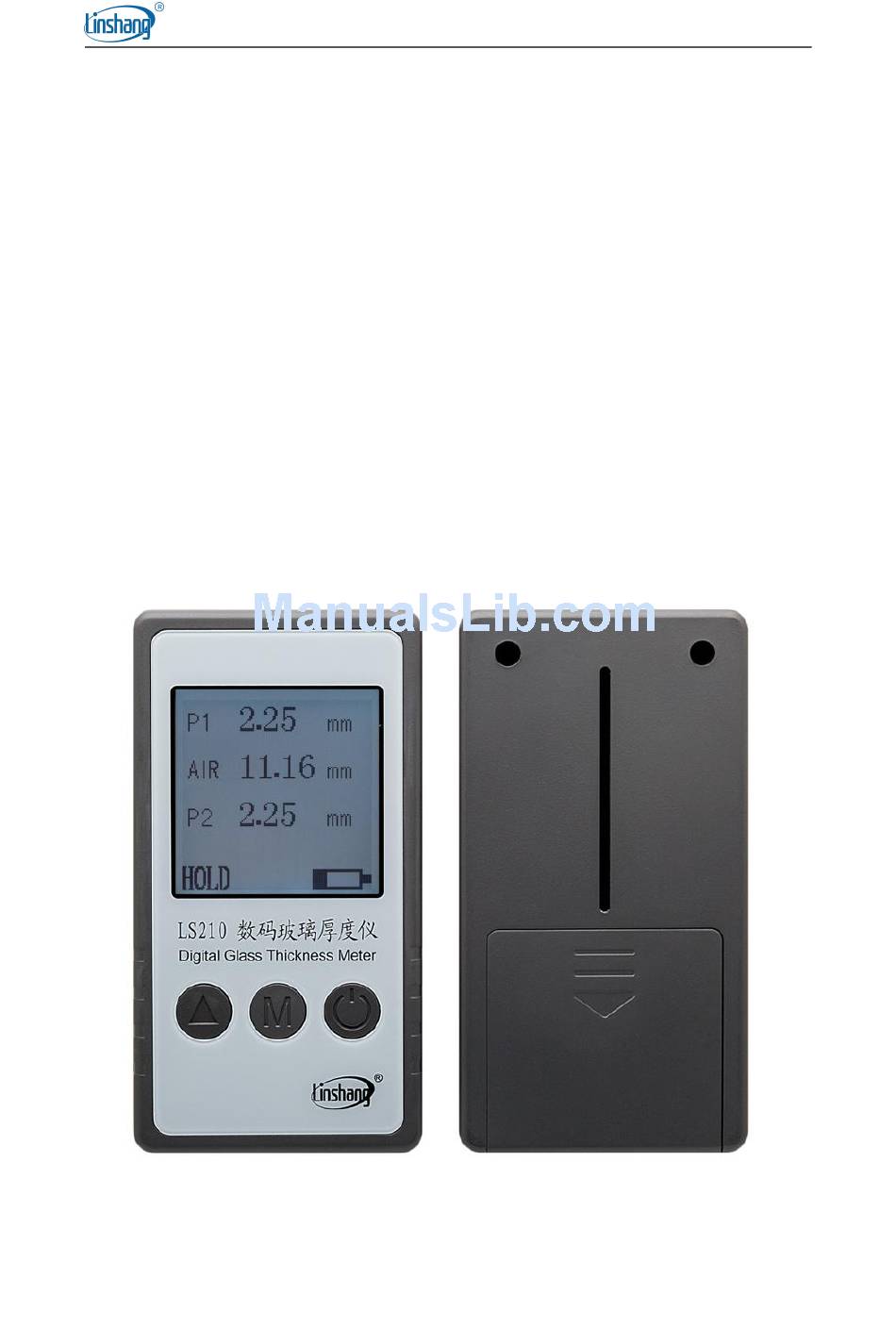

I: LS210 Structure and Parameter

1．Dimension: 130mm× 70mm × 28mm（L× W× H）
2．weight: 200g
3．Measuring accuracy: ±0.2mm
4．Range: 60mm of glass thickness, 35mm of air space
5．Power Supply: 4 AAA alkaline dry batteries

II: Button Operations

1．Unit settings
