HV301/HV301G
www.trimble.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HV301 and is the answer not in the manual?

Questions and answers

Summary of Contents for Spectra Precision Laser HV301

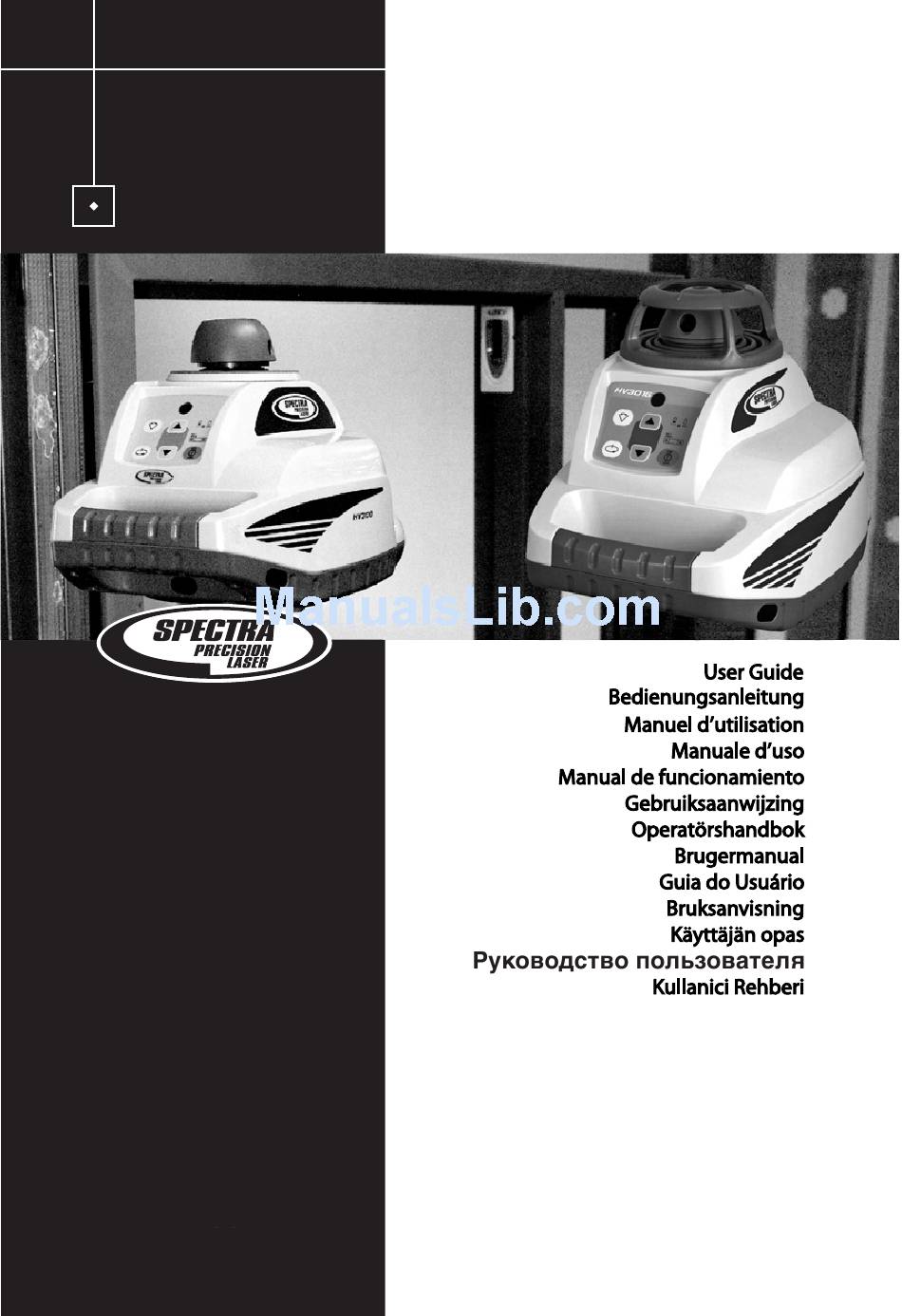

  • Page 1 HV301/HV301G www.trimble.com...
  • Page 4 Part Number Q104132 (03/09) • Printed in Germany...

  • Page 5: Table Of Contents

    • Do not remove warning labels from the unit. • The laser is subject to class 3R (< 5mW, 600 ... 680nm - HV301; 532 ... 545nm - HV301G). • Never look into the laser beam or direct it to the eyes of other people.

  • Page 6: Components

    When pressing the buttons on the keypad, the unit may temporarily become out of level due to its high accuracy. The motor will not rotate until it has self-leveled again. Select the highest rotation speed (600 rpm) for use with an electronic detector (HV301). Pointing mode When using the pointing mode, the laser visibility will be at its highest because the entire laser energy is focused on one point.

  • Page 7: Line/Scanning Mode

    Line/scanning mode By pressing and releasing the scan size button 2, the unit is set to scan mode. Rotation mode is stopped. The unit starts at an opening angle of approx. 8 degrees. Pressing the button again increases the angle to approx.

  • Page 8: Operating Examples

    Now, place the unit near wall B with the plus-X-axis pointing towards wall B. After the unit is level, mark the height of the laser spot at the centre of the beam at wall B. Turn the entire unit 180°, let it self-level and mark the center of the laser spot at wall A.

  • Page 9: Adjusting In Parallel

    Adjusting in Parallel In order to measure irregularities, create right angles, align partitions in right angles or to mark vertical lines, the direct beam (plumb beam) has to be adjusted parallel which means the laser beam has to be placed in the same offset distance to a wall or any other reference line.

  • Page 10: Power Supply

    Rechargeable batteries permit an operating time (at 21° Celsius) of appr. 40 hours -HV301; 18 hours - HV301G in rotation mode. Alkaline batteries (AIMn) permit an operating time of appr. 90 hours - HV301; 45 hours - HV301G in rotation mode. The following factors reduce the operating time: •...

  • Page 11: Warranty

    3) along the axis DECLARATION OF CONFORMITY Trimble Kaiserslautern GmbH declare under our sole responsibility that the product HV301/HV301G to which this declaration relates is in conformity with the following standards EN 61000-4-2, 1994; EN 55022, 1994; EN 61000-4-3, 1997 following the provisions of directive Electromagnetic compatibility 89/336/EEC.

This manual is also suitable for:

Hv301g
