1.6.1. Antenna module

The antenna module comprises a receiver-
transmitter unit, a control-display unit, and an aerial,
all of which are assembled on a single platform
and incorporated in a single body. The antenna is
mounted at the end of a telescopic arm by way of a
hinge joint that allows adjusting the incline within
the vertical plane along the rod's axis, as shown in
Fig. 3. To change the incline, unlock the clamp by
turning its handle counter-clockwise, as shown in
Fig. 3, then adjust and lock by turning the clamp
handle in the clockwise direction.
Do not try to change the antenna incline with the clamp locked: you may break the hinge
joint!

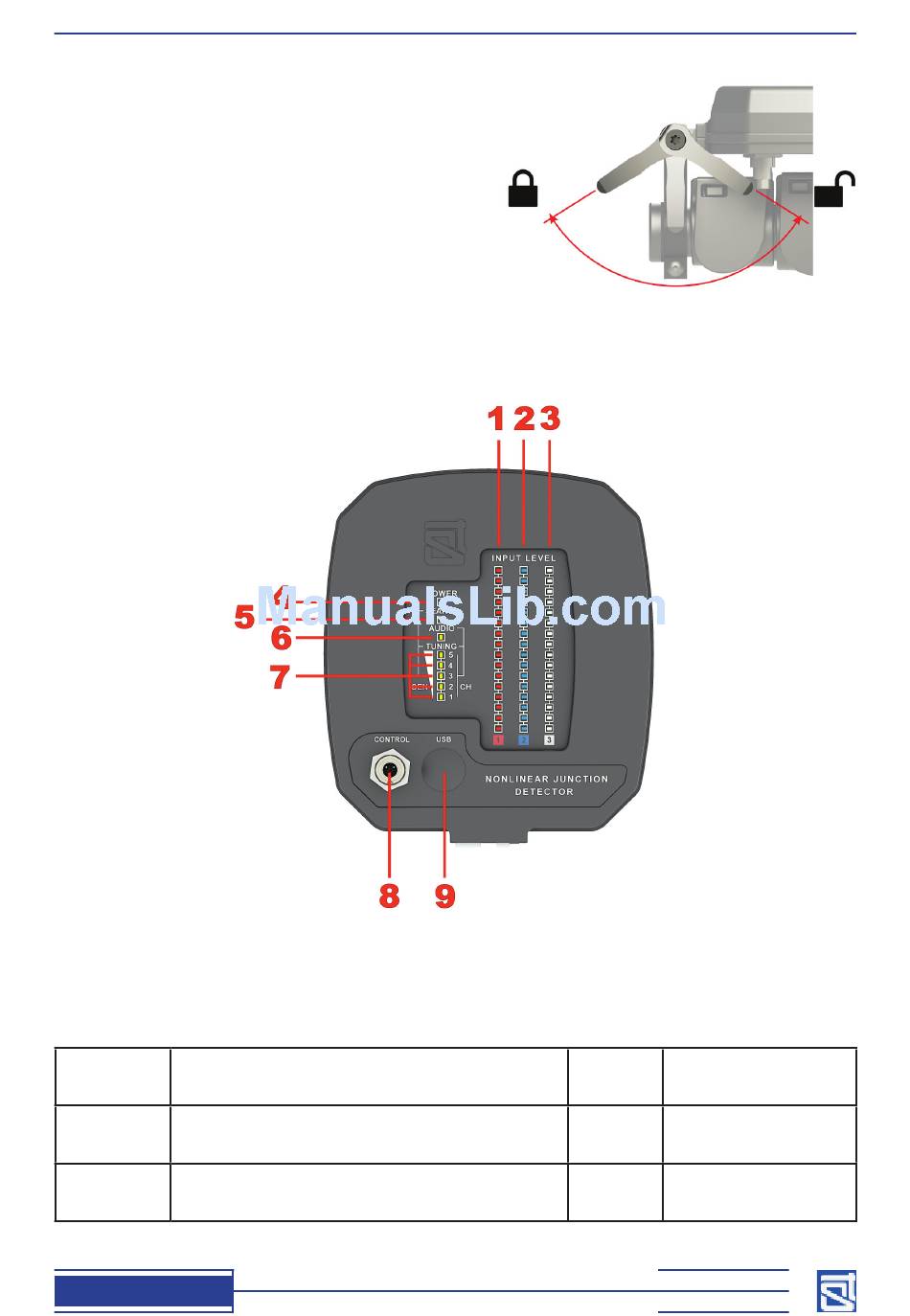

On the antenna surface facing the operator, there are an indicator panel, a socket for the
power-and-control cable, and a USB port for computer connection (Fig. 4).
The numbers in Fig. 4 stand for the following:
# in Fig. 4
1 16-segment led gauge of threat-type response
levels
2 16-segment led gauge of MOM-type
response levels
26
OPERATING MANUAL
Fig. 4
description
Fig. 3
colour subscript on
indicator panel
red 1
blue 2
