Deltronic Security TT-2000 Ticket Eater User Manual

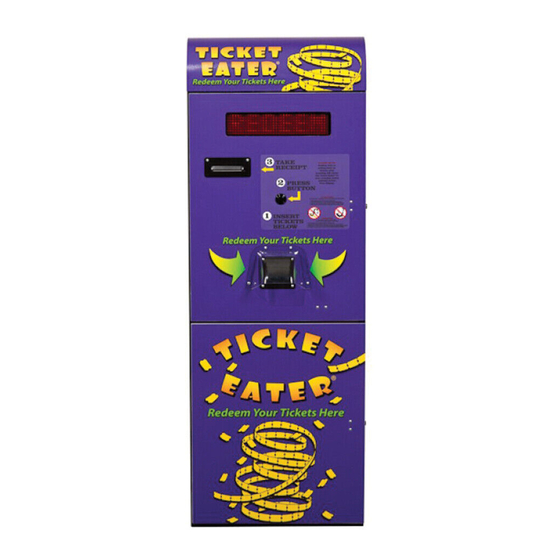

Ticket eater with ap-100 logic board

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

TT-2000&D2000

Ticket Eater

with

™

AP-100 Logic Board

TT-2000 Ticket Eater™ by Deltronic Labs

February 2013

Table of Contents

Need help?

Do you have a question about the TT-2000 Ticket Eater and is the answer not in the manual?

Questions and answers

Summary of Contents for Deltronic Security TT-2000 Ticket Eater

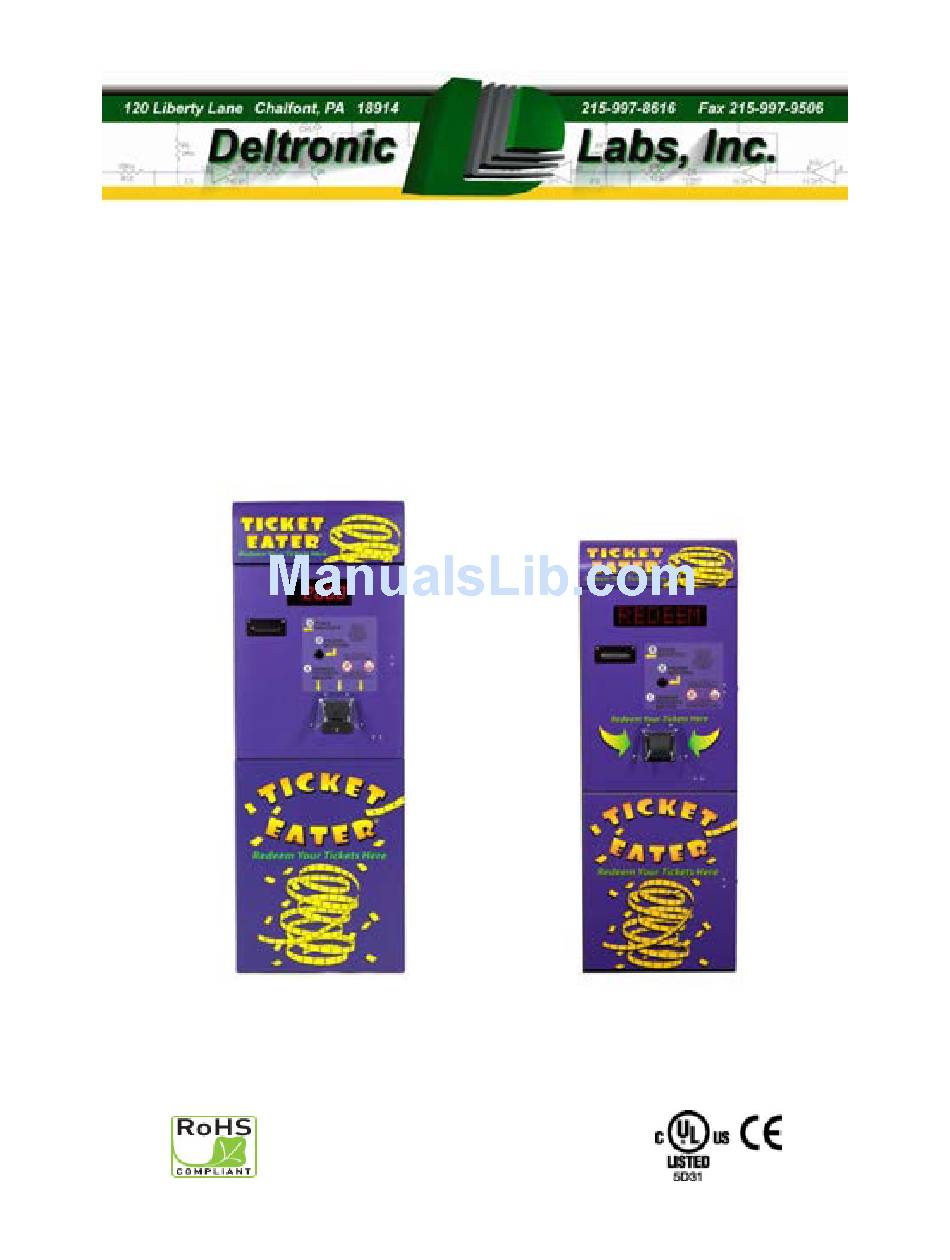

Page 1 TT-2000&D2000 Ticket Eater with ™ AP-100 Logic Board TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 2: Table Of Contents
Trouble-Shooting ..............21 Mechanical Drawings ............... 23 Sensor Boards ................30 Electrical Schematics ..............33 Warranty Information .............. 41 NOTE: TICKET EATER™ MANAGER SOFTWARE IS SOLD SEPARATELY. PLEASE CALL 215-997-8616 TO ORDER. TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 3: Initial Setup
Initial Setup This manual is for the TT-2000 Ticket Eater™ with an AP-100 logic board. Do not use this manual if you have an earlier version logic board. Earlier version boards lack a USB connector and are not labeled “AP100”.
Page 4: Handling Messages On The Door Display
3. Data Send Error – Call for Help Problems with the card swipe system or the communication between the card swipe system and the logic board will cause this message. Fix the problem and re-start the Ticket Eater. TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 5: Dl Ticket Eater Manager Software
(circled in white) has two buttons for opening and saving configuration files, two buttons for transferring configurations between the software and the Ticket Eater, and five buttons for controlling the Ticket Eater. TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 6 Use the Upload New Firmware command on the Firmware menu to install new programming in the ticket eater logic board. You should do this only when instructed to do so by Deltronic Labs tech support. TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 7: Changing Options Without Software
Group 99 0 Option Number Function Values Year 0 to 99 Month 1 to 12 Date 1 to 31 1 to 7(Sunday to Saturday) Hour 0 to 23 Minute 0 to 59 TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 8 2 = Full only falling into the trash). 3 = Anti-cheat only Bucket capacity (in 1000’s of tickets) 1 to 99 Full Bucket Sensor mounted on Ticket Chute Cover TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 9 3. Feed the Ticket Eater a strip of seven tickets. 4. After reading the tickets the ticket eater will display a series of numbers which represent the barcode pattern. (If these numbers are all zeros, the reading failed.) TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 10 99 5, the display continues to show 99 5, but it blinks. At this point you can press the red button to clear the audit counters, or the black button to cancel clearing. Group 99 6 exits the options mode. TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 11: Performing Functions Without Software
Increase the function number Decrease the function number Select the function Function Action Exit the function mode Print a duplicate receipt Print an audit report Reset the bucket meter Print an options report TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 12: Maintenance Checklist
Place the Rear Idler Roller (the one closest to the cutter) into its slots in the side plates. c. Let the Front Idler Roller Shaft drop into its slots in the side plates. TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 13 5. Check that the Cutter Blade is tight on its shaft. The shaft has a flat. Tighten the cutter’s set screw against the flat. 6. Check the Cutter Blade for a build-up of dirt or adhesive from the paper. Clean with an alcohol swab or solvent. TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 14 6 inches (15 cm) of clearance. 11. If you are getting a message on the display instead of a ticket count or the snake mode, refer to the section on “Handling Messages on the Door Display”. TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 15: Blade Adjustment & Replacement
8. Re-install the cutter assembly in the machine. Make sure that it is seated all the way down so that its gear meshes correctly with the gear on the guide housing assembly. TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 16 6. Flip the blade around to use the other edge, or use a new blade. Install the blade being careful not to get the bevel backwards. The wider side of the blade should be against the frame. 7. Follow the instructions on the previous page to adjust the blade. TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 17: Printers And Loading Paper
(circled in photo). Please refer to the printer manual for further instruction on printer care and functions. Refer to the next page for paper loading instructions. TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 18 TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 19: Ticket Specifications
The barcode background color should not be a dark color such as dark brown, dark blue, dark gray, etc. Keep the area between barcodes as clear of markings as possible. A light red sequence number is permitted. No other color is allowed. TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 20: Diagnostic Leds
On when middle rear sensor sees ticket BCR-1000 Rev. 5 LED 5 Ticket detected On when left rear sensor sees ticket BCR-1000 Rev. 5 LED 6 Ticket detected On when right rear sensor sees ticket TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 21: Trouble-Shooting
Does the motor run when a ticket is 4. Check the connection between inserted? the driver board and the motor. 5. Check for dust on the front sensor. 6. Check the position of the front sensor. TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 22 4. Check the roller spring shape and tension (see mechanical drawings). Make sure paper is loaded properly. Print receipt okay? Note that thermal paper only prints on one side. It will be blank if loaded backwards. TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 23: Mechanical Drawings
Mechanical Drawings TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 24 TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 25 TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 26 TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 27 TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 28 TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 29 TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 30: Sensor Boards
Sensor Boards TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 31 Holes-only operation is intended for emergency situations only. Note that the logic board options must also be changed to match the jumpers. Version 5 BCR1000 boards can not be configured as holes-only boards. TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 32 On and off as it sees ticket and barcode Middle Rear On when sees ticket Rear Left On when sees ticket Rear Right On when sees ticket Flashes on for error or cheating TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 33: Electrical Schematics
Electrical Schematics TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 34 TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 35 TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 36 TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 37 TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 38 TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 39 TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 40 TT-2000 Ticket Eater™ by Deltronic Labs February 2013...
Page 41: Warranty Information
Warranties are as follows: Electronic Components (boards, displays, power supplies, etc.) – One year warranty*. Mechanical Parts & Assemblies – 90 Day Warranty*. *Please note that the warranty start date is the actual ship date. TT-2000 Ticket Eater™ by Deltronic Labs February 2013...

This manual is also suitable for:

Tt-d2000 ticket eater
