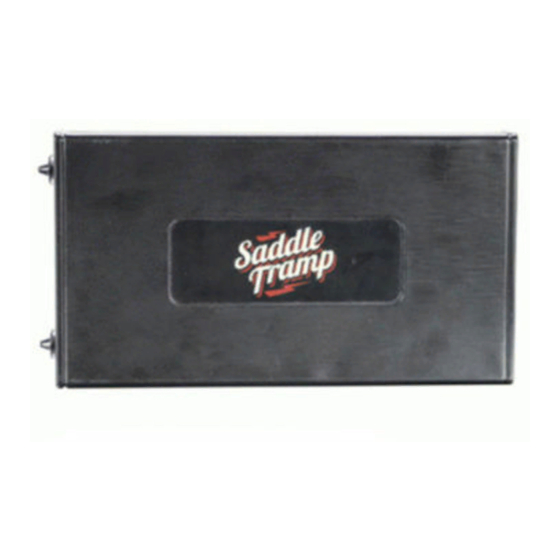

Harley Davidson Bluetooth Audio
Streaming Interface 2006-2013
• Adds Bluetooth audio streaming to the factory radio
• Can be operated with the handlebar controls
• Will play/pause with ignition on/off
• Will show up on the factory radio as HDBT
• BT-HD01 interface • BT-HD01 harness • 4' Waterproof USB cable
HARLEY DAVIDSON (with Advanced Radio)
Electra Glide
• Wire cutter • Crimp tool • Solder gun • Tape • Torx driver
• Connectors (example: butt-connectors, bell caps, etc.)
METRA. The World's best kits.
Installation instructions for part BT-HD01
BT-HD01
FEATURES
INTERFACE COMPONENTS
APPLICATIONS
Street Glide
2006-2013
Road Glide
TOOLS REQUIRED
metraonline.com
™
Table of Contents
Pre-Installation .......................................................2
Fairing Disassembly ........................................... 3-4
Connections to be made .........................................5
Installing the BT-HD01 ............................................6
Pairing the BT-HD01 ...............................................6
Operation.................................................................6
2006-2013
2006-2013
CAUTION!
All accessories and switches must be connected before
cycling the ignition. Also, do not remove the factory radio with the key
in the on position, or while the vehicle is running.
© COPYRIGHT 2004-2016 METRA ELECTRONICS CORPORATION
