- Page 1 Medical device of NPP “ELIS” DETA●MED electromagnetic therapy DETA AP-20 Passport Modern scientific views on infection control Unique medical methods...
- Page 2 © NPP “ELIS” 2014 All rights reserved. It is not allowed to produce partial or complete photomechanical reproduction and recording on electronic media Printed in Moscow...
-
Page 3: Table Of Contents
List of content 1. Introduction 2. Purpose 3. The main technical characteristics of the device 4. Scope of delivery 5. Device details 6. Pre-starting procedures 7. Device setting 8. Working sequence 9. Directions for use of device 10. Contraindications to application 11. -
Page 4: Introduction
The device is designed for individual use: In a clinical doctors’ practice of various specialties. In an ambulant therapy. Conformity declaration of RОSS RU.АYa.46.D63725 Registration certificate № FSR 2009/05641 Name of device at the time of order: device “DETA-AP-20"... -
Page 5: Purpose
2. Purpose Medical Apparatus “DETA-AP-20" is designed for exogenous bioresonance therapy of various diseases by impact on an organism by electromagnetic low-energy radiation. The device works in the frequency range, which allows conducting therapy of infectious and infectious-associated diseases according to the programs which are specially developed for this device. -
Page 6: The Main Technical Characteristics Of The Device
Attention! Continuous working time when using batteries is determined by the capacity of the battery. 4. Scope of delivery 4.1 Medical device “DETA-AP-20"………………………………………………..1 4.2 Battery charger 220V/50Hz – 5V/1A……………………………………………1 4.3 Wire for connection the charger to the device…………………………………...1 4.4 Fabric lace on a neck...…………………………………………………………..1 4.5 Passport……………………………………………………………………..1... -
Page 7: Device Details

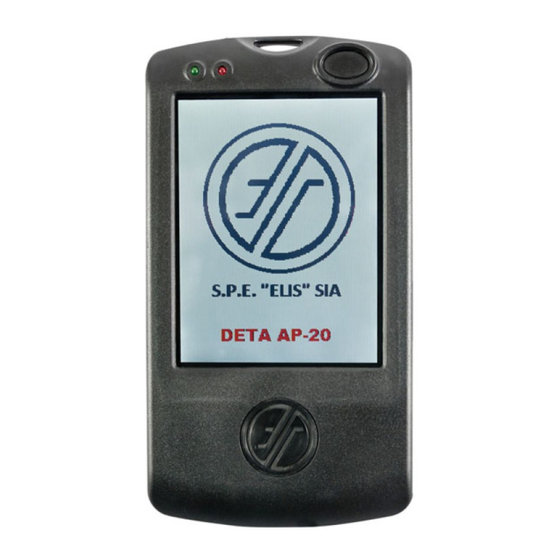

5. Device details Front panel – Picture 1 The green light-emitting diode flashing during the treatment program The red light-emitting diode indicates a full charge the battery and charging process Power button of device Touch screen display Picture 1 Side panel – Picture 2 Connector for charging and device programming Picture 2... -
Page 8: Pre-Starting Procedures
6. Pre-starting procedures 6.1 Charge your device with the use of battery charger (full charge will require 3-4 hours) 6.2 Connect the charger with cable (USB connector) supplied in the kit (see Picture Picture 3 6.3 Connect the device to the wire (mini-USB connector) (Picture 4) 6.4 Plug the charger into a wall outlet 220V. - Page 9 Attention! A burning red light-emitting diode points to full battery discharge “LOW BATTERY” (Picture 5). At the same time the display shows and the device is turned off. For further work it is necessary to charge the battery by connecting the charger.
-
Page 10: Device Setting
7. Device setting 7.1 Turn on the device by pressing the button (Picture 7) and hold it for 3 seconds (protection against accidental switching on/off). The single sound signal has to sound. The display shows the emblem of NPP "ELIS" and the name of the device. Picture 7 7.2 Press the button again. - Page 11 Time setting 16 h 25 min Date setting 07 d 09 m 2014 y Picture 10 Picture 11 7.3.1 Set the date and time. Choose "Time/Date". Menu will be displayed (Picture 10). Set the time, choosing values by arrows and press for date setting.
- Page 12 Picture 12 Picture 13 7.3.3 Set the time to turn the device off. Press "Turn off the device" for that. Menu will be displayed (Picture12). Choose a numeric value indicated in the list. This time will be given to the choice and start treatment program. If the program has not been selected in this period, the device turns off.
-
Page 13: Working Sequence
8. Working sequence 8.1 Turn on the device by pressing the button (Picture 14) and hold it for 3 seconds (protection against accidental switching on/off). The single sound signal has to sound. The display shows the emblem of NPP "ELIS". Picture 14 8.2 Press the button again. - Page 14 8.4 Button should be pressed to start the selected program. The device starts to count the runtime of a treatment program in reverse order, and it turns of counting to zero (Picture 17). 8.5 The device turns off the screen and the green light-emitting diode is blinking during treatment program (Picture 14).
-
Page 15: Directions For Use Of Device
of the device closer to the localization place of abnormal focus. The device range of operation is up to 0.5 m. The device can be hung on a lace, which is in the kit or to put in a breast pocket. Device using. -
Page 16: Contraindications To Application
The device must be protected from moisture ingress and effects of the active chemicals. 13. Warranty liability The manufacturer guarantees the compliance of medical device “DETA-AP-20" to technical characteristics at observance by the consumer of service regulations, transportations and storages. - Page 17 During the warranty period the owner is entitled to a free repair on presentation of a warranty certificate. The warranty repairs carried out on the territory of the manufacturer. The delivery failed device is carried out at the expense of the buyer. No claim admitted and warranty repairs are not made without a warranty certificate, approval certificate and/or when there is a violation of device seal safety.
- Page 18 Approval certificate Device “DETA-AP-20" with Serial number __________________ made and accepted in accordance with the requirements of the state standards, existing technical documentation and is ready for operation Mark of technical control LS_________________________________________________________________ (Signature) (Clarification of signature) “____”_________201_ (release date)
- Page 19 Ltd. NPP “ELIS”, 124460 Russia, Moscow, Zelenograd, Proezd 4806, house 4, building 2, office 401 Tel.: +7 (495) 640-19-60 The warranty certificate No.1 of device “DETA-AP-20” Serial No._______________________________________________ It is sold by shop__________________________________________ (Name of trade organization) _______________________________________________________ Shop’s seal______________________________________________...
- Page 20 Ltd. NPP “ELIS”, 124460 Russia, Moscow, Zelenograd, Proezd 4806, house 4, building 2, office 401 Tel.: +7 (495) 640-19-60 The warranty certificate No.2 of device “DETA-AP-20” Serial No._______________________________________________ It is sold by shop__________________________________________ (Name of trade organization) _______________________________________________________ Shop’s seal______________________________________________...
- Page 21 Ltd. NPP “ELIS”, 124460 Russia, Moscow, Zelenograd, Proezd 4806, house 4, building 2, office 401 Tel.: +7 (495) 640-19-60 The warranty certificate No.3 of device “DETA-AP-20” Serial No._______________________________________________ It is sold by shop__________________________________________ (Name of trade organization) _______________________________________________________ Shop’s seal______________________________________________...
- Page 22 NPP “ELIS” DETA●MED Medicine of the future – today Scientific Industrial Enterprise “ELIS” with the support of the International Medical Association “DETA-MED” Ltd. NPP “ELIS”, 124460 Russia, Moscow, Zelenograd, Proezd 4806, house 4, building 2, office 401 e-mail: deta@npp-elis.ru Tel.: +7 (495) 640-19-60 www.npp-elis.ru, www.deta-med.info...
