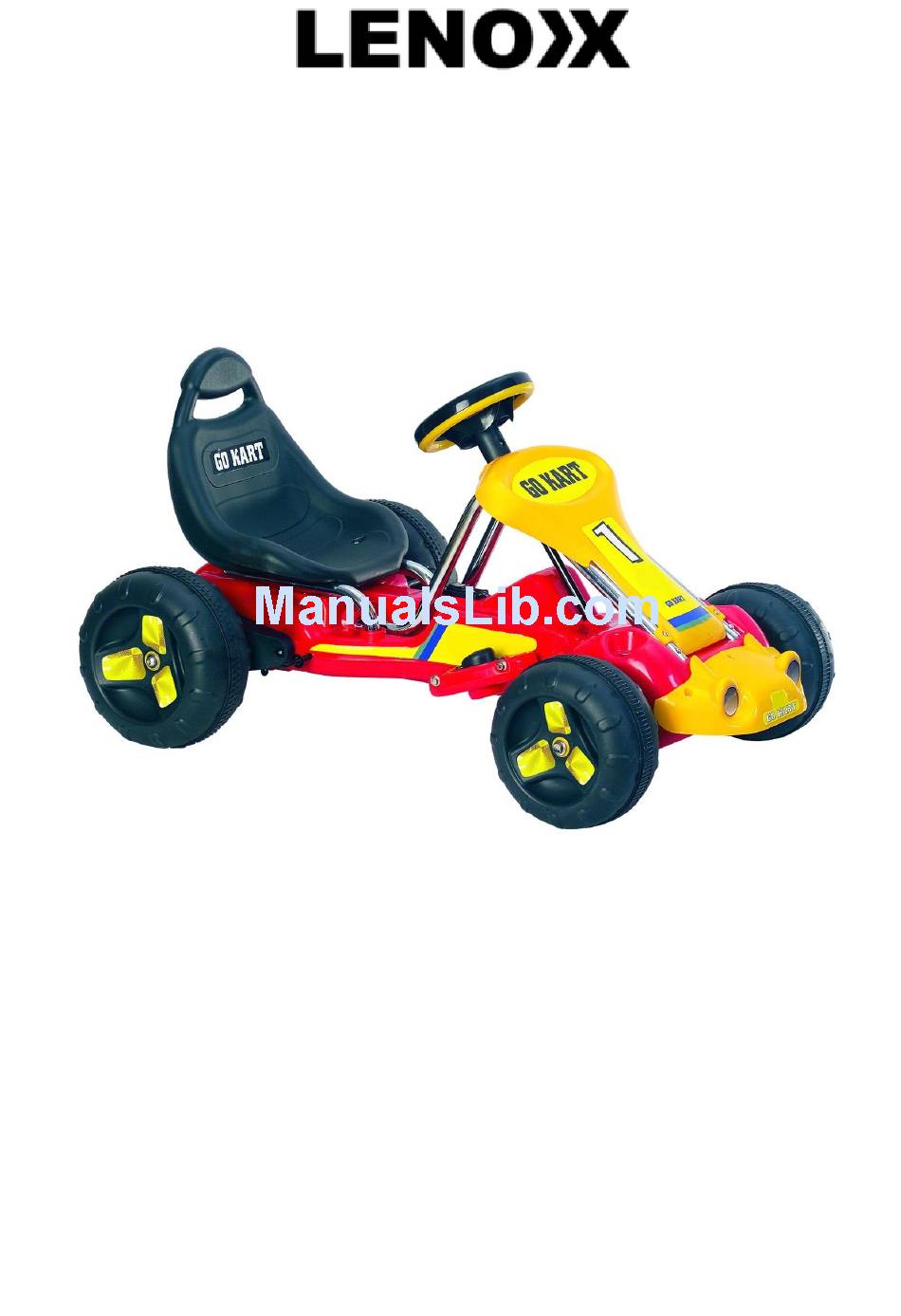

CHILDREN'S RIDE ON CAR
OPERATION INSTRUCTIONS
Please read this manual in detail before using
Model no: GK260
Owner's Manual
with Assembly Instructions
Styles and color may vary.
The owner's manual contains important safety information as well as assembly. Please read the
assembly manual carefully before operating
The Ride-on Car must be assembled by an adult only.
Keep the package away from children and dispose of properly before use.
Always wear a helmet when riding
Keep this manual for future reference.
Advertisement
Summary of Contents for Lenoxx GK260
- Page 1 CHILDREN’S RIDE ON CAR OPERATION INSTRUCTIONS Please read this manual in detail before using Model no: GK260 Owner’s Manual with Assembly Instructions Styles and color may vary. The owner’s manual contains important safety information as well as assembly. Please read the assembly manual carefully before operating The Ride-on Car must be assembled by an adult only.
- Page 2 WARNING Adult supervision is required. Do not drive anywhere dangerous including slopes with more than 10 degrees, streets, next to bodies of water and away from other obstacles. The driver must sit on the seat to drive. Read the instruction manual and acknowledge it before use. 1.
- Page 3 Vehicle*1 Seat*1 Front panel*1 Direction*1 Front Bumper*1 The car body stand tube*2 (left and right) Steering Wheel*1 Panel Sticker*1 Charger*1 Screw Packing Φ13.7Washer*1 Φ4*10machine screw*4 Φ5*35 machine screw *8 Φ5*50 machine screw *2...
- Page 4 1 Vehicle Body 2 Direction Rod 3 Front Bumper 4 Front panel 5 Panel Sticker 6 The car body stand tube 7 Steering Wheel 8 seat 9 13.7 Washer 10 Machine scew 11 Nut...
-
Page 5: Battery Information
FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL WARNINGS AND ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE. • ADULT ASSEMBLY REQUIRED. The product contains small parts, which are for adult assembly only. Keep children away when assembling. • Always remove protective material and poly bags and dispose before assembly. •... - Page 6 Assemble the car body stand tube Secure car body stand tube to car body with 6 screws. Notice: Left and Right Assemble Direction Rod&Front Panel&Panel sticker First insert washer on to direction rod,then insert direction rod from under body to car body according to picture,secure front panel to car stand tube.Last,place sticker on front panel.
- Page 7 Assembly of steering wheel： First, take out the machine screw from the steering wheel; Then insert the steering wheel into steering column, and final tighten the nut. Assembly of front bumper As per picture, please take out three 4*12 screws from the car body and insert the front bumper to the car body and tighten the screws.
- Page 8 Plug the Red fuse connector into the terminal on battery. 1. Two batteries under the seat as shown above. 2. Plug the Red fuse connector into the terminal on battery.
- Page 9 PREVENT INJURIES AND DEATHS: • NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS REQUIRED. Always keep child in view when child is in vehicle. • This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.
- Page 10 1. Forward/backward switch: Changes the direction that vehicle moves from forward to reverse. ● To move the car forward, rock the switch to “forward” position. ● To move the car backward, rock the switch to “reverse” position. 2. Pedal switch: Applies power (speed) to the vehicle. ●...
- Page 11 • The POWER SWITCH must be turned in OFF position when charging. • Before the first use, you should charge the battery for 4-6 hours. Do not recharge the battery for more than 10 hours to avoid overheating the charger. •...
- Page 12 battery. Make sure the vehicle is stop! BATTERY MAGNITUDE OF VOLTAGE BATTERY STATE ≥ 6.6 6V4Ahx1, 6V7Ahx1 The battery is full. 6V10Ahx1 6.5~6.3 The vehicle can work normally. ≤ 6.2 The battery needs to be charge. ≥ 13.2 6V4Ahx2, 12V7Ahx1, The battery is full.
- Page 13 trips repeatedly during normal use, the vehicle may need repair. Contact your distributor please. To avoid losing power, follow these guidelines: ● Do not overload the vehicle. ● Do not tow anything behind the vehicle. ● Do not drive up steep slopes. ●...
- Page 14 Thermal fuse has tripped Reset fuse, see <Fuse> Battery connector or wires are loose Check that the battery connectors are firmly plugged Vehicle does not run into each other. If wires are loose around the motor contact your distributor please. Battery is dead Replace battery, contact your distributor please.
- Page 15 cord, plug, screws are fastening enclosure of other parts and that in the event of such damage, the toy must not be used until that damage had been properly removed. • Make sure the plastic parts of the vehicle are not cracked or broken. •...
