Gem Audio Labs Sculptor User Manual

Disctrete pre-amp with eq and peak limiter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
______________________________________________________________________________________________________________________________

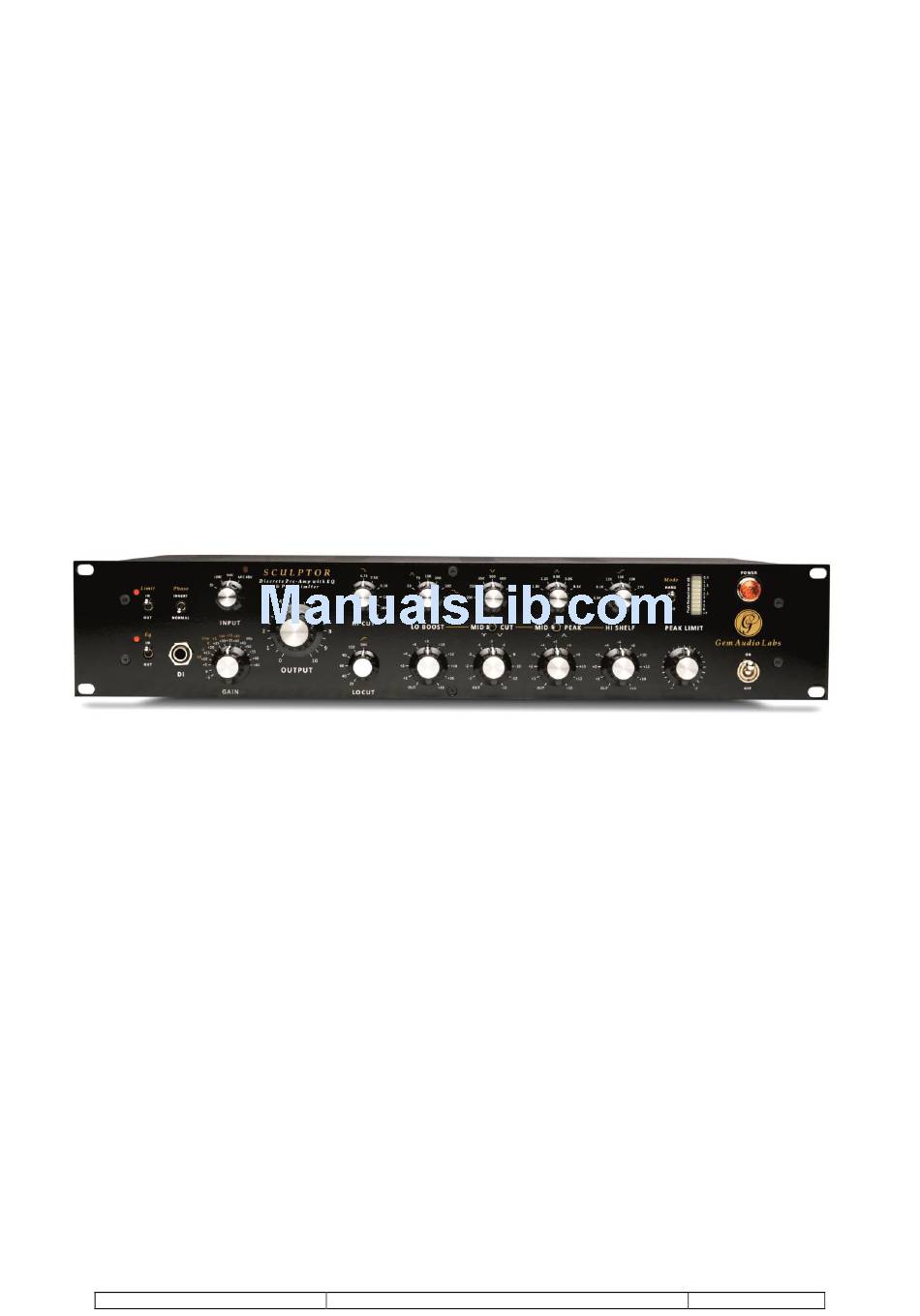

User's Manual
Sculptor
Disctrete Pre-Amp with Eq and Peak Limiter
Gem Audio Labs
Tel. : 00 48 508 377 982
office@gemaudiolabs.com
www.gemaudiolabs.com
Rev.1
Date 17.06.2013
Page 1 / 14
